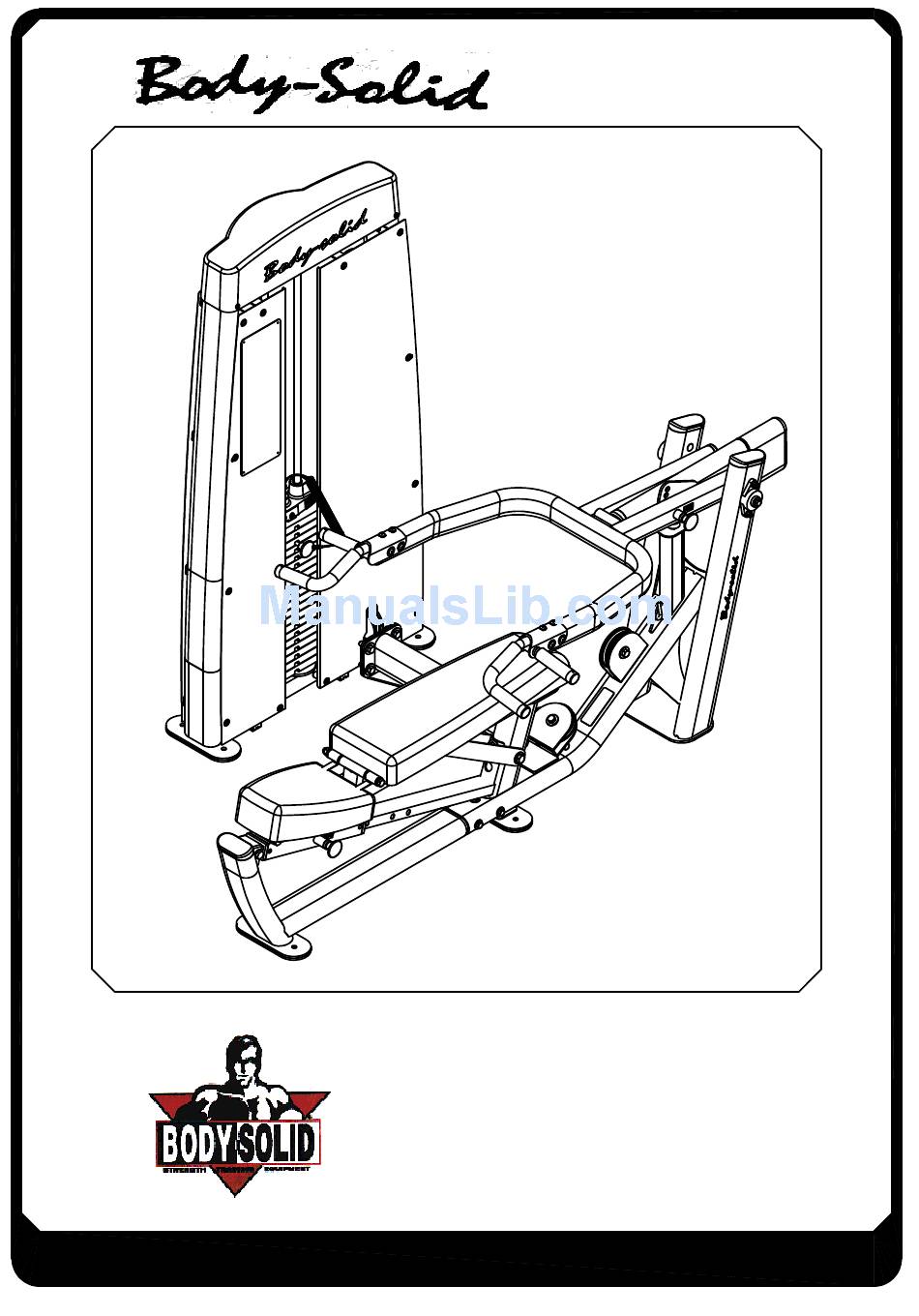

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPRS.2 OWNER'S MANUAL...
- Page 2 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.7 (A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.1 (A5)HEX BOLT 1/2"x2 3/4"L PARTIAL THREAD QTY.1 Page DPRS.2-042007...
- Page 3 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"x4 1/2"L PARTIAL THREAD QTY.1 (A7)HEX BOLT 1/2"x4 3/4"L PARTIAL THREAD QTY.1 (A8)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1 (A9)HEX BOLT 1/2"x7"L PARTIAL THREAD QTY.1 (A10)HEX BOLT 1/2"x8 1/2"L PARTIAL THREAD QTY.1 Page DPRS.2-042007...
- Page 4 DPRS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A12)ROUND ALLEN HEAD 3/8"x3 1/8"L PARTIAL THREAD QTY.4 (A13)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.3 (A14)HEX BOLT 5/16"x2 1/4"L PARTIAL THREAD QTY.4 Page DPRS.2-042007...
- Page 5 (A19)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1 (A20)ELASTIC BOLT QTY.1 Optional Purchase TOP CAP(9211-111) (A17)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 TOP CAP(9211-119) (C12)M4(I.D.)FLAT WASHER 12 QTY.2 "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DPRS.2-062007...
- Page 6 DPRS ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A21)10LB PIN (8250-071) QTY.1 (A23)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20 (A24)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 (A25)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (A26)FIRM SHEATH(8890-046) QTY.1 Page DPRS.2-042007...
- Page 7 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT 1/2" QTY.14 (B2)NYLON LOCK NUT 3/8" QTY.4 (C5)5/16"(I.D.)FLAT WASHER 18 QTY.7 (C6)5/16" SPRING WASHER QTY.7 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.14 (B6)NYLON LOCK NUT 1/2"X8H QTY.1 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.15 (C3)3/8"(I.D.)FLAT WASHER 19 QTY.4 Page DPRS.2-072007...
- Page 8 FRAME HARDWARE ILLUSTRATION (B4)NYLON LOCK NUT 1/2" QTY.4 (C10)3/8" SPRING WASHER QTY.1 (B5)NYLON LOCK NUT 3/8" QTY.1 (C11)M6(I.D.)FLAT WASHER 13 QTY.20 (B6)NYLON LOCK NUT M10 QTY.1 (C13)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C8)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C9)3/8"(I.D.)FLAT WASHER 19 QTY.2 Page DPRS.2-062007...
- Page 9 3/4" SHAFT COLLAR(9211-046)---------------------------------[2PCS] 4" RUBBER DOUNT(9310-017)----------------------------------[2PCS] D10.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS] D11.40X70 FRICTION TAPE(9440-068)------------------------------[2PCS] D12.20X120 FRICTION TAPE(9440-083)----------------------------[2PCS] D13. 117 PULLEY(9213-010B)-----------------------------------------[7PCS] D14.WEIGHT SELECTOR BAR(8210-042B)-------------------------[1PCS] D15.TOP PLATE(8400-006)----------------------------------------------[1PCS] D16.2375mm STEEEL CABLE(FDPRSA)----------------------------[1PCS] D17.2615mm STEEL CABLE(FDPRSB)------------------------------[1PCS] D18.DPRS For DGYM Steel Cable(FDPRSC)-----------------------[1PCS] D19.95X250 RUBBER PAD(9310-061)--------------------------------[1PCS] 2615 2615 2375 Page DPRS.2-042007...
- Page 10 ASSEMBLY INSTRUCTIONS DPRS PARTS ILLUSTRATION SHEET B[1PCS] C[1PCS] A1[1PCS] long F1[1PCS] E1[1PCS] D1[1PCS] long G[1PCS] H[1PCS] I[1PCS] L[1PCS] J[1PCS] M[1PCS] K[1PCS] Page DPRS.2-042007...
- Page 11 ASSEMBLY INSTRUCTIONS DPRS PARTS ILLUSTRATION SHEET Q[2PCS] N[1PCS] O[1PCS] P[1PCS] 8220-136 8510-040 8230-009 6640-001 20X360L T[1PCS] S[1PCS] R[1PCS] 9170-002 9121-056 9111-059 Page DPRS.2-042007...
- Page 12 DPRS ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET V[1PCS] U[1PCS] 8380-048 8380-046 W[1PCS] 8380-047 X[2PCS] 3/4"X1410L Z[2PCS] AG[1PCS] 8313-144 9211-111A AD[9PCS] 8321-040 both side 50.5 AE[1PCS] AA[1PCS] 8321-040 6610-002 one side 50.5 AF[2PCS] 8321-040 AC[1PCS] one side 9440-167 50.5 Page DPRS.2-062007...
- Page 13 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 1 assembled and completed D11 D11 M10X16L HEX BOLT X6 M10 WASHER X6 Page DPRS.2-042007...
- Page 14 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 2 assembled and completed C1 A4 Page DPRS.2-042007...
- Page 15 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed Page DPRS.2-042007...
- Page 16 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 4 assembled and completed B2 C3 M10X16L HEX BOLT X2 M10 WASHER X2 DPRS.2-042007 Page...
- Page 17 ASSEMBLY INSTRUCTIONS DPRS assemble direction Above shows STEP 5 assembled and completed M12X65L ROUND ALLEN HEAD X2 3/8"X1/2" ROUND BOLT X12 3/8" WASHER 19 X4 3/8" WASHER 27 X8 Page DPRS.2-042007...
- Page 18 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 6 assembled and completed Page DPRS.2-042007...
- Page 19 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M10X25L CONE BOLT X8 Page DPRS.2-042007...
- Page 20 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Page DPRS.2-0412007...
- Page 21 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 9 assembled and completed Page DPRS.2-042007...
- Page 22 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 10 assembled and completed Page DPRS.2-072007...
- Page 23 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 11 assembled and completed B6 C2 Page DPRS.2-042007...
- Page 24 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 12 assembled and completed Cable to match illustration WEIGHT STACK CABLE M4 SCREW Selector Bar DETAIL VIEW 16.1 Page DPRS.2-042007...
- Page 25 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 12 assembled and completed M6 WASHER X4 M6X20L ROUND BOLT X4 M6 WASHER M6X12L ROUND BOLT Page DPRS.2-062007...
- Page 26 DPRS ASSEMBLY INSTRUCTIONS DGYM DPRS Page DPRS.2-042007...
- Page 27 DPRS ASSEMBLY INSTRUCTIONS Cable to match illustration Double strength(D9) Cable For DGYM only (D18) Page DPRS.2-042007...
