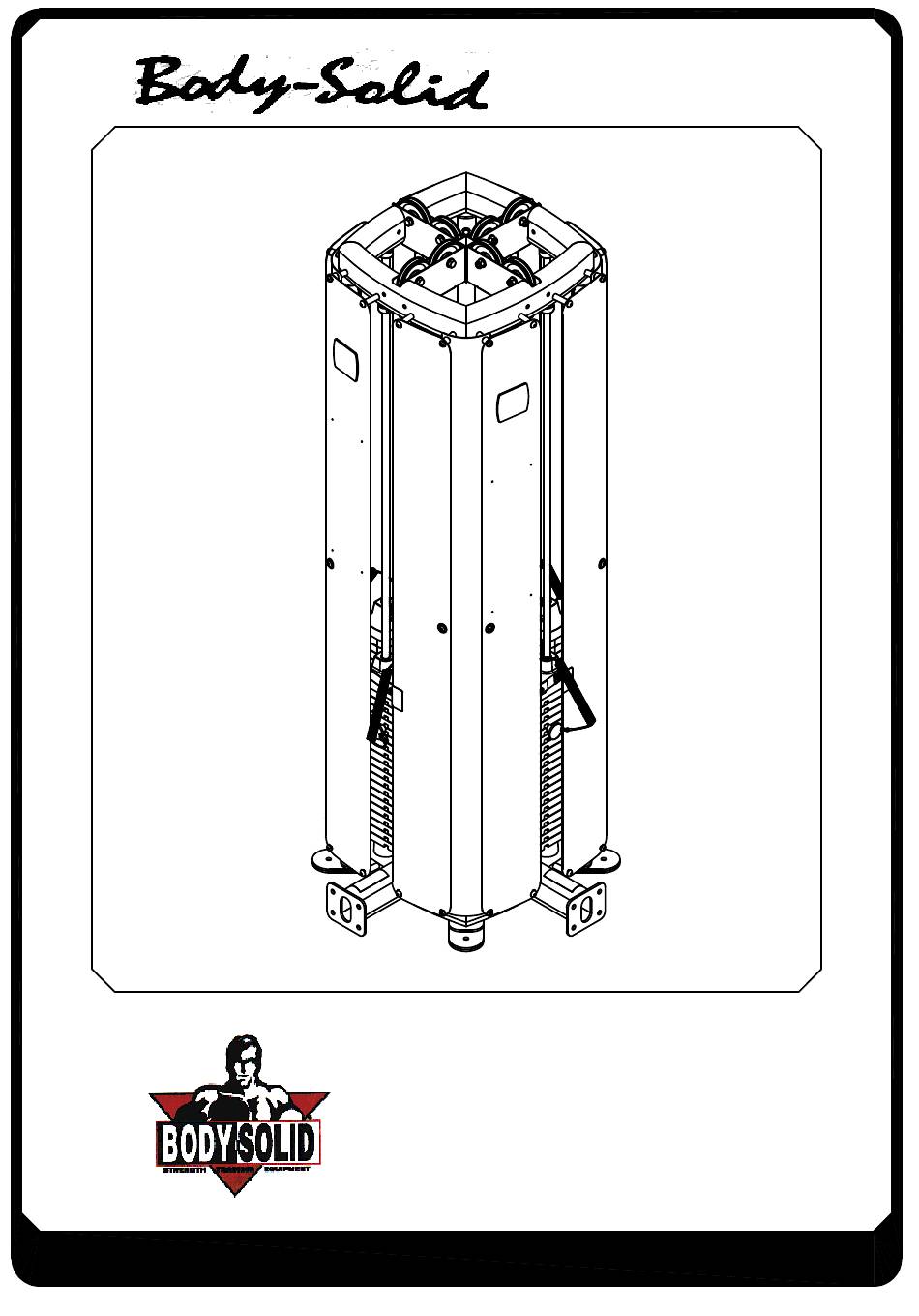

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DGYM.2 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.8 (A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.8 (A3)ROUND ALLEN HEAD 3/8"x2"L PARTIAL THREAD QTY.4 (A4)HEX BOLT 3/8"x3/4"L PARTIAL THREAD QTY.16 (A5)HEX BOLT 5/16"x1 3/4"L PARTIAL THREAD QTY.4 Page DGYM.2-102008...
- Page 5 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)ROUND ALLEN HEAD M10X35L PARTIAL THREAD QTY.8 (A12)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.16 (A13)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.4 (A14)FIRM SHEATH(8890-046) QTY.4 Page DGYM.2-102008...
- Page 6 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A8)ELASTIC BOLT QTY.4 (A9)10LB PIN (8250-071) QTY.4 (A11)IMMOBILE COVER Ø1/2"XØ8.5X21.5L(8690-012) QTY.4 Page DGYM.2-102008...
-
Page 7: Hardware Illustration
(B1)NYLON LOCK NUT 1/2" QTY.16 (C4)5/16"(I.D.)FLAT WASHER 16 QTY.8 (B2)NYLON LOCK NUT 5/16" QTY.4 (B4)NYLON LOCK NUT M10 QTY.8 (C6)M10(I.D.)FLAT WASHER 27 QTY.16 (B5)NYLON LOCK NUT M10 QTY.4 (C7)1/2"(I.D.)FLAT WASHER 25 QTY.32 (C2)M10(I.D.)FLAT CURVED WASHER R30 20 QTY.16 Page DGYM.2-102008... - Page 8 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 3/4"X8L STEEL BUSHING (8110-014)-----------------------[8PCS] 3/4"X19.5L STEEL BUSHING (8110-017)-------------------[24PCS] 3/4" SHAFT COLLAR(9211-046)-------------------------------[8PCS] 20X70L RUBBER DOUNT(9310-049)-----------------[8PCS] D5.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS] 117 PULLEY(9213-010B)-----------------------------------------[16PCS] D8.TOP PLATE(8400-006)----------------------------------------------[4PCS] D9.2040mm STEEL CABLE(FDGYMA)------------------------------[4PCS] D10.WEIGHT SELECTOR BAR(8210-042B)-----------------------[4PCS] 2040 Page DGYM.2-102008...
- Page 9 If you are using the same ProDual unit for multiple stations please call your BodySolid dealer for supplemental cables FDABBB FDLECB 4705 4840 FDBTCB FDPCCC 4490 4900 FDCLPC FDPECC 4350 4490 GDIOTC FDPLSB 8560 3170 3170 FDLATC FDPRSC 7485 3805 3805 Page DGYM.2-102008...
-
Page 10: Red Color
DGYM ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A[1PCS] 6610-005 6610-004 D[4PCS] C[4PCS] 6640-001 6610-006 E[4PCS] F[4PCS] 8380-055 8380-053 Stick to the paper brand G1[4PCS] H[8PCS] 8380-054 5313-Y002 RED COLOR Page DGYM.2-102008... - Page 11 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed Page DGYM.2-102008...
- Page 12 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed Page DGYM.2-102008...
- Page 13 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed Page DGYM.2-102008...
- Page 14 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed Page DGYM.2-102008...
- Page 15 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed Page DGYM.2-102008...
- Page 16 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Page DGYM.2-102008...
- Page 17 DGYM ASSEMBLY INSTRUCTIONS Cable to match illustration Single time of strength Ø10 cable wire head Selector Rod DETAIL VIEW Constitute Dual Machine DPEC, DBTC, DLEC, DABB, DLAT, DPLS, DPCC Page DGYM.2-102008...
- Page 18 DGYM ASSEMBLY INSTRUCTIONS Cable to match illustration DETAIL VIEW DETAIL VIEW Double strength(D9) Ø10 cable wire head Selector Rod DETAIL VIEW Constitute Dual Machine DCLP, DIOT, DPRS Page DGYM.2-102008...
- Page 19 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M10 WASHER X8 M10X35L ROUND BOLT X8 M10X16L ROUND BOLT X8 M10 WASHER X8 M10 WASHER X8 M10X35L ROUND BOLT X8 M10X16L ROUND BOLT X8 M10 WASHER X8 Page DGYM.2-102008...
- Page 20 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Dual exercise charts Page DGYM.2-102008...
- Page 21 WARNING BefoRe INstAllAtIoN Do Not DIsCARD ANY CABle PACKs Your DGYM comes equipped with multiple cable packs. The cable packs included with the DGYM will be used for this installation. Please disregard all cables that have been inserted with the Pro Dual packages. Addendum...
