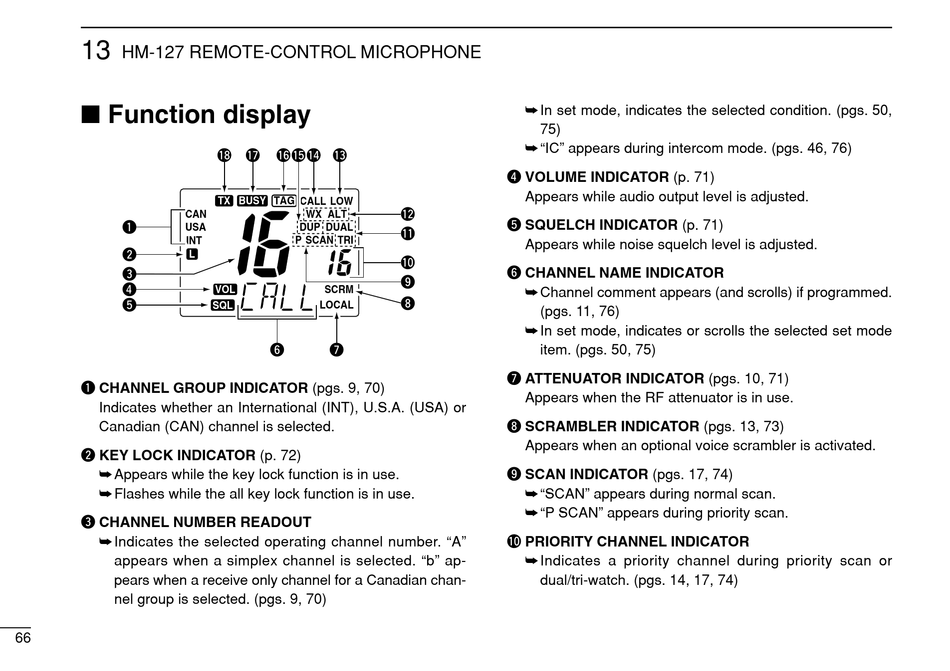

HM-127 REMOTE-CONTROL MICROPHONE

I Function display

CAN
q
USA
INT
w
L
e
r
t
q CHANNEL GROUP INDICATOR (pgs. 9, 70)
Indicates whether an International (INT), U.S.A. (USA) or
Canadian (CAN) channel is selected.
w KEY LOCK INDICATOR (p. 72)
➥ Appears while the key lock function is in use.
➥ Flashes while the all key lock function is in use.
e CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number. "A"
appears when a simplex channel is selected. "b" ap-
pears when a receive only channel for a Canadian chan-
nel group is selected. (pgs. 9, 70)
66
!8 !7 !6 !5 !4 !3
TX BUSY TAG CALL LOW
WX ALT
DUP DUAL
P SCAN TRI
VOL SCRM
SQL LOCAL
y u
➥ In set mode, indicates the selected condition. (pgs. 50,
75)
➥ "IC" appears during intercom mode. (pgs. 46, 76)
r VOLUME INDICATOR (p. 71)
Appears while audio output level is adjusted.
!2
t SQUELCH INDICATOR (p. 71)
!1
Appears while noise squelch level is adjusted.
!0
y CHANNEL NAME INDICATOR
o
➥ Channel comment appears (and scrolls) if programmed.
i
(pgs. 11, 76)
➥ In set mode, indicates or scrolls the selected set mode
item. (pgs. 50, 75)
u ATTENUATOR INDICATOR (pgs. 10, 71)
Appears when the RF attenuator is in use.
i SCRAMBLER INDICATOR (pgs. 13, 73)
Appears when an optional voice scrambler is activated.
o SCAN INDICATOR (pgs. 17, 74)
➥ "SCAN" appears during normal scan.
➥ "P SCAN" appears during priority scan.
!0 PRIORITY CHANNEL INDICATOR
➥ Indicates a priority channel during priority scan or
dual/tri-watch. (pgs. 14, 17, 74)
