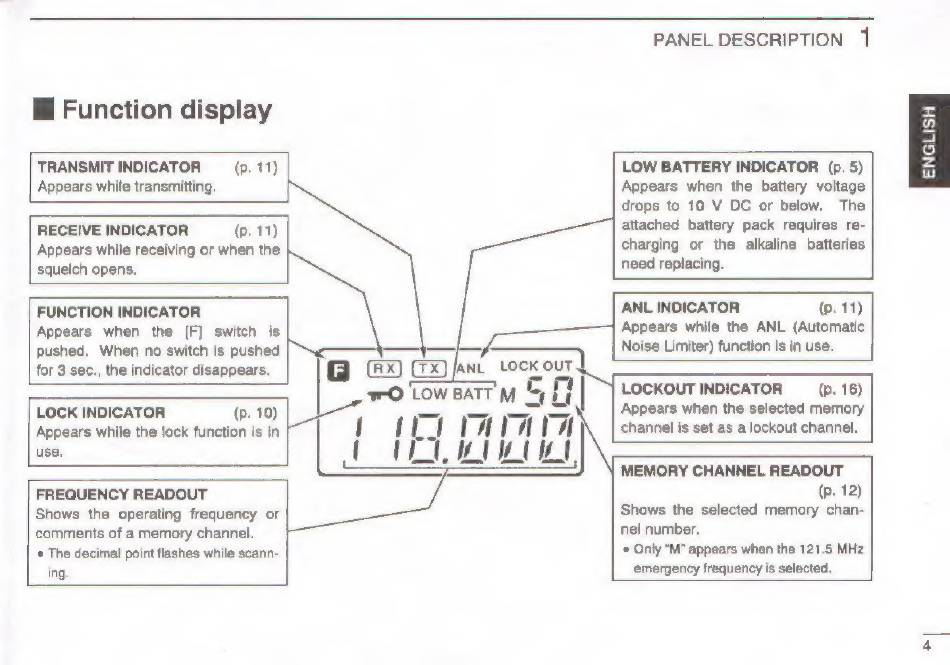

i Function display
TRANSMIT INDICATOR (p. 11)
Appears while transmitting.
RECEIVE INDICATOR (p. 11)
Appears while receiving or when the
squelch opens.
FUNCTION INDICATOR
Appears when the [F] switch is
pushed, When no switch is pushed
for 3 sec., the indicator disappears.
LOCK INDICATOR (p. 10)
Appears while the lock function is in
use.
FREQUENCY READOUT
Shows the operating frequency or
comments of a memory channel.
* The decimal point flashes while scann-
ing.
mv
Pera Ll ALATA
EB: ia
PANEL DESCRIPTION 1
LOW BATTERY INDICATOR (p. 5)
Appears when the battery voltage
drops to 10 V DC or below, The
attached battery pack requires re-
charging or the alkaline batteries
need replacing.
ANL INDICATOR (p. 11)
Appears while the ANL (Automatic
Noise Limiter) function is in use.
LOCKOUT INDICATOR (p. 16)
Appears when the selected memory
channel is set as a lockout channel.
MEMORY CHANNEL READOUT
(p. 12)
Shows the selected memory chan-
nel number.
* Only "M" appears when the 121.5 MHz
emergency frequency is selected.
