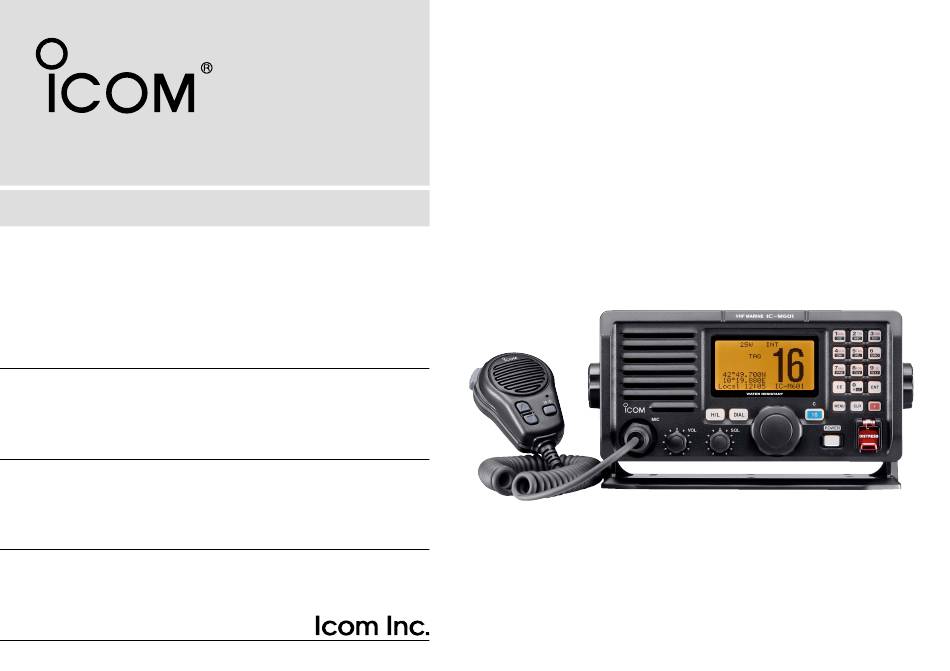

- Page 1 INSTRUCTION MANUAL VHF MARINE TRANSCEIVER iM601...
- Page 2 We want to take a couple of moments of your time to The optional COMMANDMIC provides a 2nd and 3rd thank you for making the IC-M601 your radio of choice, station capability and an intercom function. With slim and hope you agree with Icom’s philosophy of “tech- dimension and sizable LCD, the COMMANDMIC offers nology first.”...
- Page 3 Icom, Icom Inc. and the logo are registered trademarks This warning symbol indicates that this equip- of Icom Incorporated (Japan) in the United states, the United ment operates in non-harmonised frequency bands Kingdom, Germany, France, Spain, Russia and/or other coun- and/or may be subject to licensing conditions in the tries.
- Page 4 IN CASE OF EMERGENCY If your vessel requires assistance, contact other vessels and Or, transmit your distress call using digital selective calling on the Coast Guard by sending a distress call on Channel 16. Channel 70. USING CHANNEL 16 USING DIGITAL SELECTIVE CALLING (Ch 70) DISTRESS CALL PROCEDURE DISTRESS CALL PROCEDURE...
- Page 5 TABLE OF CONTENTS I Position indication ......17 12 SPECIFICATIONS AND FOREWORD ..........i I Distress call ........18 IMPORTANT ..........ii OPTIONS ........47 I Transmitting DSC calls ....19 I Specifications ....... 47 EXPLICIT DEFINITIONS ......ii I Setting the distress information ..23 I Options .........
- Page 6 PRECAUTION RWARNING! NEVER AVOID the use of chemical agents such as benzine or al- connect the transceiver to an AC cohol when cleaning, as they may damage the transceiver outlet. This may pose a fire hazard or result in an electric surfaces.
- Page 7 OPERATING RULES D D PRIORITIES (2) OPERATOR’S LICENSE A Restricted Radiotelephone Operator Permit is the license • Read all rules and regulations pertaining to priorities and most often held by small vessel radio operators when a radio keep an up-to-date copy handy. Safety and distress calls is not required for safety purposes.
- Page 8 PANEL DESCRIPTION I Panel description iM601 VHF MARINE Function display Speaker DIAL DISTRESS MIC connector (Connect HM-137 ONLY) CAUTION: NEVER connect other microphones here, such as the optional HM-134, may cause damage to the transceiver.
- Page 9 PANEL DESCRIPTION q TRANSMIT POWER SWITCH [H/L] y CHANNEL 16/CALL CHANNEL SWITCH [16•C] ➥ Toggles high or low power when pushed. (p. 10) ➥ Selects Channel 16 when pushed. (p. 8) ➥ Selects call channel when pushed for 1 sec. (p. 8) •...
- Page 10 PANEL DESCRIPTION !2 KEYPAD ➥ Number input: ‘1’ ➥ Inputs numeral for channel number input, etc. ➥ Comment input: ‘1,’ ‘Q,’ ‘Z,’ ‘q,’ ‘z’ or space ➥ Inputs numeral and alphabet (some symbol) for channel ➥ After pushing [F], turns the DUALWATCH comment input.
- Page 11 Count on us! < Intended Country of Use > A-6218H-1EU Printed in Japan 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan © 2002 Icom Inc.
