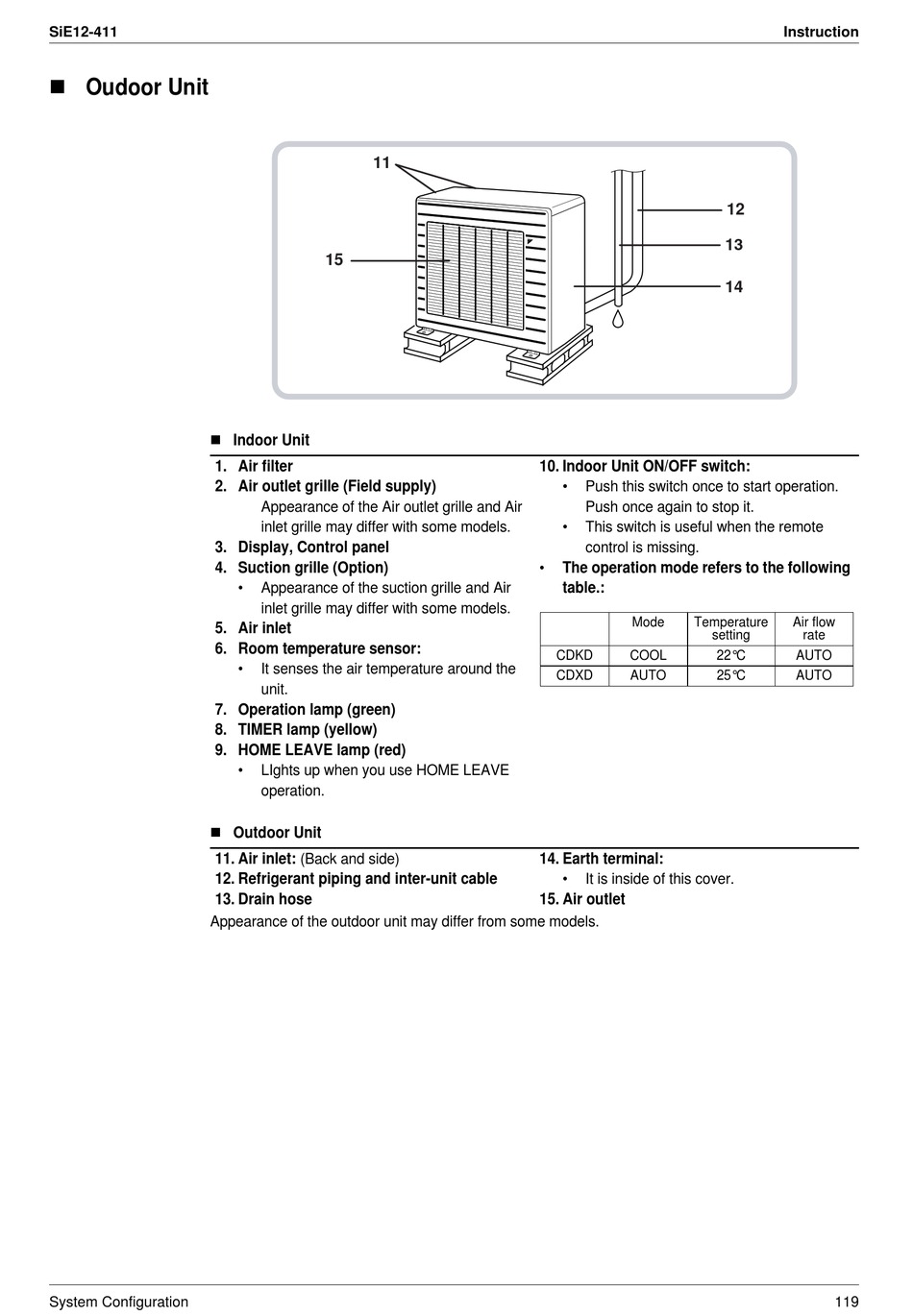

" Oudoor Unit
" Indoor Unit
1. Air filter
2. Air outlet grille (Field supply)
3. Display, Control panel
4. Suction grille (Option)
5. Air inlet
6. Room temperature sensor:
7. Operation lamp (green)
8. TIMER lamp (yellow)
9. HOME LEAVE lamp (red)
" Outdoor Unit
11. Air inlet: (Back and side)
12. Refrigerant piping and inter-unit cable
13. Drain hose
Appearance of the outdoor unit may differ from some models.
System Configuration
11
15
Appearance of the Air outlet grille and Air
inlet grille may differ with some models.
• Appearance of the suction grille and Air
inlet grille may differ with some models.
• It senses the air temperature around the
unit.
• LIghts up when you use HOME LEAVE
operation.
10. Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• This switch is useful when the remote
control is missing.
• The operation mode refers to the following
table.:
Mode Temperature
CDKD COOL
CDXD AUTO
14. Earth terminal:
• It is inside of this cover.
15. Air outlet
Instruction
12
13
14
Air flow
setting rate
22°C AUTO
25°C AUTO
