SiE12-411

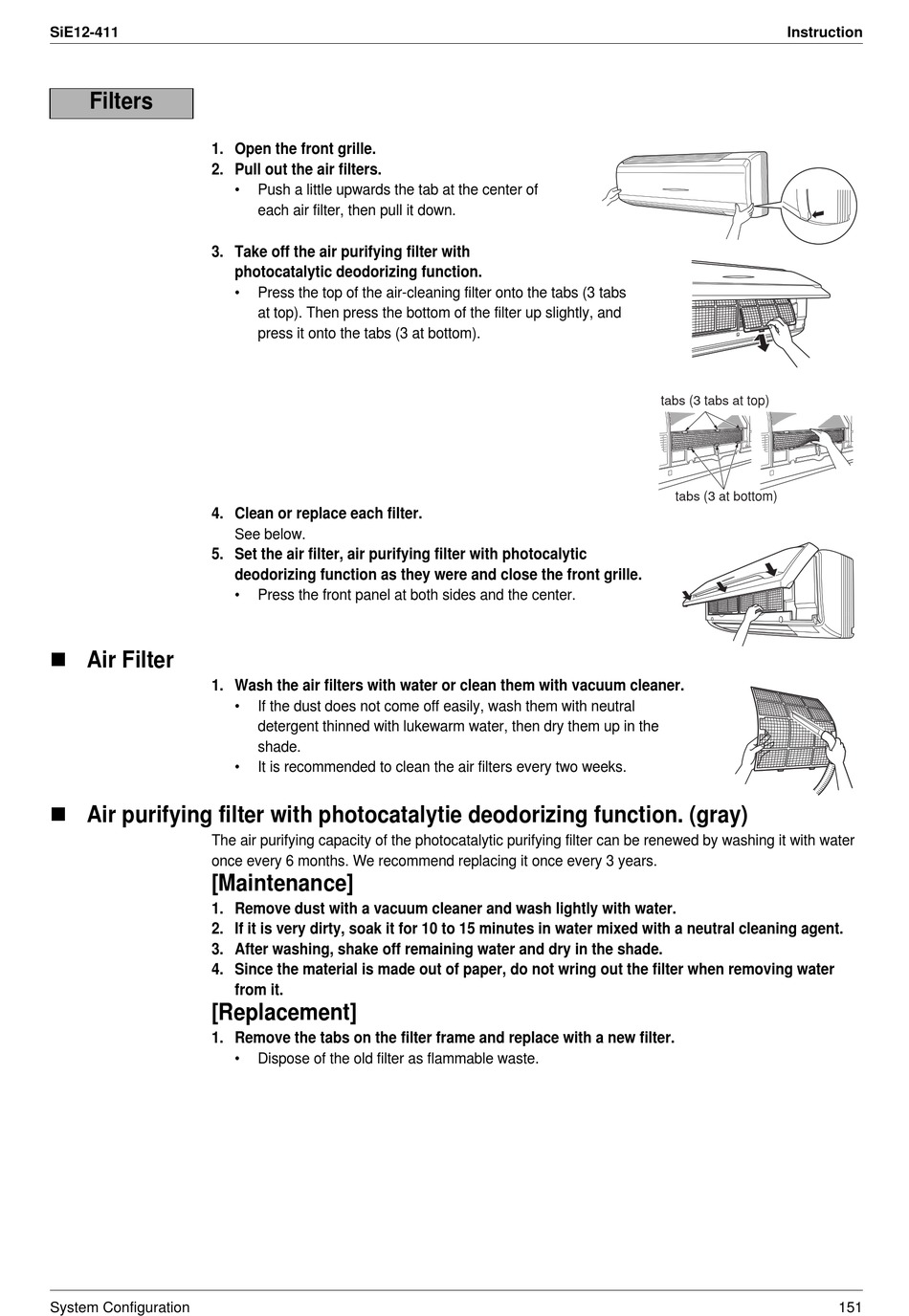

Filters
1. Open the front grille.
2. Pull out the air filters.
3. Take off the air purifying filter with
4. Clean or replace each filter.
5. Set the air filter, air purifying filter with photocalytic
" Air Filter
1. Wash the air filters with water or clean them with vacuum cleaner.
" Air purifying filter with photocatalytie deodorizing function. (gray)
The air purifying capacity of the photocatalytic purifying filter can be renewed by washing it with water
once every 6 months. We recommend replacing it once every 3 years.
[Maintenance]
1. Remove dust with a vacuum cleaner and wash lightly with water.
2. If it is very dirty, soak it for 10 to 15 minutes in water mixed with a neutral cleaning agent.
3. After washing, shake off remaining water and dry in the shade.
4. Since the material is made out of paper, do not wring out the filter when removing water
[Replacement]
1. Remove the tabs on the filter frame and replace with a new filter.
System Configuration
• Push a little upwards the tab at the center of
each air filter, then pull it down.
photocatalytic deodorizing function.
• Press the top of the air-cleaning filter onto the tabs (3 tabs
at top). Then press the bottom of the filter up slightly, and
press it onto the tabs (3 at bottom).
See below.
deodorizing function as they were and close the front grille.
• Press the front panel at both sides and the center.
• If the dust does not come off easily, wash them with neutral
detergent thinned with lukewarm water, then dry them up in the
shade.
• It is recommended to clean the air filters every two weeks.
from it.
• Dispose of the old filter as flammable waste.
Instruction
tabs (3 tabs at top)
tabs (3 at bottom)
