Audio Submenu

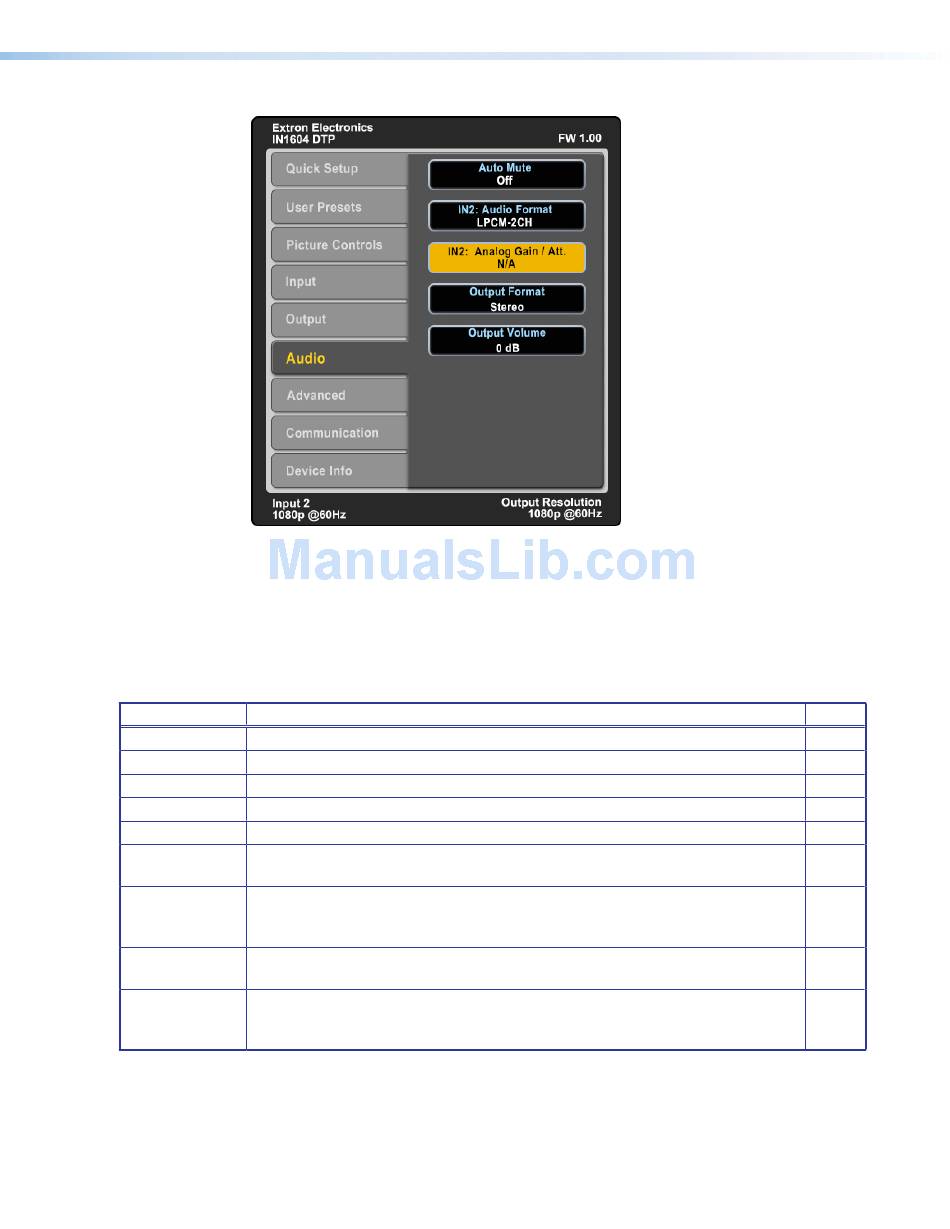

Figure 14.
The Audio submenu allows adjustment of audio settings, including mute, input format, gain
and attenuation, output format, and volume.
Audio Mute — Press the Navigation buttons to globally mute or unmute audio output.
Audio Format — Press the Navigation buttons to select the audio input format. Input 1 can
only be set to None, Analog 1, or Analog 2. Inputs 2-4 can be set for any audio input format
(see the table below for a description of the formats).
Format Details
None Mutes audio for the selected input. Sets "No Audio" EDID.
Analog 1 Sets the selected input to analog input 1. Sets "No Audio" EDID.
Analog 2 Sets the selected input to analog input 2. Sets "No Audio" EDID.
LPCM-2Ch Sets the selected input to LPCM-2Ch audio. Sets 2Ch audio EDID.
Multi-Ch Sets the selected input to Multi-Ch audio. Sets Multi-Ch audio EDID.
LPCM-2Ch Auto Sets the selected input prioritize 2-channel LPCM audio. Audio on analog input 1
(Analog 1) is passed when 2-channel LPCM audio is not present. Sets 2Ch audio EDID.
Multi-Ch Auto Sets the selected input to prioritize multi-channel audio, but will pass 2-channel
(Analog 1) LPCM if multi-channel audio is not available. Audio from analog input 1 is passed
when digital is not present. Sets Multi-Ch audio EDID.
LPCM-2Ch Auto Sets the selected input prioritize 2-channel LPCM audio. Audio on analog input 2
(Analog 2) is passed when 2-channel LPCM audio is not present. Sets 2Ch audio EDID.
Multi-Ch Auto Sets the selected input prioritize multi-channel audio, but will pass 2-channel
(Analog 2) LPCM if multi-channel audio is not available. Audio on analog input 2 is passed
when digital audio is not present. Sets 2Ch audio EDID.
Analog Gain and Attenuation — Press the Navigation buttons to set the gain (in dB) for
the applicable analog input.
Output Format — Press the Navigation buttons to set the output format.
Output Volume — Press the Navigation buttons to set the audio output volume.
Audio Submenu
IN1604 DTP and IN1604 HD Scalers • Operation
Inputs
All
All
All
2-4
2-4
2-4
2-4
2-4
2-4
22
