Delete VLAN:
1. VLAN setting: Click VLAN setting . The VLAN Setting window appears.
2. Delete VLAN: C
3. Select a VLAN ID: C
drop-down list to choose the VLAN to be deleted.
4. Submit: C Submit button when you finished VLAN setting.

VLAN Port Setting

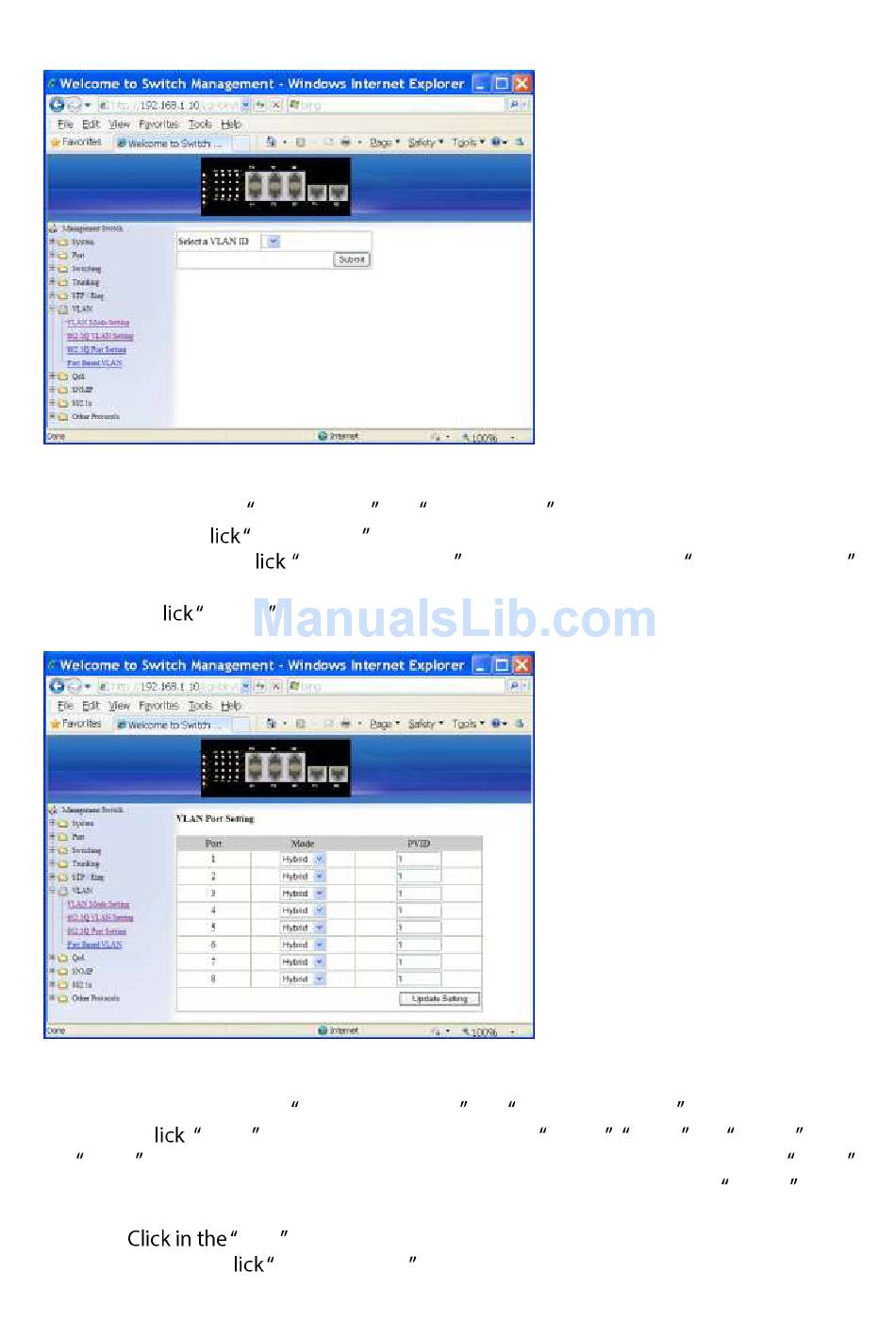

1. VLAN Port Setting: Click VLAN Port Setting . The VLAN Port Setting window appears.
2. Mode: C Mode drop-down menu to choose Access , Trunk , or Hybrid from
Mode drop-down list for the port. The port will be Tag port if you choose Trunk
Mode for the port. And the port will be Tag or Untag port if you choose Hybrid Mode
for the port.
3. PVID:
4. Update Setting: C
IES-0880 User Manual
Delete VLAN button.
Select a VLAN ID drop-down menu from Select a VLAN ID
PVID textbox and specify a new PVID number for the port.
Update Setting button when you finished VLAN Port Setting.
