ASSEMBLY

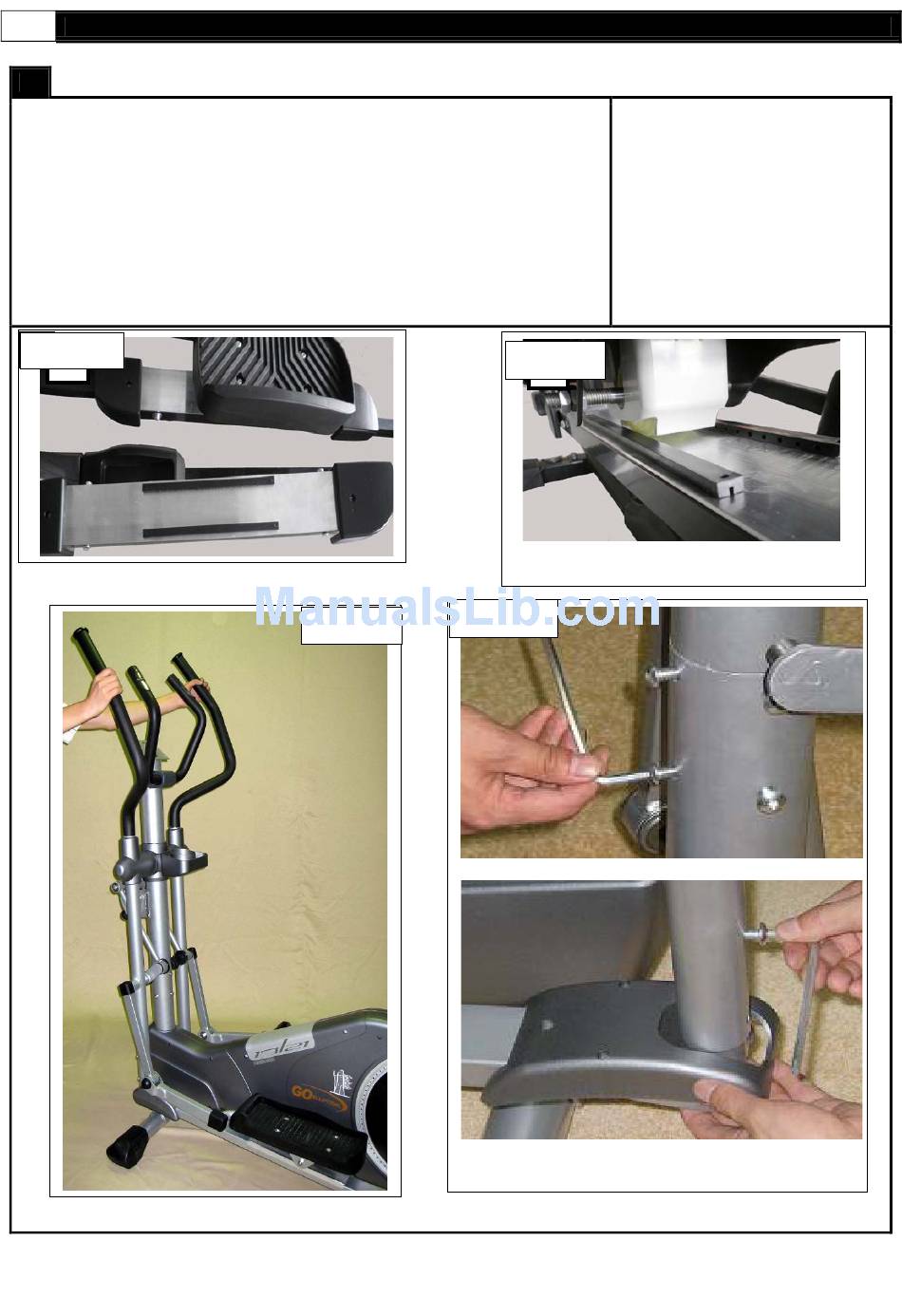

STEP 11:Roller Alignment
(A) There are two plastic alignment bars preassembled to the aluminum rails.
(see Fig. 11A)
(B) Place the second pedal support tube roller between the two alignment
rods. (Fig. 11B)
(C) If the rollers are not in the center of the alignment rods, rotate the upright
post side to side until the rollers are centered. (See Fig. 11C)
(D) When the rollers are centered, tighten the bolts that were left loose in
steps 4 and 8. (Fig. 11D)
(E) Recheck that all bolts are tight and rollers are centered
(F) Store the alignment rods for later use.
Fig. 11A
1
Fig .11D
Fig .11C
Fig. 11B 2
