14 SMOOTH CE 9.0 ELLIPTICAL
ASSEMBLY

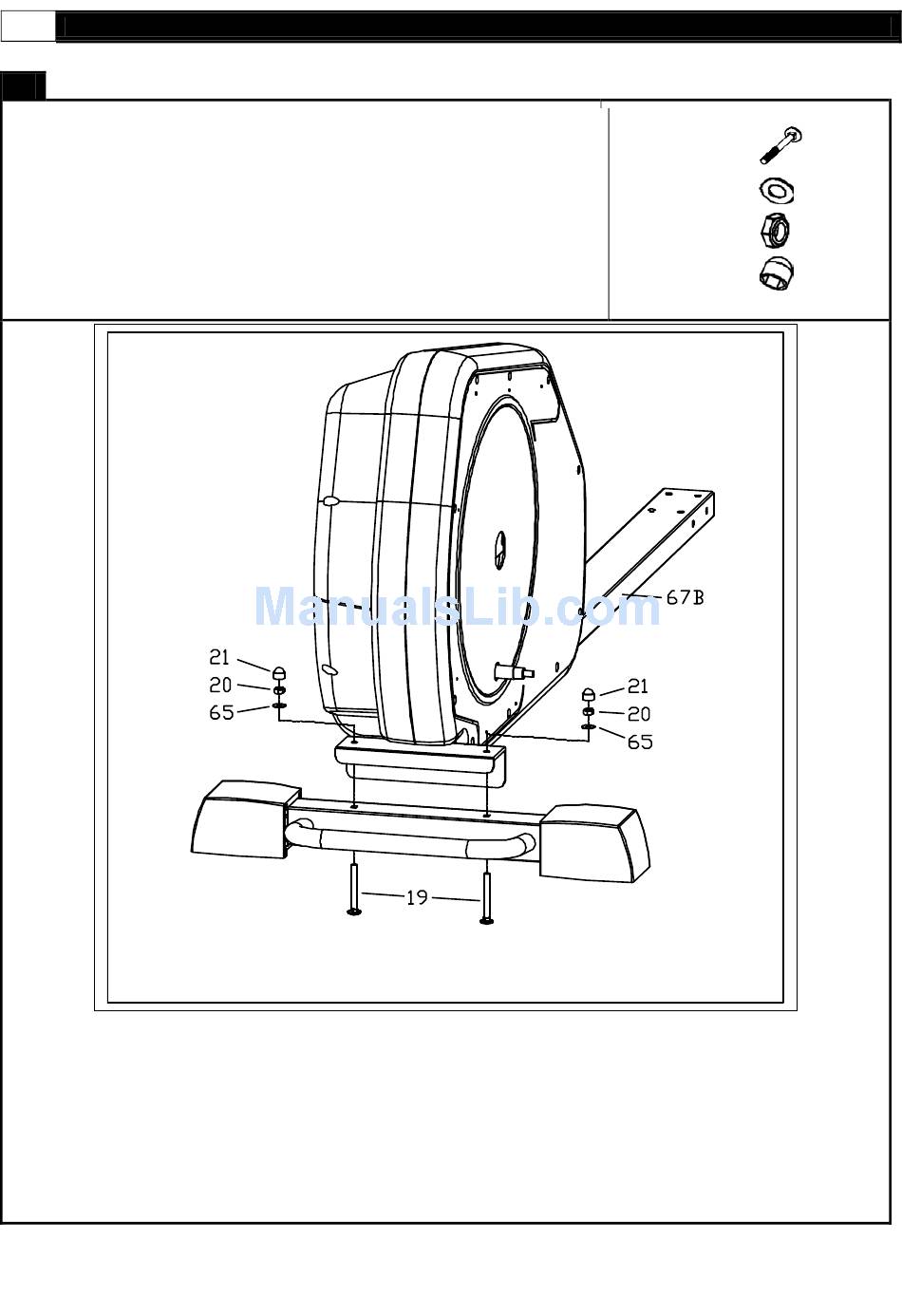

STEP 2: Attach the Rear Support (Rear Stabilizer)
NOTE: To make attaching the support easier, place a large Styrofoam
block under the machine.
(A) Attach the rear support to the base frame
(B) Align the 2 bolt holes in the rear support with the bolt holes in the main
frame.
(C) Secure the rear support to the main frame by using 2 x #19 bolts inserted
through the bottom, 2 x # 65 washers 2 x 20 lock nuts and 2 x #21 nut
covers
(D) Tighten all bolts now.
#19 2
#65 2
#20 2
#21 2
