ASSEMBLY

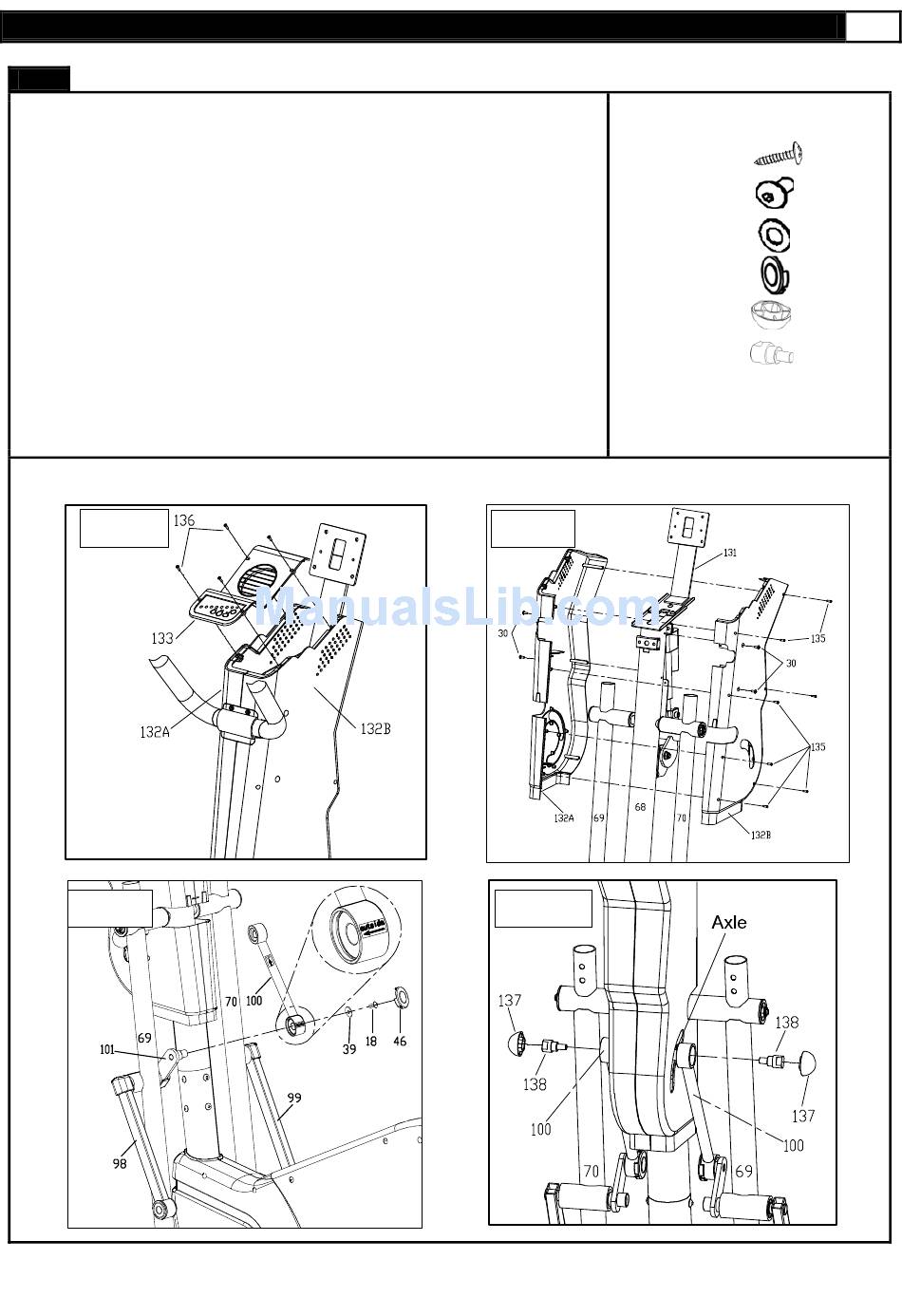

STEP 6: Attach the Fan and Handlebar Covers
(A) Place the fan cover #133 in-between the #132A and #132B covers (See
Fig.6A).
(B) Take the fan wire and route it with the other wires from the handrail
assembly
(C) Secure the fan cover #133 by using 4 x #136 screws.
(D) Attach the Handlebar cover #134 and secure it using 2 x #136 screws.
(E) Fully tighten all screws for covers #133, #134, #132A and 132B (See
Fig.6B)
(F) Place the two long connecting bars on to the swinging axel plate #101
and the opposite end on the stride adjuster. Be certain that the Long
connection bar is facing the correct direction (See Fig. 6C)
(G) Secure both long connecting bars to the swinging axel plates #101 by
using 2x #18 Allen head bolts, 2x #39 M8 Washer.
(H) Completely tighten the #18 bolts and insert the plastic cap
(I) Secure the long connecting bars to the stride adjuster by using 2 x #138
large bolts. (See Fig. 6D)
(J) Completely tighten the large bolts then cover with 2 x #137 protective cap
Fig.6A
Fig.6C
www.smoothfitness.com
#136
#18
#39
#46
#137
#138
Fig.6B
Fig. 5D
19
6
2
2
2
2
2
