ASSEMBLY
STEP 4: Attach the Upright Tube Assembly to the Base Frame
NOTE: This step is easier to complete with 2 people
! Caution Pinch Point: Do not pinch the wires between the frames!
(A) Hold the upright tube over the round base frame tube so that the data
cable can be connected prior to assembly
(B) After the data cables are connected slide the upright tube onto the round
base frame tube.
(C) Check to make sure the upright tube is facing the correct direction. (See
Fig. 4A)
(D) Secure the upright tube to the base frame by using 6 x #18 Allen head
bolts.
(E) Hand tighten all the bolts first Do not fully tighten these bolts until step 11.
Caution: Pinch Point. Do not pinch the
data cables or fingers between the two
frames.
#18

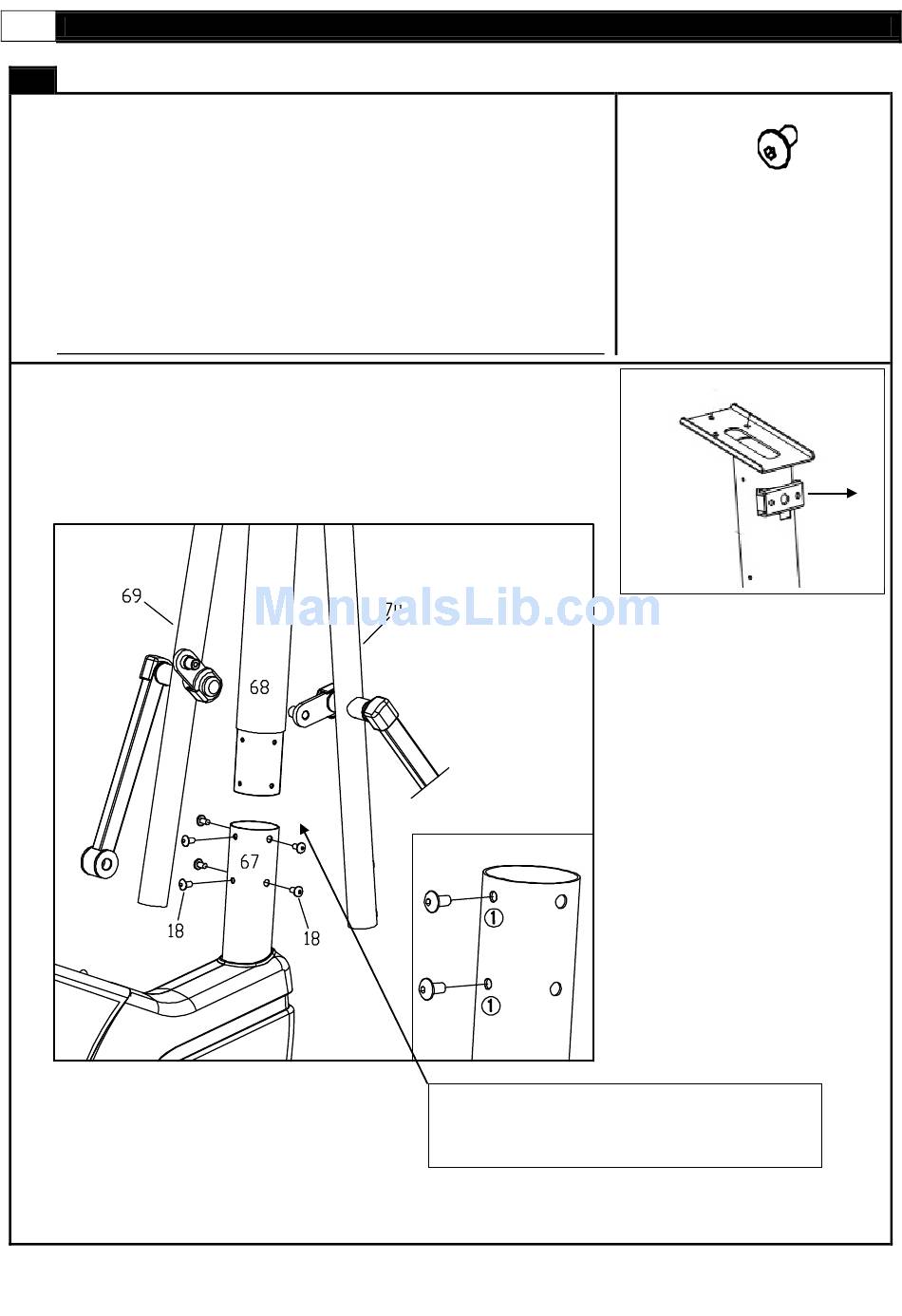

Fig 4A
Facing towards the
back of the machine
6
