Programming Jumper

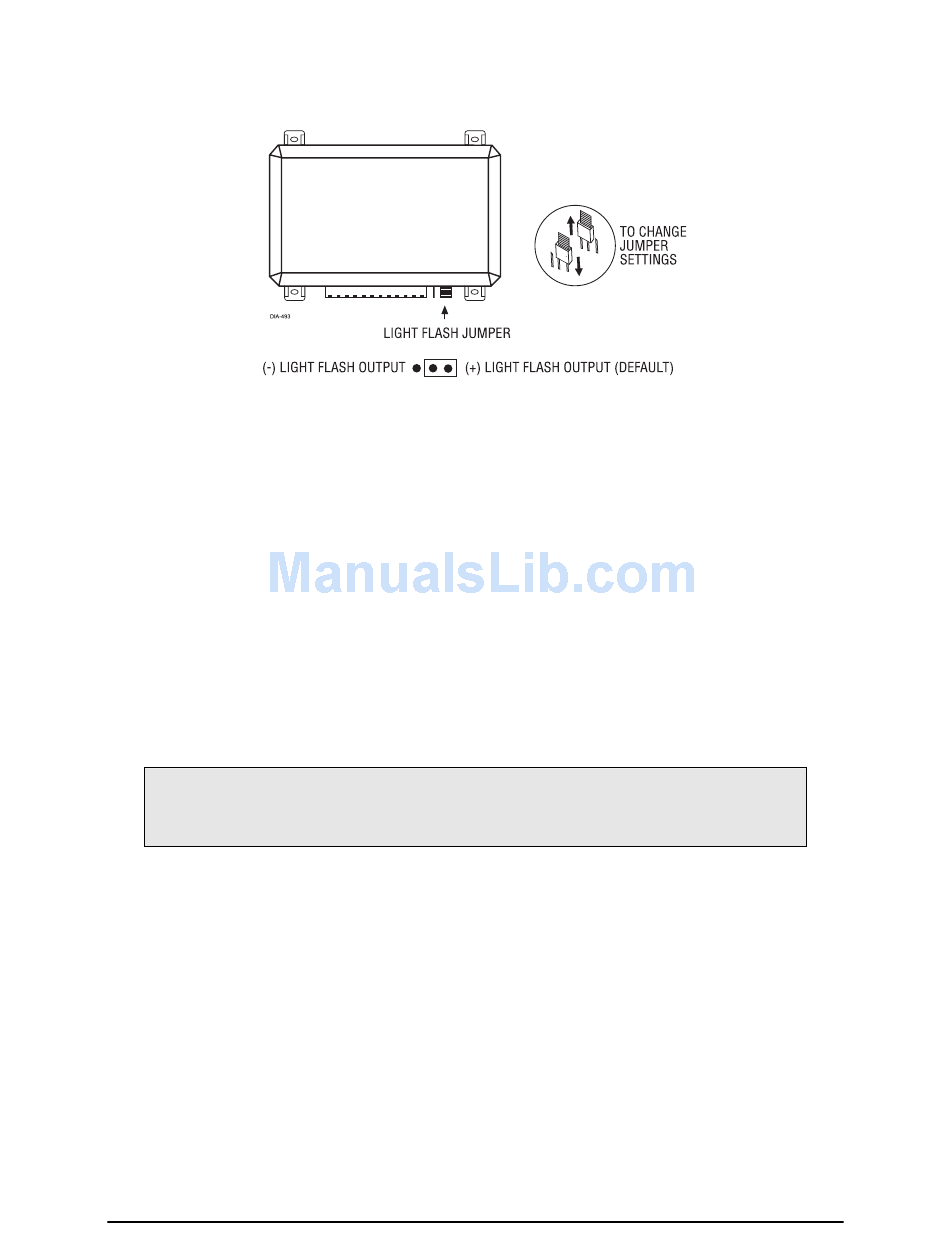

Light Flash Jumper

This jumper is used to determine the light flash output. In the (+) position, the on-board relay is

enabled and the unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on-

board relay is disabled. The WHITE wire, H1/2, will supply a 200 mA (-) output suitable for

driving factory parking light relays.

NOTE: For parking light circuits that draw 10 amps or more, the jumper must be switched to a (-)

light flash output. P/N 8617 or a standard automotive SPDT relay must be used on the H1/2 light

flash output harness wire.

IMPORTANT! DO NOT connect the H1/2 light flash wire to a negative vehicle light

flash wire before changing the programming jumper to the negative polarity position or

damage to vehicle light circuit may occur.

Bypassing Sensor Inputs

There are times when you need to temporarily bypass all sensor inputs to the unit, such as when

remote starting the vehicle. Anytime an auxiliary channel output is used, all inputs are bypassed for

5 seconds. During the 5 second bypass period, ground can be supplied to the H1/6 Blue wire

without triggering the unit. When the 5 second bypass period ends, if the unit sees ground on the
