Light Flash Jumper

This jumper is used to determine the light flash output. In the (+) position, the on-board relay is
enabled and the unit will output (+)12V on the WHITE wire, H1/2. In the (-) position, the on-
board relay is disabled. The WHITE wire, H1/2, will supply a 200 mA (-) output suitable for
driving factory parking light relays.
NOTE: For parking light circuits that draw 10 amps or more, the jumper must be switched to a (-)
light flash output. P/N 8617 or a standard automotive SPDT relay must be used on the H1/2 light
flash output harness wire.
Transmitter/Receiver Learn Routine
The system comes with two transmitters that have been taught to the receiver. The receiver can store
up to four different transmitter codes in memory. Use the following learn routine to add trans-
mitters to the system or to change button assignments if desired.
If the Directed Bitwriter or PC Interface has previously been used to program the system,
the unit may have been locked, so that the features and channels cannot be altered via
manual programming with the Valet switch. If the siren generates one long chirp when attempting
to program the transmitter/receiver, this indicates that the unit is locked. You must unlock it with
the Bitwriter of PC Interface before you will be able to manually program the transmitter/receiver.
The Valet/Program switch, plugged into the blue port, is used for programming. There is a basic
sequence to remember whenever programming this unit: Door, Key, Choose, Transmit and Release.

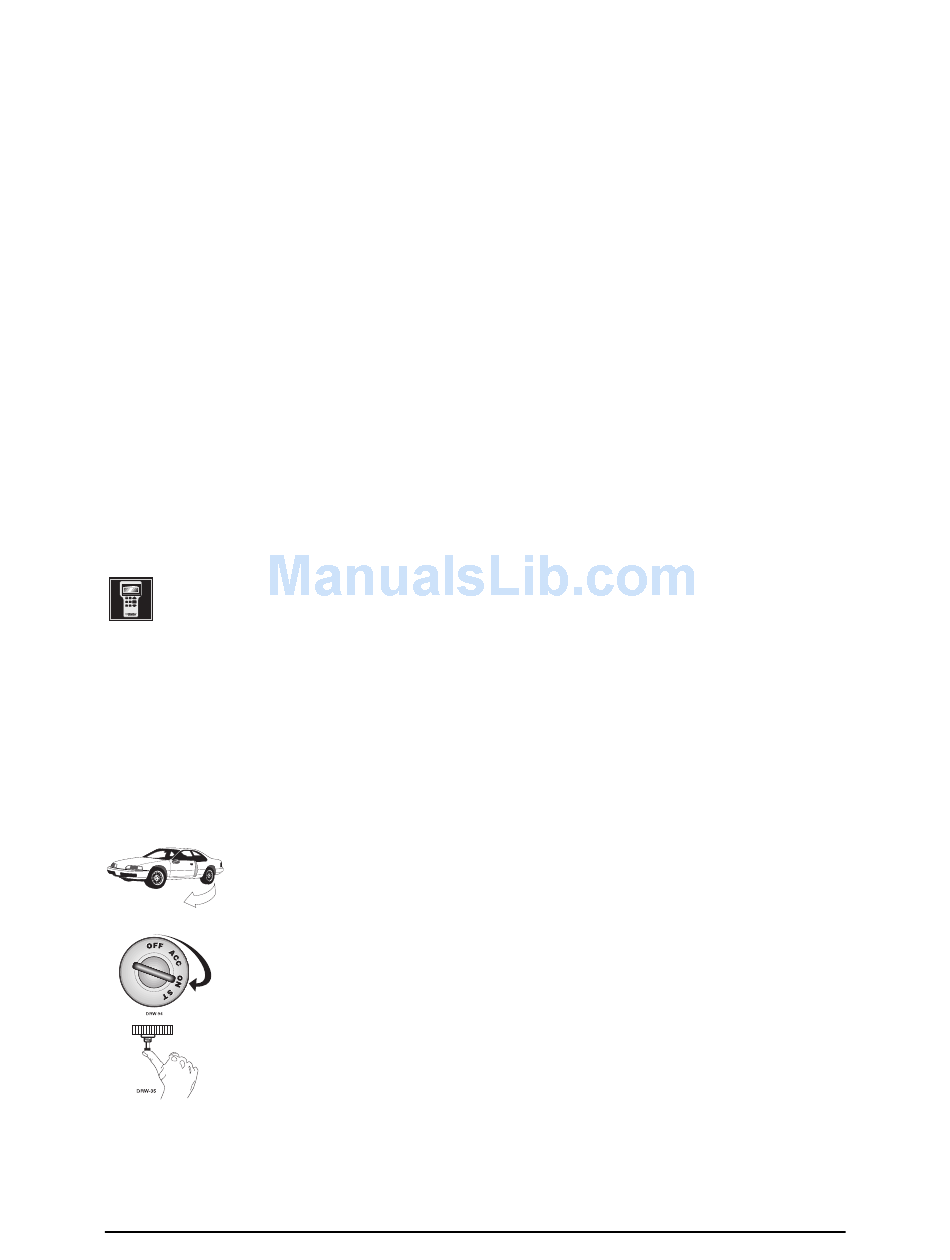

1. O O p p e e n n a a d d o o o o r r . . (The GREEN wire, H1/5, or the VIOLET, H1/7 must be
connected.)
2. K K e e y y . . Turn the ignition on. (The heavy gauge PINK wire of the relay satellite
must be connected.)
3. S S e e l l e e c c t t t t h h e e r r e e c c e e i i v v e e r r c c h h a a n n n n e e l l . . Press and release the Valet/Program switch the
number of times necessary to access the desired channel. Once you have
selected a channel, press and hold the Valet/Program switch once more. The
siren will chirp and the LED will blink the number of times corresponding to
the channel that has been accessed.
