Clifford Matrix 1 Installation Manual page 5

H1/1 ORANGE (-) ground-when-armed output
This wire supplies a (-) ground as long as the system is armed. This output ceases as soon as the
system is disarmed. The orange wire is pre-wired to control the 8618 starter kill relay. It can supply
up to 500 mA of current.
NOTE: If using the H1/1 ORANGE wire to activate an add-on accessory such as window
automation, pager or voice module a 1Amp diode must be installed to ensure proper operation.

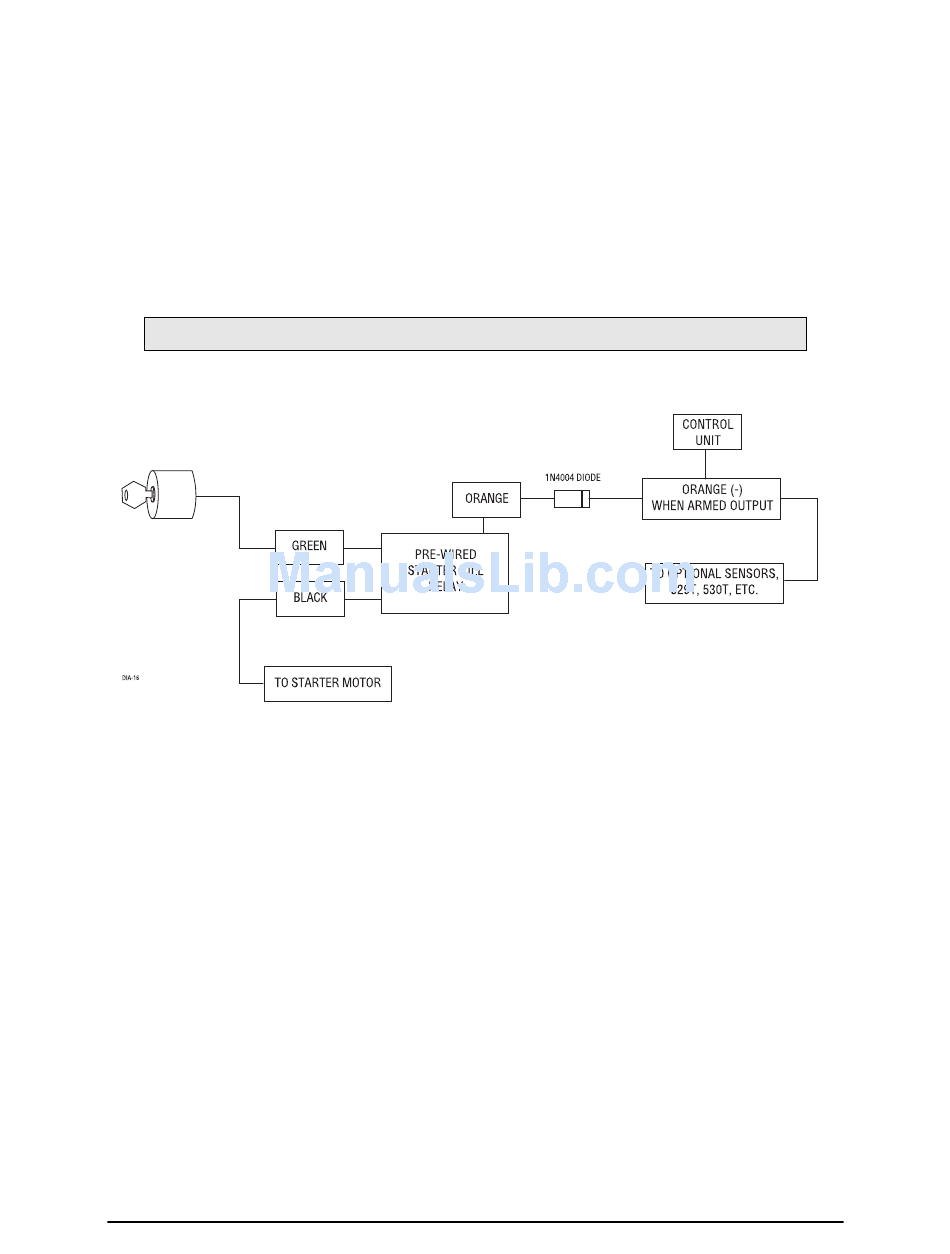

Insert the diode as shown in the following diagram.
IMPORTANT! Never interrupt any wire other than the starter wire.
H1/2 WHITE (+/-) light flash output
As shipped, the H1/2 WHITE wire should be connected to the (+) parking light wire. If the light flash
polarity jumper is moved to the (-) position (see the Programming Jumper section of this installation
guide), this wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in
Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and other models.
NOTE: For parking light systems that draw 10 amps or more, the jumper must be switched to a
(-) light flash output (see the Programming Jumpers section of this guide). P/N 8617 or a standard
automotive SPDT relay must be used on the H1/2 light flash output wire.
