Clifford Matrix 1 Installation Manual page 22

2-9 DOUBLE/SINGLE PULSE LOCK: Some vehicles require two pulses on a single wire to
unlock the doors. When the double pulse unlock feature is turned on, the GREEN H2/A wire will
supply two negative pulses instead of a single pulse. At the same time, the BLUE H2/C wire will
supply two positive pulses instead of a single pulse. This makes it possible to directly interface with
double pulse vehicles without any extra parts.
2-10 CHANNEL 3 VALIDITY/LATCHED/LATCHED RESET WITH IGNITION/30
SECOND TIMED/SECOND UNLOCK OUTPUT: Channel 3 can be programmed for these
output configurations. The unit is set to the default validity output.
2-11 COMFORT CLOSURE: The system can be programmed to close the windows when the
system is armed. A 20-second output starts 200mS after the last lock pulse. The Comfort Closure
output will be canceled if the system is disarmed while it is still active. If programmed, the lock
output wire will provide this function.
Transmitter/Receiver Learn Routine
The system comes with two transmitters that have been taught to it. The system can store up to
four different transmitter codes in memory. Use the following learn routine to add transmitters to
the system or to change button assignments if desired.
If the system was previously programmed using the 998T Bitwriter, the learn routine may be locked.
If the siren generates one long chirp when attempting to program the unit, the learn routine is locked
and must be unlocked using the 998T Bitwriter before proceeding.

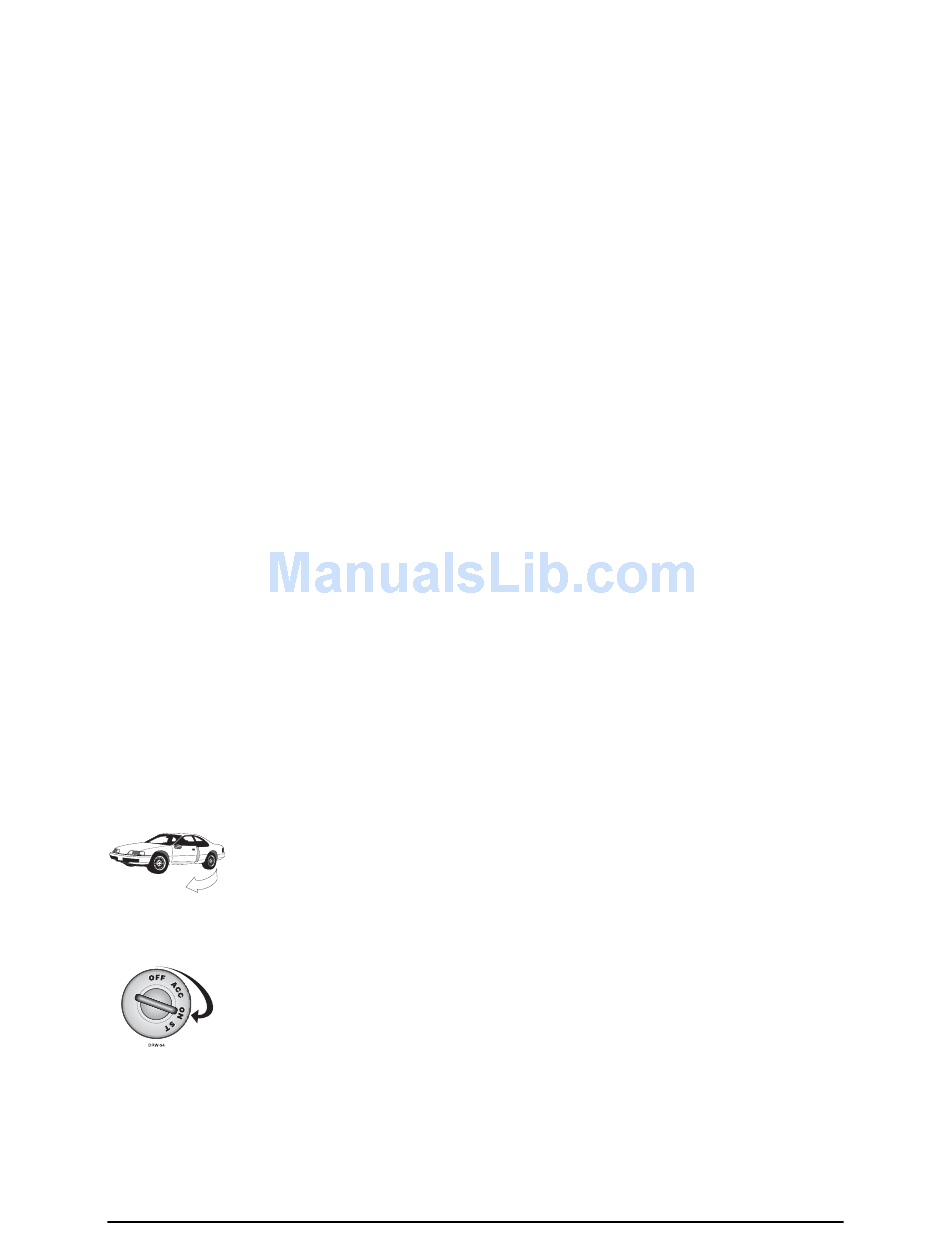

1. O O p p e e n n a a d d o o o o r r . . (The GREEN wire, H1/5, or the VIOLET, H1/7 must be
connected.)
2. T T u u r r n n t t h h e e i i g g n n i i t t i i o o n n o o n n . . (The YELLOW wire, H1/9 must be connected.)
