Page 1: User Manual
IFS MC201-1P/1FS User Manual P/N 1076525 • REV A • ISS 07FEB12... - Page 2 © 2012 UTC Fire & Security Company. All rights Copyright reserved. Interlogix, IFS MC201-1P/1FS, the IFS Brand and Trademarks and logo are trademarks of UTC Fire & Security. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
- Page 3 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. www.utcfireandsecurity.com Contact www.interlogix.com information www.interlogix.com/customer-support Customer support...
-
Page 5: Table Of Contents
LED Indicators 9 System 9 10/100Base-TX Port 9 100Base-FX SC Port 9 Specifications 11 Cable Specifications 12 RJ-45 Pin Assignments 12 RJ-45 Cable Pin Assignments 12 Fiber Optic Cable Connection Specifications 13 Contacting Technical Support 14 IFS MC201-1P/1FS User Manual... -
Page 7: Overview

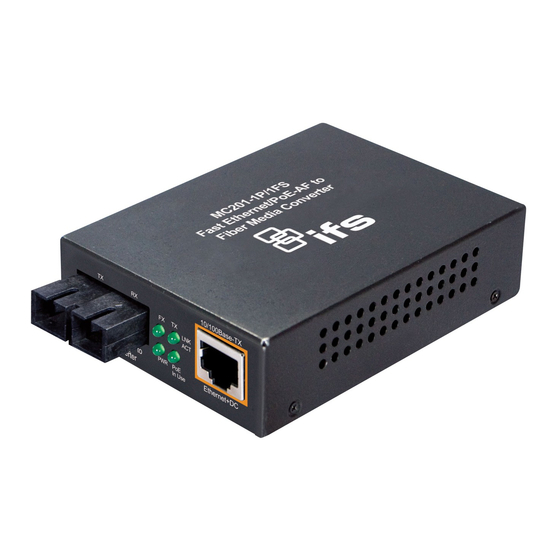

Overview Thank you for purchasing the IFS MC201-1P/1FS 10/100Mbps Ethernet Twisted pair to 100Base-FX fiber optic PoE Bridge Converter. This converter is used to convert one type of media signal to a different type of media that allows two segments to connect easily, efficiently and inexpensively. -
Page 8: Package Contents
MCR205-1T/1S PoE Media Converter x1 • User’s Manual CD x1 If any of these items are missing or damaged, please contact your dealer immediately. If possible, retain the product box including the original packing material to return it for repair/replacement. IFS MC201-1P/1FS User Manual... -
Page 9: Hardware Overview
Hardware Overview Figure 1: Physical Layout IFS MC201-1P/1FS User Manual... -
Page 10: Front Panel
Link Fault Pass-through (LFP) The LFP function refers to the Link Fault Pass-through function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately notify administrators about a connectivity problem. The DIP Switch enables or disables the LFP function. IFS MC201-1P/1FS User Manual... -
Page 11: Link Loss Carry Forward (Llcf)
In case of a connectivity issue, the MC201-1T/1FS media converter LLCF sends the notification to the switch/hub that generates a trap to the management station. * The default is set to OFF for LFP function. IFS MC201-1P/1FS User Manual... -
Page 12: Link Loss Return (Llr)
LLR function will return a no-link condition to its link partner. With LLCF function also enabled, the no-link condition is carried forward to the switch/hub where a trap is generated to the management station. IFS MC201-1P/1FS User Manual... -
Page 13: Installing The Converter
5. Connect the 48V DC power adapter to the MC201-1P/1FS and verify that the Power LED illuminates. 6. Turn on the network device/station, the TX Link and FX Link LEDs should illuminate when all the cables are attached. IFS MC201-1P/1FS User Manual... -
Page 14: Poe Function
MC201-1P/1FS provides the easiest way to power your PoE powered Ethernet devices such as IP cameras, IP access control, VoIP, Wireless Access Points (WAP), etc. 2km~15km 100 meters Data Data+Power Fiber Switch Wireless AP Power IFS MC201-1P/1FS User Manual... -
Page 15: Led Indicators
LNK/ACT Green Indicates that the port link is up. Indicates that the port link is down. Fiber optic port should be set to the correct mode Note: according to this LNK/ACT indicator for optimal network performance. IFS MC201-1P/1FS User Manual... - Page 16 IFS MC201-1P/1FS User Manual...
-
Page 17: Specifications
Enclosure Metal Dimensions (H x W x D) 1.02 x 2.76 x 3.82 in. (26 x 70 x 97 mm) Weight 0.44 lbs. / 200g Environmental Operating Temperature 0ºC~50ºC Storage Temperature -120ºC~70ºC Relative Humidity 0%–90% (non-condensing) IFS MC201-1P/1FS User Manual... -
Page 18: Cable Specifications
4, 5, 7, 8 Not used Not used Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard. RJ-45 Cable Pin Assignments IFS MC201-1P/1FS User Manual... -
Page 19: Fiber Optic Cable Connection Specifications
Fiber Optic Cable Connection Specifications The optical details are shown below: Fiber Optical patch Cables: Standard Fiber Type Cable Specification 100Base-FX Multi-mode 50/125μm or 62.5/125μm (1310nm) 100Base-FX Single-mode 9/125μm (1310nm) IFS MC201-1P/1FS User Manual... -
Page 20: Contacting Technical Support
Contact technical support if you encounter any difficulties during this installation. Please make sure you have the requested diagnostic or log files ready before you contact us by phone or go to www.interlogix.com/customer-support. Technical Support Europe, Middle East and Africa Select Contact Us at www.utcfssecurityproducts.eu...
