- Page 1 IFS MCR300-1T/1S User Manual P/N 1076519 • REV A • ISS 07FEB12...
- Page 2 © 2012 UTC Fire & Security Company. All rights Copyright reserved. Interlogix, IFS MCR300-1T/1S, the IFS Brand and Trademarks and logo are trademarks of UTC Fire & Security. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
- Page 3 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. www.utcfireandsecurity.com Contact www.interlogix.com information www.interlogix.com/customer-support Customer support...
-
Page 5: Table Of Contents
Back Panel 4 Power Notice: 4 Link Fault Pass through (LFP) 5 Link Loss Carry Forward (LLCF) 5 Link Loss Return (LLR) 6 Installing the MCR300-1T/1S 8 Duplex Mode Support 9 LED indicators 9 System 9 10/100/1000Base-TX Port 9 1000Base-SX/LX SFP Slot 9... -
Page 7: Overview

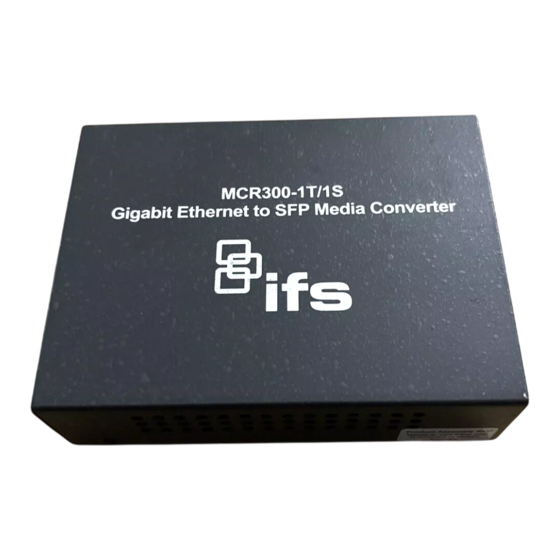

This MCR300-1T/1S can be used as a standalone unit or as a slide-in module in the MCR-R15 19” media chassis (up to 15 modules) for a combined multi-mode and single-mode fiber network at a central wiring closet. -
Page 8: Product Features
Product Features The MCR300-1T/1S provides the following key features: • Complies with the IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet standard • Bridge mode Media Converter with TP port supports 10/100/1000Base-T and auto-MDI/MDIX •... -
Page 9: Hardware Overview
Hardware Overview Figure 1: All Panel Views IFS MCR300-1T/1S User Manual... -
Page 10: Front Panel
10/100/1000Mbps Ethernet RJ-45 Port, status LEDs and one DIP switch for LFP ON/OFF. Back Panel The back panel of the MCR300-1T/1S indicates one DC jack, which accepts input power with 5V DC 2A. Power Notice: This device will not work without power. For continuous... -
Page 11: Link Fault Pass Through (Lfp)
The diagram below shows a typical network configuration with a good link status using MCR300-1T/1S for remote connectivity. In case of a connectivity issue, the MCR300-1T/1S media converter LLCF sends the notification to the switch/hub that generates a trap to the management station. -
Page 12: Link Loss Return (Llr)
LED unlit = no link * The factory default setting for the LFP function is "off". Link Loss Return (LLR) The fiber ports of MCR300-1T/1S have been designed with an LLR function for troubleshooting a remote connection. LLR works in conjunction with LLCF. - Page 13 (i.e. checking which end is broken in a connection), you can turn the switch to on position and reset the converter for changes to take effect. Otherwise, it's recommended to keep the DIP switch in its default position. IFS MCR300-1T/1S User Manual...
-
Page 14: Installing The Mcr300-1T/1S
3. Connect the fiber cable. Attach the duplex LC connector on the network cable into the SFP transceiver. 4. Attach fiber cable from the MCR300-1T/1S to the fiber network. TX, RX must be paired at both ends. 5. Connect a 5 VDC power adapter to the MCR300-1T/1S and verify that the Power LED powers up. -
Page 15: Duplex Mode Support
Duplex Mode Support The MCR300-1T/1S is a one-channel media converter between 10/100/1000Base-T and 1000Base-SX/LX. The 10/100/1000Base-T port can operate under Auto-negotiation mode. The 1000Base-SX/LX SFP fiber port allows only fixed 1000Mbps full duplex mode. LED indicators System Color Function Lit: Indicates the device is powered. -
Page 16: Cable Connection
62.5 1000Base 62.5 5000* Note: The single mode port (1000Base-LX port) of the MCR300-1T/1S, is compliant with LX 5 kilometers and provides additional margin allowing for a 10/30/70 kilometer Gigabit Ethernet links on single mode fiber. IFS MCR300-1T/1S User Manual... -
Page 17: Specifications
Specifications The MCR300-1T/1S comes with the following standard features: Model MCR300-1T/1S Connector – Fiber SFP, LC type Mode Vary on module Fiber Maximum Vary on module Distance Connector - Copper 10/100/1000Mbps RJ-45 Modes Full Duplex, auto-negotiation Packet Forwarding 14880pps @10Mbps... -
Page 18: Rj45 Pin Assignments
Tx - (transmit) 7, 8 Not used RJ45 Cable Drawing Error! Objects cannot be created from editing field codes. The following figure shows the pin allocation and color of a straight cable, and connection of a crossover cable. IFS MCR300-1T/1S User Manual... -
Page 19: Fiber Optical Cable Connection Parameter
Fiber Optical Cable Connection Parameter Fiber Optical patch Cables: Standard Fiber Diameter Modal Bandwidth Max. (micron) (MHz * km) Distance (meters) 1000Base-SX Multi- mode 62.5 62.5 1000Base-LX Multi-mode 62.5 Single Mode 5000* IFS MCR300-1T/1S User Manual... -
Page 20: Contacting Technical Support
Contact technical support if you encounter any difficulties during this installation. Please make sure you have the requested diagnostic or log files ready before you contact us by phone or go to www.interlogix.com/customer-support. Technical Support Europe, Middle East and Africa Select Contact Us at www.utcfssecurityproducts.eu...
