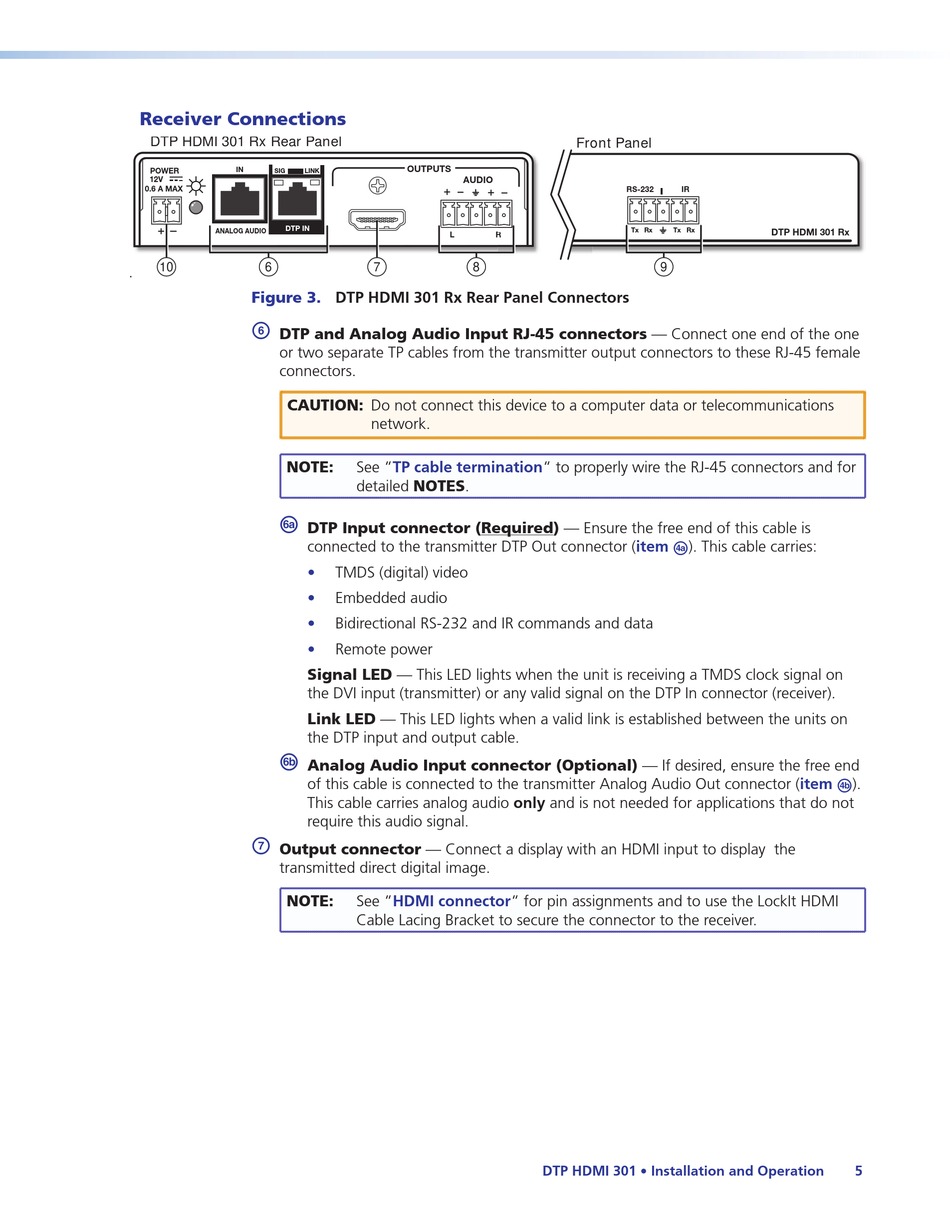

Receiver Connections

DTP HDMI 301 Rx Rear Panel DTP HDMI 301 Rx Rear Panel
IN
POWER
SIG LINK
12V
0.6 A MAX
DTP IN
ANALOG AUDIO
10 6
.
Figure 3.
f
DTP and Analog Audio Input RJ-45 connectors — Connect one end of the one
or two separate TP cables from the transmitter output connectors to these RJ-45 female
connectors.
CAUTION: Do not connect this device to a computer data or telecommunications
NOTE:
ä
DTP Input connector (Required) — Ensure the free end of this cable is
connected to the transmitter DTP Out connector
•
•
•
•
Signal LED — This LED lights when the unit is receiving a TMDS clock signal on
the DVI input (transmitter) or any valid signal on the DTP In connector (receiver).
Link LED — This LED lights when a valid link is established between the units on
the DTP input and output cable.
ã
Analog Audio Input connector (Optional) — If desired, ensure the free end
of this cable is connected to the transmitter Analog Audio Out connector
This cable carries analog audio only and is not needed for applications that do not
require this audio signal.
g
Output connector — Connect a display with an HDMI input to display the
transmitted direct digital image.
NOTE:
OUTPUTS
AUDIO
L R R
7 8
DTP HDMI 301 Rx Rear Panel Connectors
network.
See "TP cable termination" to properly wire the RJ-45 connectors and for
detailed NOTES.
TMDS (digital) video
Embedded audio
Bidirectional RS-232 and IR commands and data
Remote power
See "HDMI connector" for pin assignments and to use the LockIt HDMI
Cable Lacing Bracket to secure the connector to the receiver.
Fro Front Panel ont Panel
RS-232 IR
Tx Rx Tx Rx
9
(item Ü ). This cable carries:
DTP HDMI 301 • Installation and Operation
DTP HDMI 301 Rx
(item á ).
5
