1.4 Panel Layout

1.4.1

The Front Panel

The Router's LEDs are located on the front panel (View from top to bottom).
Name Status
Power On
Off
On
Internet
Flashing
Off
On
WLAN
Flashing
Off
On
RJ45
Ethernet
Flashing
Off
WPS/RESET: To use WPS function, please push the button for less than 5 seconds, and
then the WPS LED will flash; to reset the router, please push the button for at
least 10 seconds.
TL-MR3020

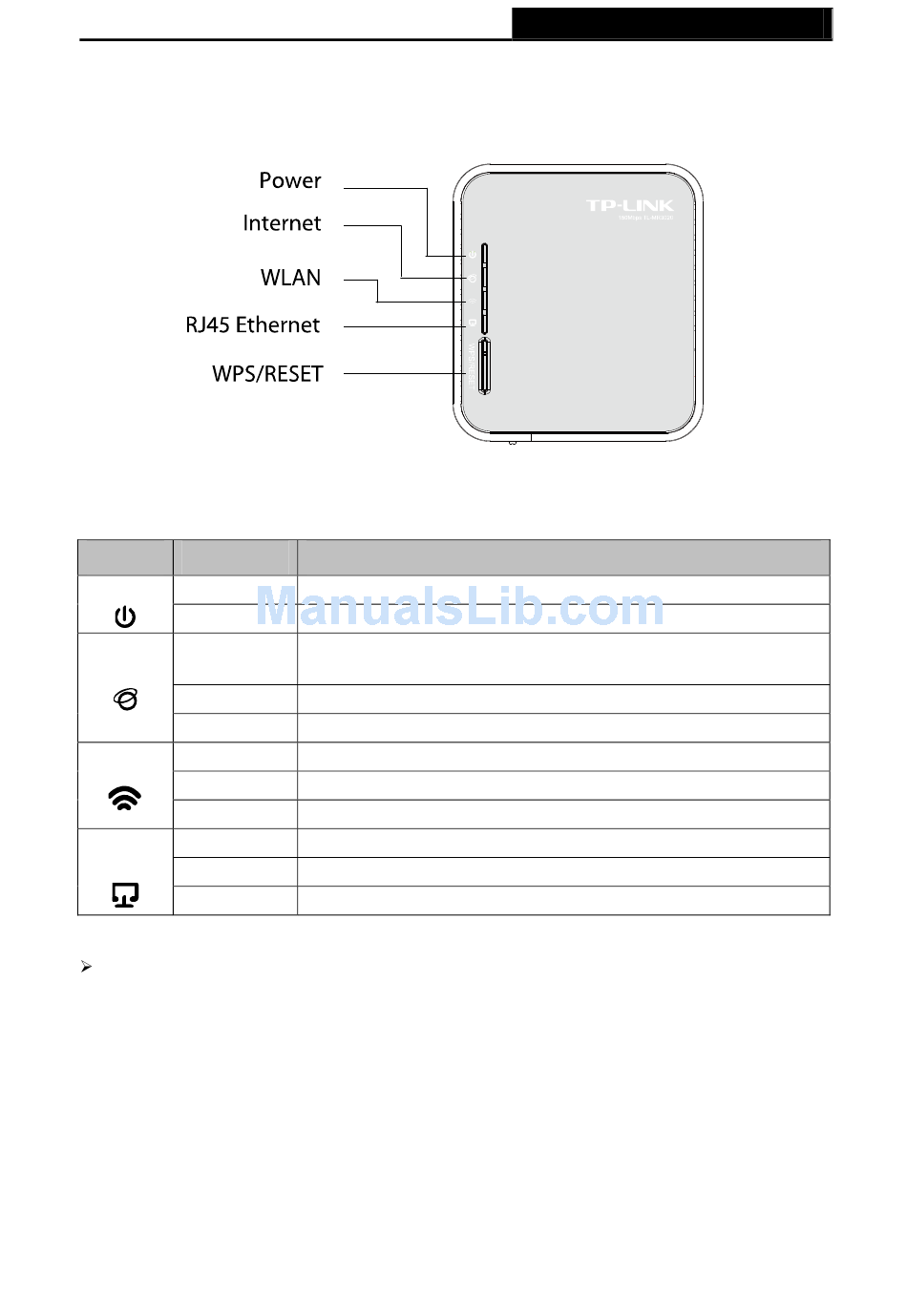

Figure 1-1 Front Panel sketch
Power is on.
Power is off.
The router is connected to the Internet, but there is no data being
transferred.
The router is transferring data.
The router is not connected to the Internet.
The Wireless function is enabled.
There is data being transferred through wireless.
The Wireless function is disabled.
A device is linked to the corresponding port but there is no activity.
The Ethernet port is transferring data.
No device is linked to the corresponding port.
Table 1-1 The LEDs description
-4-
Portable 3G/4G Wireless N Router
Indication
