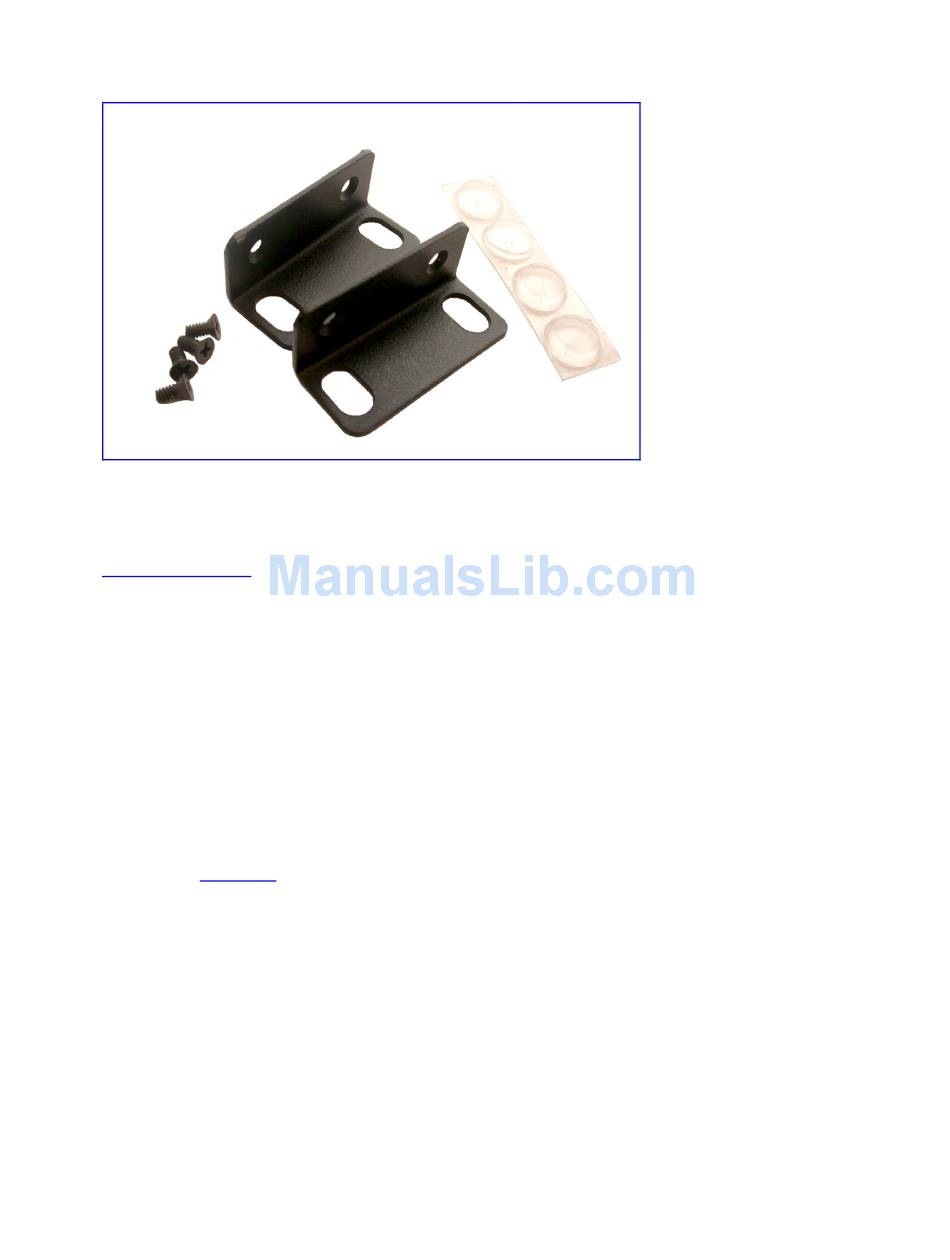

19-inch Rack & Desktop Accessories
Figure 9
Mounting the V7122 Gateway
The gateway can be mounted on a desktop, or installed in a standard 19-inch rack. See
Cabling the V7122
for cabling the V7122.
Mounting the V7122 Gateway on a Desktop
No brackets are required. Optionally, attach the four (supplied) anti-slide bumpers to the
base of the gateway and place it on the desktop in the position you require.
Installing the V7122 Gateway in a 19-inch Rack
Users can install the device in a standard 19-inch rack either by placing the device on a shelf
preinstalled in the rack (preferred method), or by attaching the device directly to the rack's
frame using integral brackets.
Before rack mounting the chassis, attach the two (supplied) brackets to the front sides of the
device (see
Figure
10).
To attach the two front side brackets:
Remove the 2 screws nearest the front panel on either side of the device.
1
Align a bracket over 2 holes on one side (so that the bracket's larger holes face front)
2
and with the 2 supplied replacement screws, screw in the bracket.
Perform the same procedure on the other side.
3
V7122 Gateway User Guide
43
