Installation Preparation

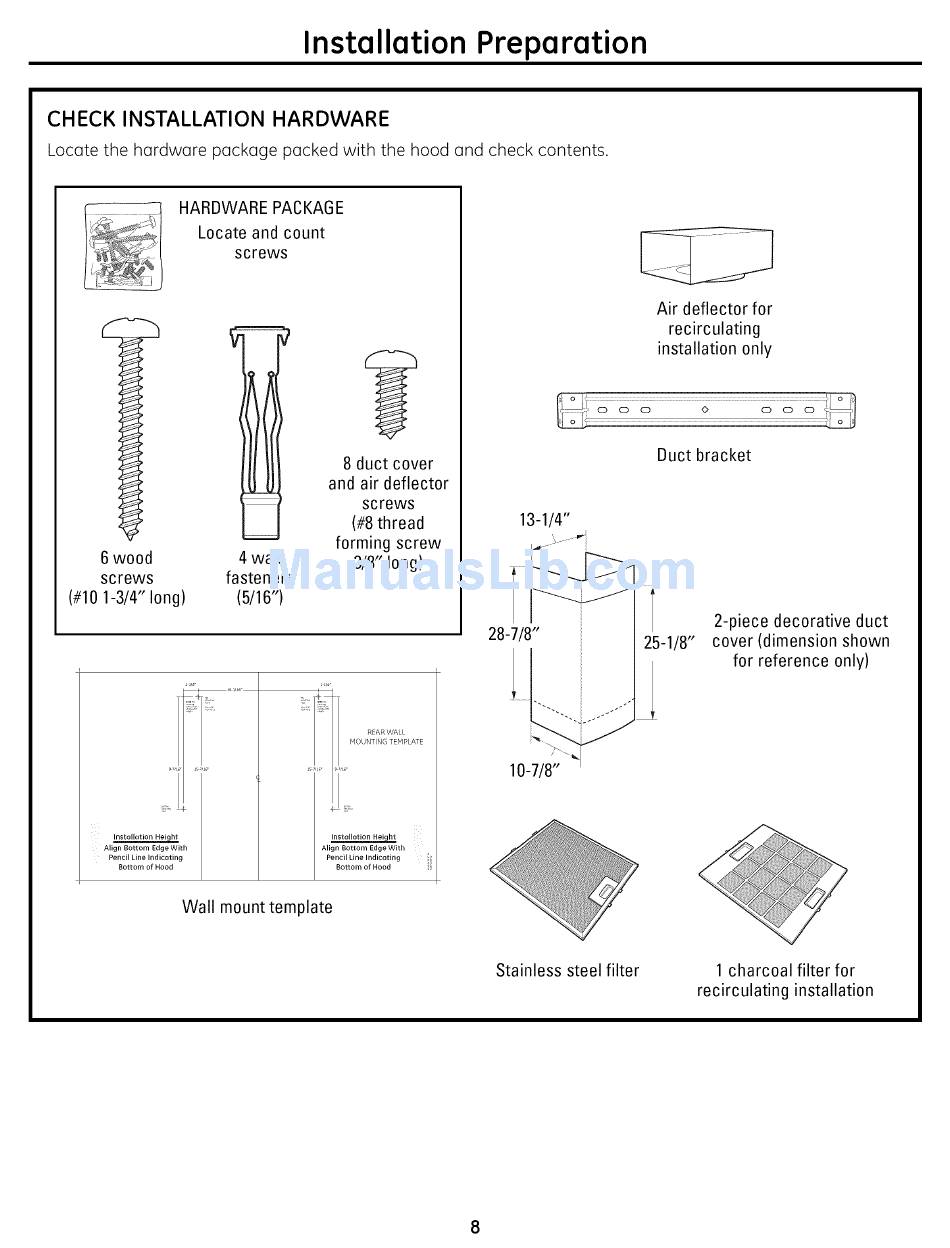

CHECK INSTALLATION HARDWARE
Locate the hardware package packed with the hood and check contents.
HARDWARE PACKAGE
Locate and count
screws
d
6wood
screws
(#10 1-3/4" long)
4 wall
fasteners
(5/16")
8 duct cover
and air deflector
screws
(#8 thread
forming screw
3/8" long)
Installation Height
Align Bottom Edge With
Pencil Line Indicating
Bottom of Hood
REAR WALL
HOUNTING TEMPLATE
Installation Hei ht
Align Bottom Edge With
Pencil Line Indicating
Bottom of Hood
Wall mount template
Air deflector for
recirculating
installation only
Duct bracket
13-1/4"
2-piece decorative duct
cover (dimension shown
for reference only)
Stainless steel filter 1 charcoal filter for
recirculating installation
