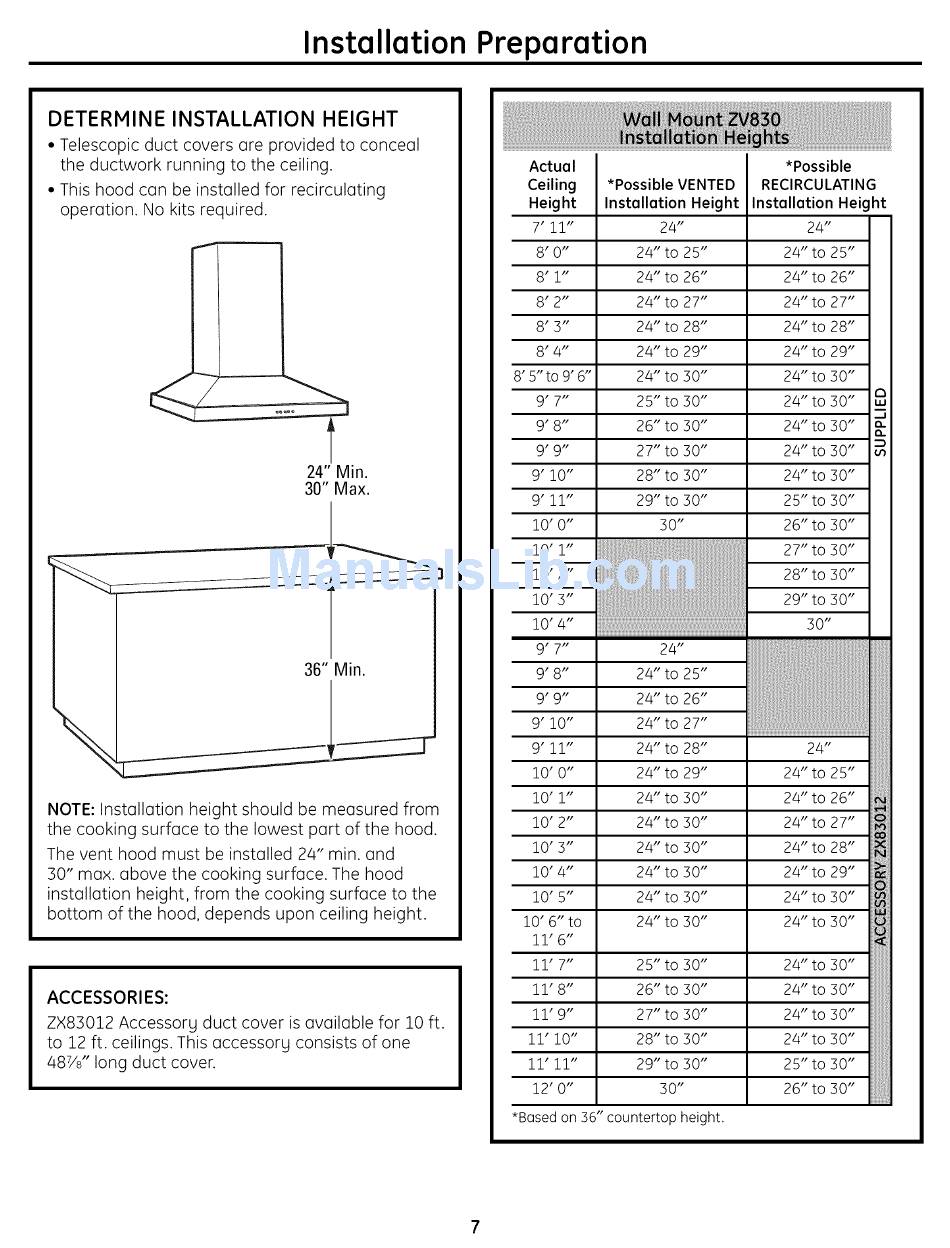

Installation Preparation
DETERMINE INSTALLATION HEIGHT
• Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for recirculating
operation. No kits required.
24" Min.
30" Max.
36" Min.
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
The vent hood must be installed 2/4" min. and
30" max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.
ACCESSORIES:
ZX83012 Accessory duct cover is available for 10 ft.
to 12 ft. ceilings. This accessory consists of one
487/8" long duct cover.
Actual
Ceiling
Height
7'11"
8'0"
8'1"
8'2"
8'3"
8'4"
8' 5" to 9' 6"
9'7"
9'8"
9'9"
9' 10"
9'11"
10' O"
10' 1"
10'2"
i0'3"
10' 4"
9'7"
9'8"
9'9"
9' 10"
9'11"
10'0"
10' 1"
10'2"
i0'3"
10' 4"
10' 5"
10' 6"to
11'6"
11'7"
11'8"
11'9"
11' 10"
11' 11"
12'0"
*BQsed
*Possible VENTED
Installation Height
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
on 36" countertop height.
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
