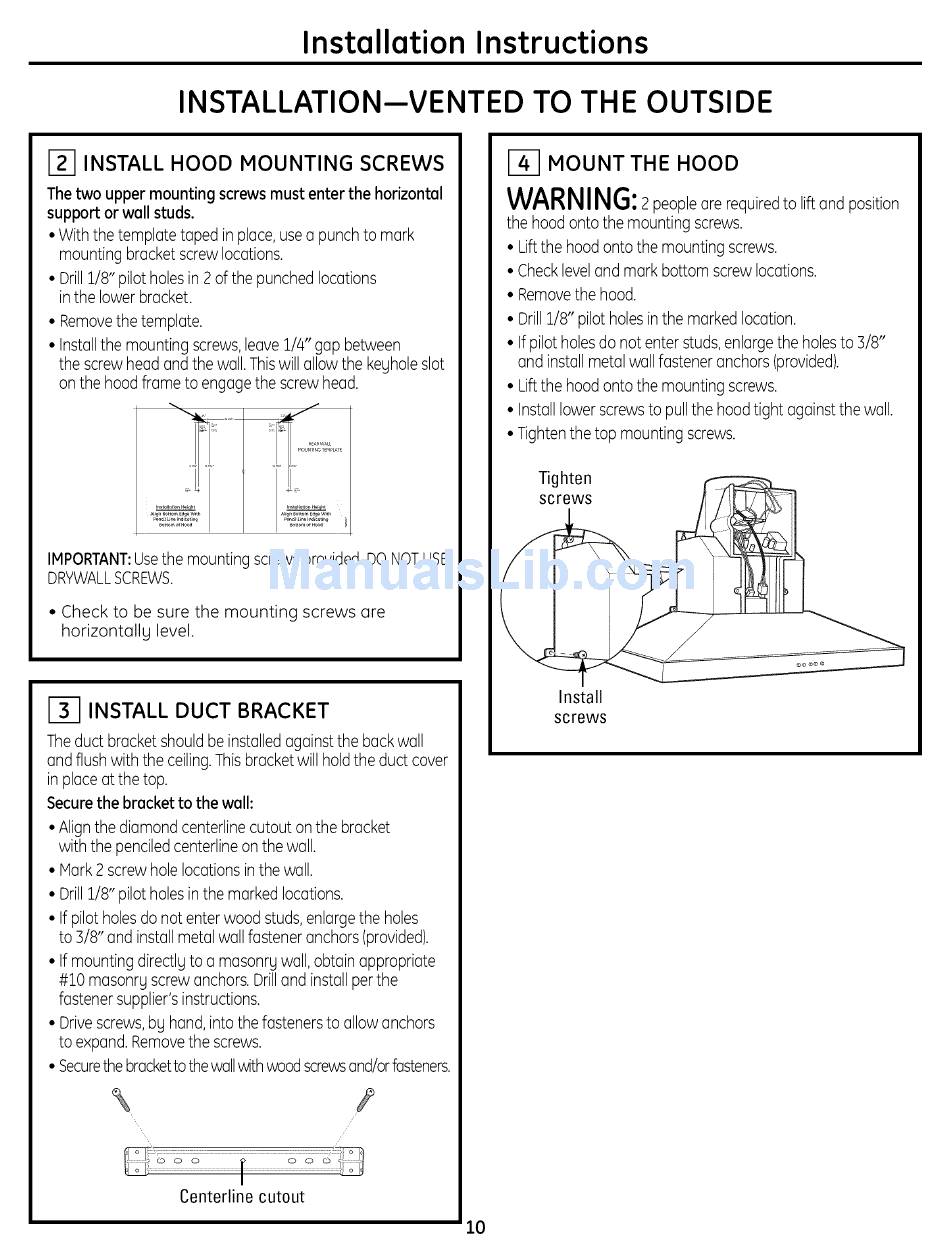

INSTALLATION--VENTED TO THE OUTSIDE
INSTALL HOOD MOUNTING SCREWS
The two upper mounting screws must enter the horizontal
support or wall studs.
• With the template taped in place, use a punch to mark
mounting bracket screw locations.
• Drill 1/8" pilot holes in 2 of the punched locations
in the lower bracket.
• Removethe template.
• Installthe mounting screws, leave 1/4" gap between
the screw head and the wall. This will allow the keghole slot
on the hood frame to engage the screw head.
IMPORTANT: Usethe mounting screws provided. DO NOTUSE
DRYWALL SCREWS.
• Check to be sure the mounting screws ore
horizontallg level.
INSTALL DUCT BRACKET
The duct bracket should be installed against the back wall
and flush with the ceiling.This bracket will hold the duct cover
in place at the top.
Secure the bracket to the wall:
• Align the diamond centerline cutout on the bracket
with the penciled centerline on the wall.
• Hark 2 screw hole locations in the wall.
• Drill 1/8" pilot holes in the marked locations.
• If pilot holesdo not enter wood studs, enlarge the holes
to 3/8" and install metal wall fastener anchors (provided).
• If mounting directlg to a masonrg wall, obtain appropriate
#10 masonrL screw anchors. Drilland install per the
fastener supplier's instructions.
• Drive screws bg hand, into the fasteners to allow anchors
to expand. Removethe screws.
• Securethe bracketto the wallwith woodscrewsand/or fasteners.
/ /
/"
Centerline cutout
10
MOUNT THE HOOD
WARNING:2people
are required to lift and position
the hood onto the mounting screws.
• Lift the hood onto the mounting screws.
• Checklevel and mark bottom screw locations.
• Removethe hood.
• Drill 1/8" pilot holes in the marked location.
• If pilot holes do not enter studs,enlarge the holes to 3/8"
and install metal wall fastener anchors (provided).
• Lift the hood onto the mounting screws.
• Install lower screws to pull the hood tight against the wall.
• Tighten the top mounting screws.
Tighten
screws
Install
screws
