Installation Preparation

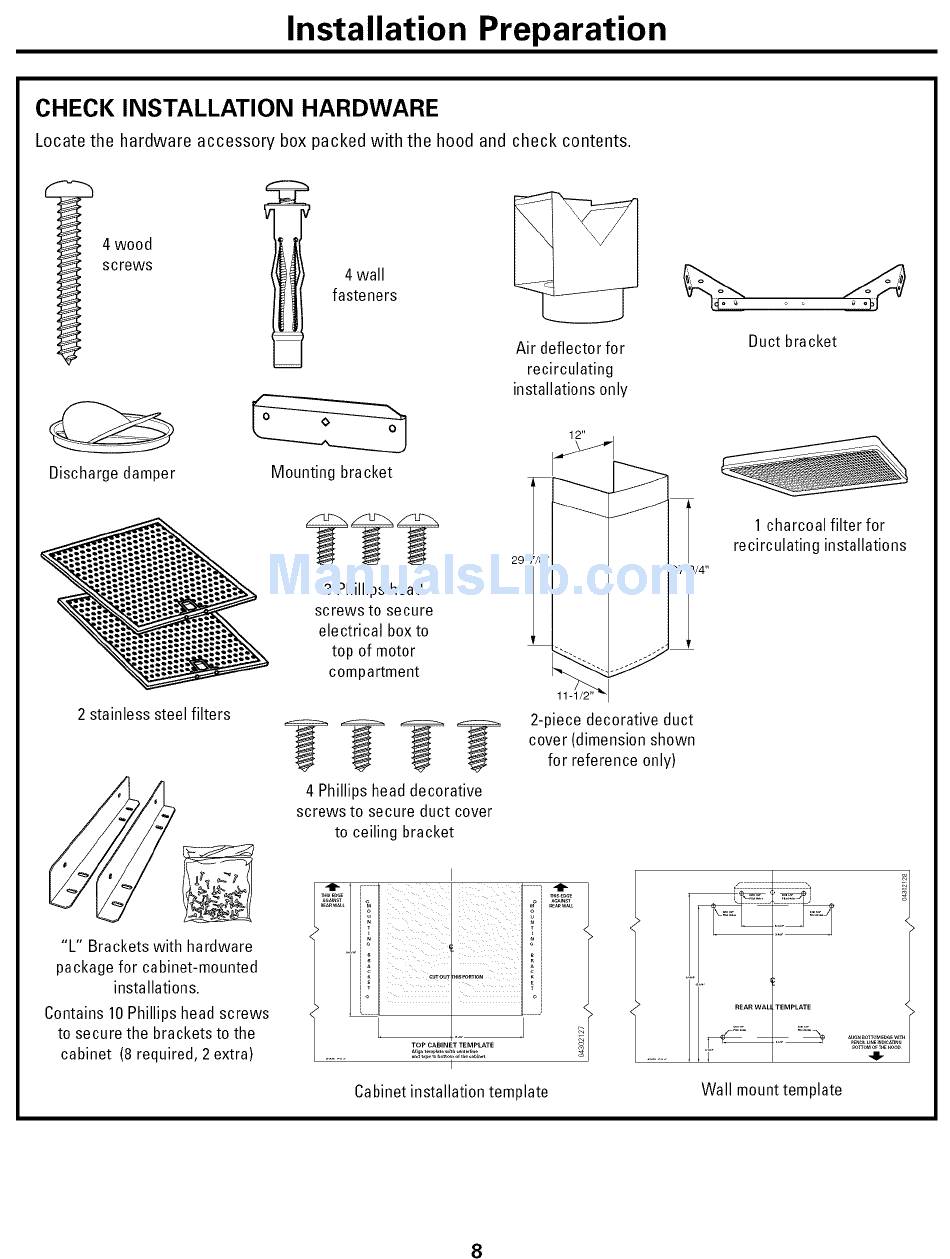

CHECK INSTALLATION HARDWARE
Locate the hardware accessory box packed with the hood and check contents.
i
4 wood
screws
4 wall
fasteners
I j
Air deflector for
recirculating
installations only
Duct bracket
Discharge damper
2 stainless steel filters
"L" Brackets with hardware
package for cabinet-mounted
installations.
Contains 10 Phillips head screws
to secure the brackets to the
cabinet (8 required, 2 extra)
Mounting bracket
3 Phillips head
screws to secure
electrical box to
top of motor
compartment
TTTT
4 Phillips head decorative
screws to secure duct cover
to ceiling bracket
29 j4
2-piece decorative duct
cover (dimension shown
for reference only)
1 charcoal filter for
recirculating installations
I
i t i"
_i i _I _
=_i i."l
i!'_II _ _
TOP CABINET TEMPLATE
I
Cabinet installation template
RE,_RWAI
t
TEMPLATE
41-
Wall mount template
8
