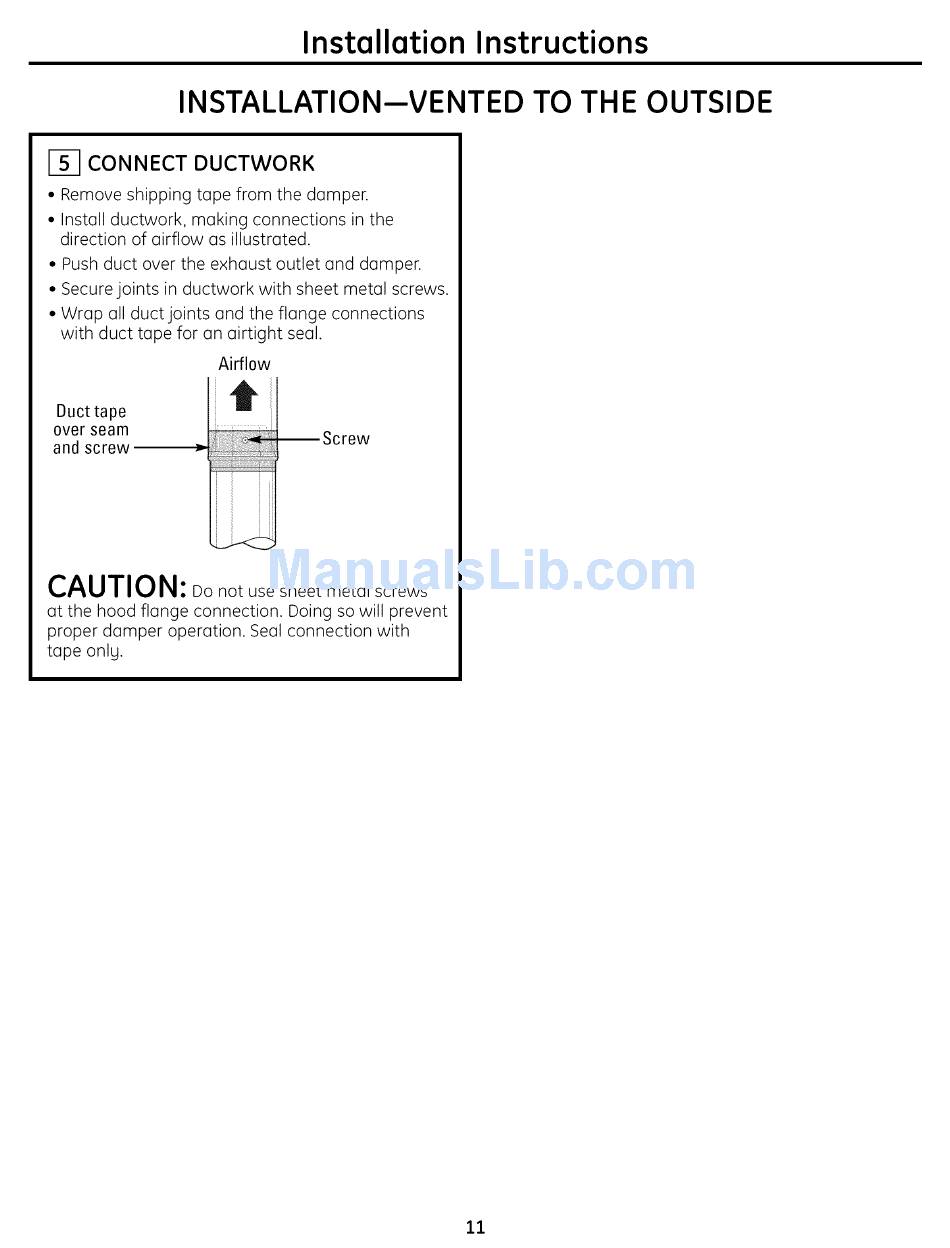

Installation Instructions
INSTALLATION--VENTED TO THE OUTSIDE
CONNECT DUCTWORK
• Remove shipping tape from the damper.
• Install ductwork, making connections in the
direction of airflow as illustrated.
• Push duct over the exhaust outlet and damper.
• Secure joints in ductwork with sheet metal screws.
• Wrap all duct joints and the flange connections
with duct tape for an airtight seal.
Airflow
Duct tape
over seam
and screw
_w
CAUTION:
Do not use sheet metal screws
at the hood flange connection. Doing so will prevent
proper damper operation. Seal connection with
tape only.
