GE Monogram ZV855SPSS Dimensions And Installation Information

ZV855SPSS
GE Monogram

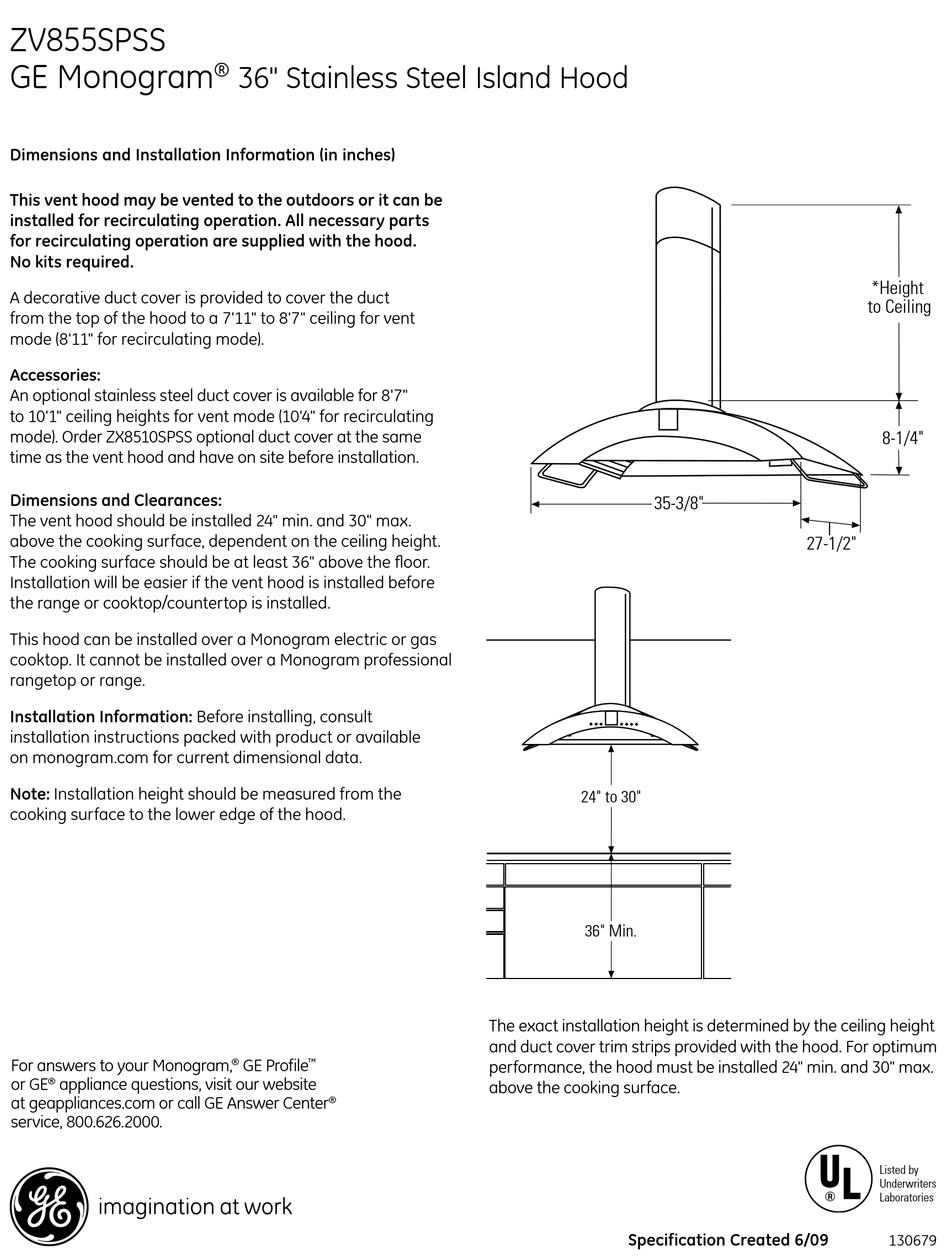

Dimensions and Installation Information (in inches)
This vent hood may be vented to the outdoors or it can be
installed for recirculating operation. All necessary parts
for recirculating operation are supplied with the hood.
No kits required.
A decorative duct cover is provided to cover the duct
from the top of the hood to a 7'11" to 8'7" ceiling for vent
mode (8'11" for recirculating mode).
Accessories:
An optional stainless steel duct cover is available for 8'7"
to 10'1" ceiling heights for vent mode (10'4" for recirculating
mode). Order ZX8510SPSS optional duct cover at the same
time as the vent hood and have on site before installation.
Dimensions and Clearances:
The vent hood should be installed 24" min. and 30" max.
above the cooking surface, dependent on the ceiling height.
The cooking surface should be at least 36" above the floor.
Installation will be easier if the vent hood is installed before
the range or cooktop/countertop is installed.
This hood can be installed over a Monogram electric or gas
cooktop. It cannot be installed over a Monogram professional
rangetop or range.
Installation Information: Before installing, consult
installation instructions packed with product or available
on monogram.com for current dimensional data.
Note: Installation height should be measured from the
cooking surface to the lower edge of the hood.
For answers to your Monogram,
or GE appliance questions, visit our website
®
at geappliances.com or call GE Answer Center
service, 800.626.2000.
®
36" Stainless Steel Island Hood
GE Profile
® ™
®
35-3/8"
605Dia150
24" to 30"
36" Min.
The exact installation height is determined by the ceiling height
and duct cover trim strips provided with the hood. For optimum
performance, the hood must be installed 24" min. and 30" max.
605Dia151
above the cooking surface.
Specification Created 6/09
*Height
to Ceiling
8-1/4"
27-1/2"
Listed by
Underwriters
Laboratories
130679
