BIOS
4-7 PC Health Status

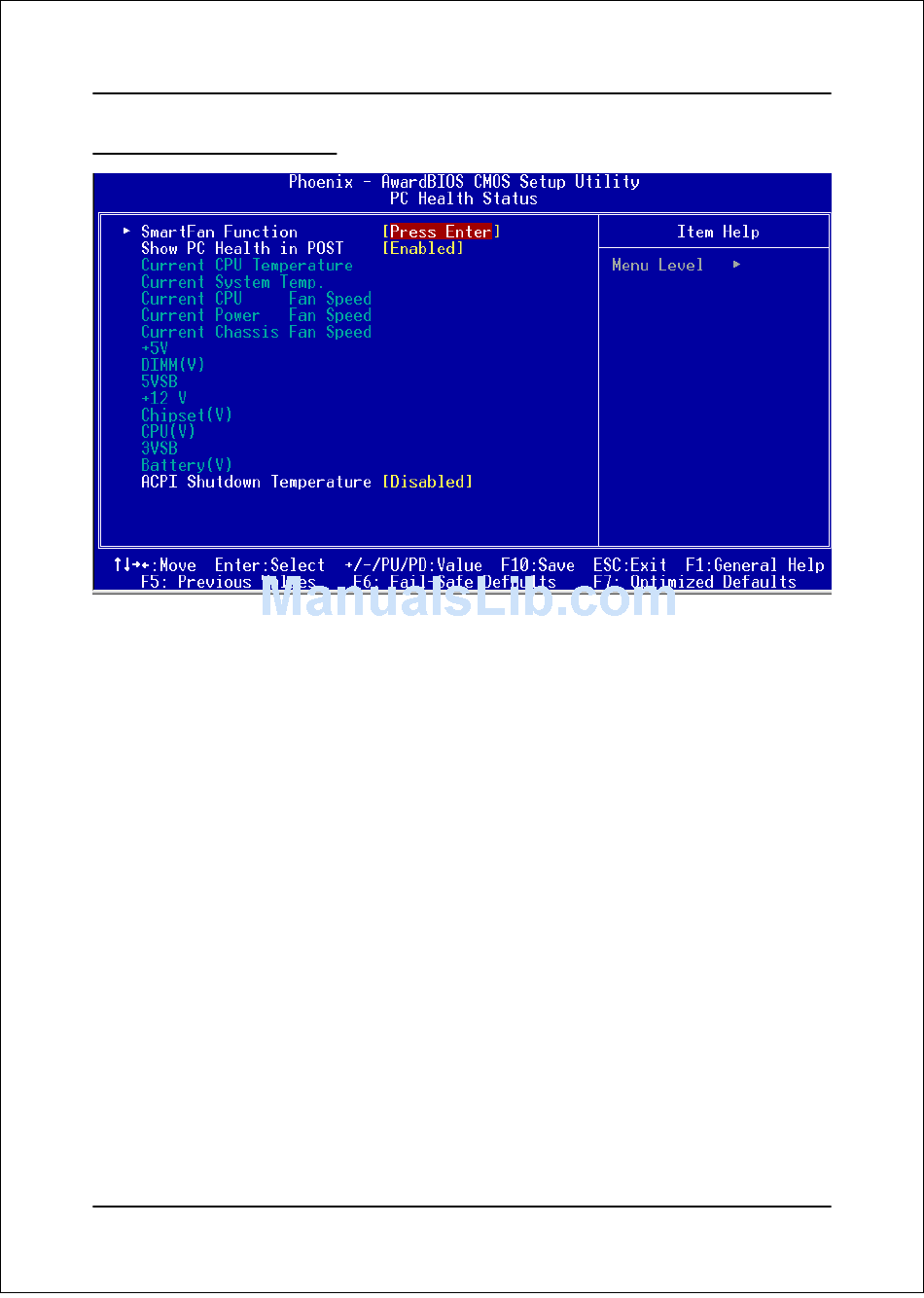

Figure 8: PC Health Status
Show PC Health in POST
When this function is enabled the PC Health information is displayed during the
POST (Power On Self Test).
Options: Enabled, Disabled.
Current CPU/System Temperature
Displays the current CPU/system temperature.
Current CPU/Power/Chassis FAN Speed
Displays the current speed of the CPU, chassis, and power fan speed in RPMs.
DIMM (V)
The voltage level of the DRAM.
5VSB
The voltage level of the switching power supply.
CPU (V)
The voltage level of the CPU(Vcore).
Chipset (V)
The voltage level of the Chipset.
Page 4-17
