<Figure 3>

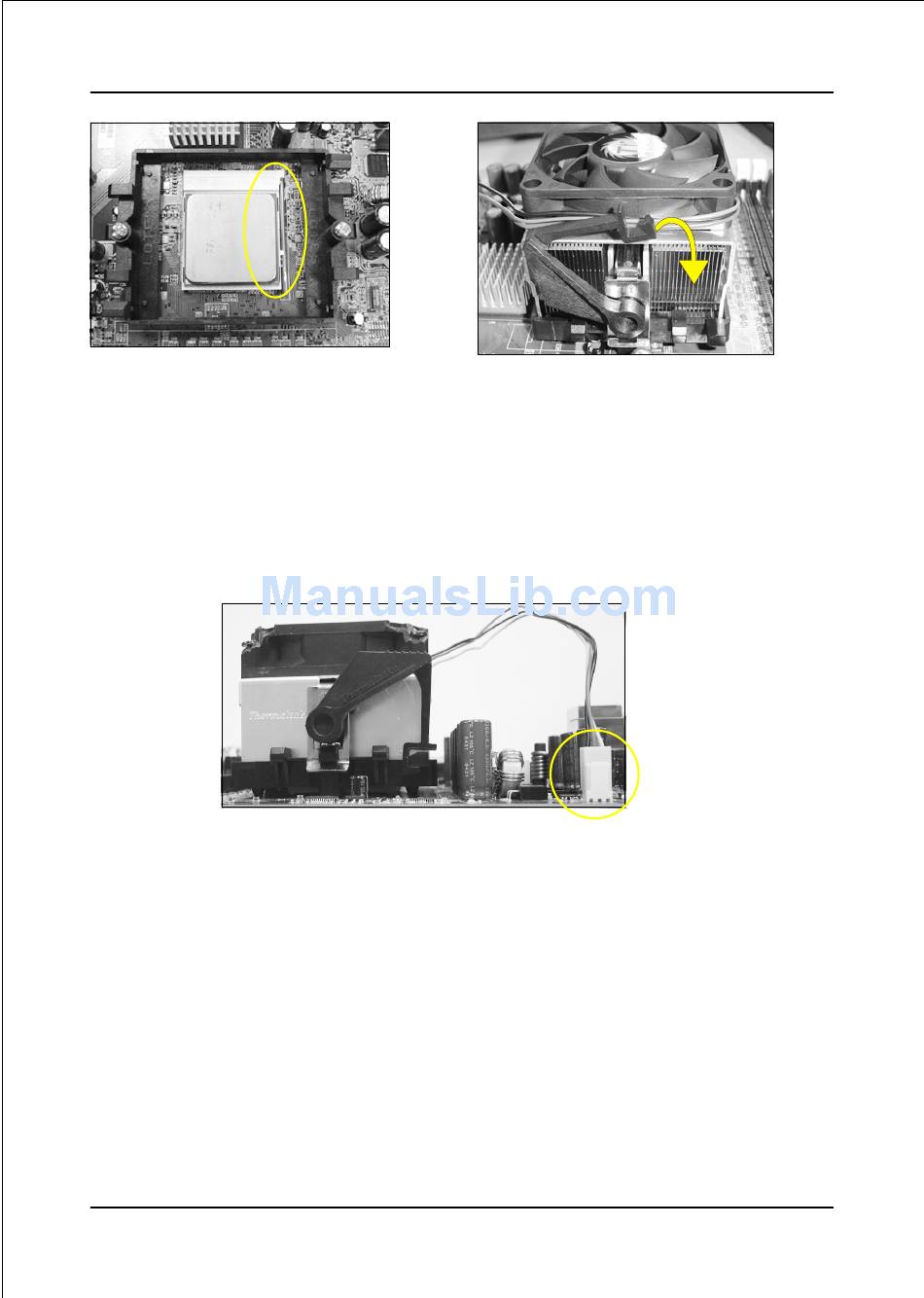

Step 3
Close the socket by lowering and
locking the actuation lever.
Apply thermal compound to the top of
the CPU.
Step 5
Plug the CPU fan power into the mainboard's
CPU fan connector.
The installation is complete.
Step 4
Insert the heatsink as shown above.
Press the clips in the direction of the
arrows shown in Figure 4 to secure the
assembly to the CPU socket.
<Figure 5>
Installation
<Figure 4>
Page 3-3
