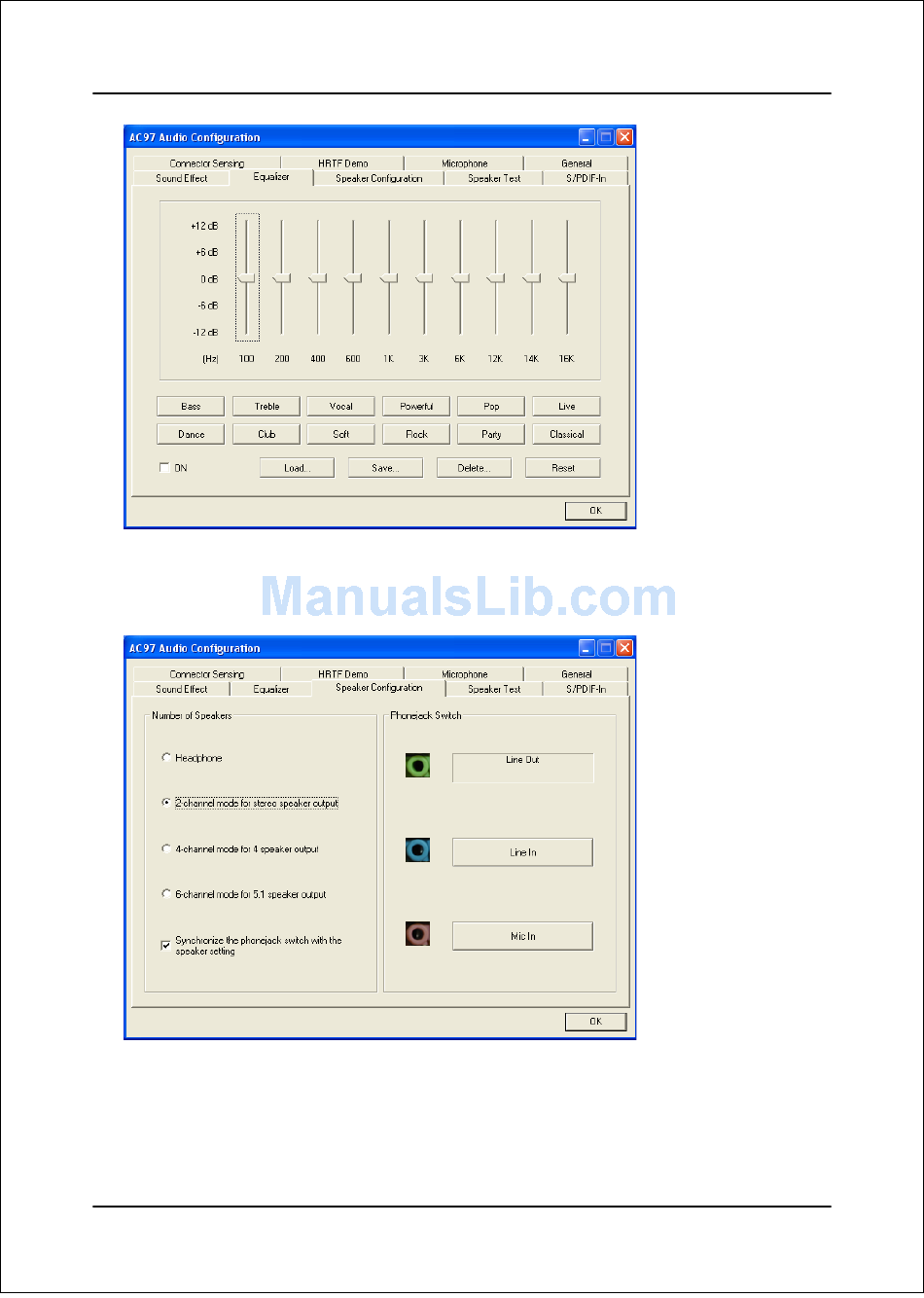

3. There are 10 bands of equalizer control, check "ON" when you want to adjust
the equalizer.
4. This page displays the mainboards's phone jack function when a corresponding
audio mode (no. of speaker) is selected.
Figure 4 above shows the phone jack setup for 2 channel mode.
Driver Installation
Equalizer:
<Figure 3>
Speaker
Configuration:
<Figure 4>
Page 6-3
