Zte MF10 User Manual

Zte MF10 User Manual

Fixed wireless adapter
Hide thumbs Also See for MF10:
Table of Contents

Advertisement

Quick Links

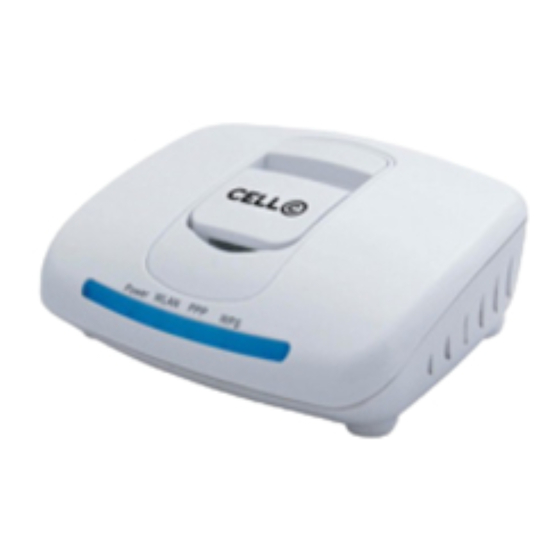

MF10 Wireless Router
Fixed Wireless Adapter
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Zte MF10

Summary of Contents for Zte MF10

  • Page 1 MF10 Wireless Router Fixed Wireless Adapter User Manual...
  • Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
  • Page 3 Thank you for choosing the ZTE MF10 Wireless Router (hereinafter referred to as "router"). The Wireless Router comprises two parts, one is a MF10 Fixed Wireless Adapter, and the other is a USB modem. The router supports Internet service, and offers you the connection to the Internet with LAN or WLAN.
  • Page 4 Glossary 　 AC: Alternating Current • 　 N: Access Point Name • 　 DC: Direct Current • 　 DHCP: Dynamic Host Control Protocol • 　 DNS: Domain Name System (or Service or Server) • 　 EDGE: Enhanced Data GSM Evolution •...
  • Page 5 　 -PSK: Wi-Fi Protected Access–PreShared Key • 　 WiMAX: Worldwide Interoperability for Microwave Access • 　 WPS: Wi-Fi Protected Setup •...

  • Page 6: Table Of Contents

    Contents General Information......................8 Safety Precautions......................8 Cleaning and Maintaining....................8 Limited Warranty......................9 Limitation of Liability....................... 9 Declaration ........................9 Getting started ........................11 Parts Supplied ......................... 11 Appearance........................11 LED Indicator ......................11 Interface Description....................13 Installation........................13 Inserting the modem....................
  • Page 7 Logout ..........................33 Disconnecting from the Internet ..................34 Troubleshooting ........................35 Technical Parameters ......................36...

  • Page 8: General Information

    Do not use your router in dangerous environments such as oil terminals or chemical factories where there • are explosive gases or explosive products being processed. Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may • affect the router performance, damage the router or cause danger to you.

  • Page 9: Limited Warranty

    ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not ZTE had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.
  • Page 10 The user is cautioned that changes or modifications not expressly approved by the manufacturer could • void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device •...

  • Page 11: Getting Started

    The router operates on the WiMAX network and supports data service. Parts Supplied Parts Quantity Wireless Router *USB Modem External power adapter User manual Certificate of quality *In this manual, the USB Modem is produced by ZTE. Appearance Bottom LED Indicator...
  • Page 12 Indicator State Description 1. POWER External power supply works normally. External power supply is disconnected or power off. 2. WLAN WLAN works normally. Blinking Data transmission WLAN works abnormally. 3. PPP Internet connected Blinking The router attempts to connect Internet. Internet disconnected and not attempt to connect.

  • Page 13: Interface Description

    Interface Description 1. WPS: WPS button is used to start Wi-Fi Protected Setup authentication process. 2. LAN 1: Ethernet connections to computer. 3. LAN 2: Ethernet connections to computer. 4. POWER Socket: Connection to the external power supply. 5. POWER Switch: Turn the router ON or OFF. Hold on for 7 seconds to restore the factory default settings.

  • Page 14: Connecting Computer

    Warning: Please power off the router and remove the external power adapter before removing or inserting the modem, if not, the router or modem may be damaged. Connecting computer Connect your computer to the LAN interface using the Ethernet cable (RJ45). Notes: The router will adapt the Ethernet cable style (crossover or straight) automatically.

  • Page 15: Notes On Service And Coverage

    Notes on Service and Coverage If you cannot get service, make sure that: You are in an area which has sufficient network coverage. • Please wait 1-2 minutes for the modem to initialize, attach to the network and obtain an IP address. •...

  • Page 16: Internet Access

    After making changes reboot your router by turn off and on again. Login The router can be connected by RJ45 or by Wi-Fi (the SSID is “ZTE Wireless Network”). By either...
  • Page 17 connection mode, you should set to obtain an IP address automatically in the attribution setting of Internet protocol (TCP/IP). After your computer gets the IP address (like 192.168.0.101) from the router, open a web browser and type “http://192.168.0.1” in the address bar, and then input the username and password to log in. You can use administrator or user to log in, but user only can view the status of router, the administrator can configure the router, and the default administrator user name and password are as followings: User Name: admin...

  • Page 18: Wan Connection

    The whole page is divided into two parts. Related functions can be executed by operation in the related areas. Index area: Show configuration list for your router. • Content area: Show the detail configuration. • WAN Connection WiMAX Connection Select WAN Connection > WiMAX Connection, the WiMAX connection is shown in the following figure: Click connect to connect to the network, or click disconnect to disconnect from network.
  • Page 19 Bandwidths: Select the bandwidth. • Search Mode: There are two choosing modes: Frequency List and Frequency Band. • Frequency List Settings: Set the frequency for each channel. • Frequency Band Settings: Set the frequency band for each channel • Click Apply to confirm your configuration. WiMAX Authentication Select WiMAX Settings >...

  • Page 20: Router

    Default Password: Detailed please consult your service provider. • Re-enter To Confirm: Detailed please consult your service provider. • WiMAX Certificate Update: Update the certificate file(s) provided by your service provider. • Click Apply to confirm your configuration. If the Authentication type is EAP-TTLS/MSCHAPv2, the parameters are shown in the following figure: If the Authentication type is EAP-MD5, the parameters are shown in the following figure: Router Select Router >...

  • Page 21: Wi-Fi Settings

    IP Address: LAN IP address of the router. • Subnet Mask: Subnet mask of the router. • MAC Address: MAC address of the LAN interface. • DHCP Type: The router is set up as a DHCP server, which provides IP address in IP pool range for all •...
  • Page 22 Wi-Fi On/Off: Select On or Off to set the WIFI On or Off. • Network Mode: Including 11b/g Mixed Mode, 11b only,11g only and 11b/g/n Mixed Mode. • Network Name(SSID): Service Set Identifier. Enter a string not more than 32 characters as the name for •...
  • Page 23 Channel BandWidth: Set the HT physical channel bandwidth. • Guard Interval: Set the HT physical guard interval. • MCS: Set fix MCS rate for HT rate. • Reverse Direction Grant(RDG):Enable RDG or not. • Extension Channel: Set extension channel. The extension channel is also able to send and receive data. •...
  • Page 24 RTS Threshold: Set the wireless network RTS threshold. • TX Power: Set the wireless network TX power. • Short Preamble: Disable short preamble or not. • Short Slot: Enable short slot or not. • Tx Burst: Enable Tx burst or not. •...
  • Page 25 WEPAUTO: Select WEP security automatically. • WPA-PSK: WPA Pre-Shared Key, Enter the Pre-Shared key as a plain text (ASCII) pass-phrase of at • least 8 characters. WPA2-PSK:It is the securer version of WPA with implementation of the 802.11i standard. • WPA-PSK/WPA2-PSK: Apply both the WPS-PSK and WPA2-PSK scheme.

  • Page 26: Firewall

    This function is to simplify the security setup of Wi-Fi networks. This Router supports the configuration setup using PIN configuration method or PBC configuration method. Select Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure: Select Enable, and then click Apply to configure the details. The following figure shows you the current configuration of WPS.
  • Page 27 Default Policy: Set how to handle the packet if none of the rules matches. • MAC address: Set the MAC address that will be filtered. • Dest IP Address: Set the destination IP address that will be filtered. • Source IP Address: Set the source IP address that will be filtered. •...
  • Page 28 Type URL address, and then click Add to add the URL address into the filtering list. The new URL filtering item will be shown in the Current URL Filter area. Click Reset within the Current URL Filter area to uncheck boxes before all rules. Click Reset within the ADD a URL filter area to clear your URL address.
  • Page 29 IP Address: Set IP address for the hosts • Port Range: Set port numbers for the virtual server. • Protocol: Set protocol for the virtual server. • Comment: Type comment for the virtual server settings. • Click Apply to confirm your configuration. And the current virtual servers will be shown in the current virtual servers in system area.

  • Page 30: Advanced

    Allow or Deny the remote management function, and Enable or Disable ping from WAN filter on requirement, and then click Apply to confirm your configuration. Advanced Settings Select Firewall > Advanced Settings, the advanced settings is shown in the following figure: Enable or Disable DNS Proxy and NAT function, and then click Apply to confirm your configuration.
  • Page 31 Management Select Advanced > Management, the administrator settings information is shown in the following figure: To set new account, type new account and password, and then click Apply to confirm your configuration, click Cancel to clear your configuration. Notes: If you change the Account or Password, please make sure that you can remember the new Account or Password.
  • Page 32 Click Browse... locate the latest software version, and then click Upgrade. Notes: Do not upgrade software unless necessary. Wrongly upgrade action may cause router malfunction or can not work. Remote Upgrade Select Advanced > Remote Upgrade to upgrade the software version of the router. Upgrade mode: There are two modes: FTP and TFTP.

  • Page 33: Logout

    DDNS Settings Select Advanced > DDNS Settings, the DDNS settings information is shown in the following figure: Type DDNS Settings related parameters, and then click Apply to confirm your configuration. System Log Select Advanced > System Log, the system log is shown in the following figure: Click Refresh to update the system log.

  • Page 34: Disconnecting From The Internet

    2. Click OK to log out. Disconnecting from the Internet Select disconnect from WAN Connection page, if you want to terminate your Internet connection. Tips: Turn off the router can also terminate Internet connection.

  • Page 35: Troubleshooting

    C h a p t e r Troubleshooting 1. Make sure that the router is turned on and all the cables are connected correctly. 2. Check the PPP, WLAN and POWER LEDs are all in normal state. Internet Related Problems Symptoms Possible Problems/ Solutions I cannot access the internet at all.

  • Page 36: Technical Parameters

    A p p e n d i x Technical Parameters MF10 Fixed Wireless Adapter LED Display: • i. Power Indicator ii. WLAN Indicator iii. PPP Indicator iv. WPS Indicator External Interface: • i. External Power Socket ii. Data Interface (LAN) Power Adapter: •...
