Set the start month to use during Daylight Saving mode. Default is April.
Start Month:
Set the start weekday to use during Daylight Saving mode. Default is Sunday.
Start Day:
Set the start time to use during Daylight Saving mode. Default is 02:00 (hh:mm).
Start Time:
Daylight Saving End Time
Set the end ordinal to use during Daylight Saving mode. Select the week in which daylight saving time
End Ordinal:
ends. Options are first/second/third/fourth/last. Default is last.
Set the end month to use during Daylight Saving mode. Default is October.
End Month:
Set the end weekday to use during Daylight Saving mode. Default is Sunday.
End Day:
Set the end time to use during Daylight Saving mode. Default is 02:00 (hh:mm).
End Time:
Submit Button
Click the Submit button to save these settings.
You must click Save and Restart once you have completed and submitted all the screens on which you have made
Note:
changes.

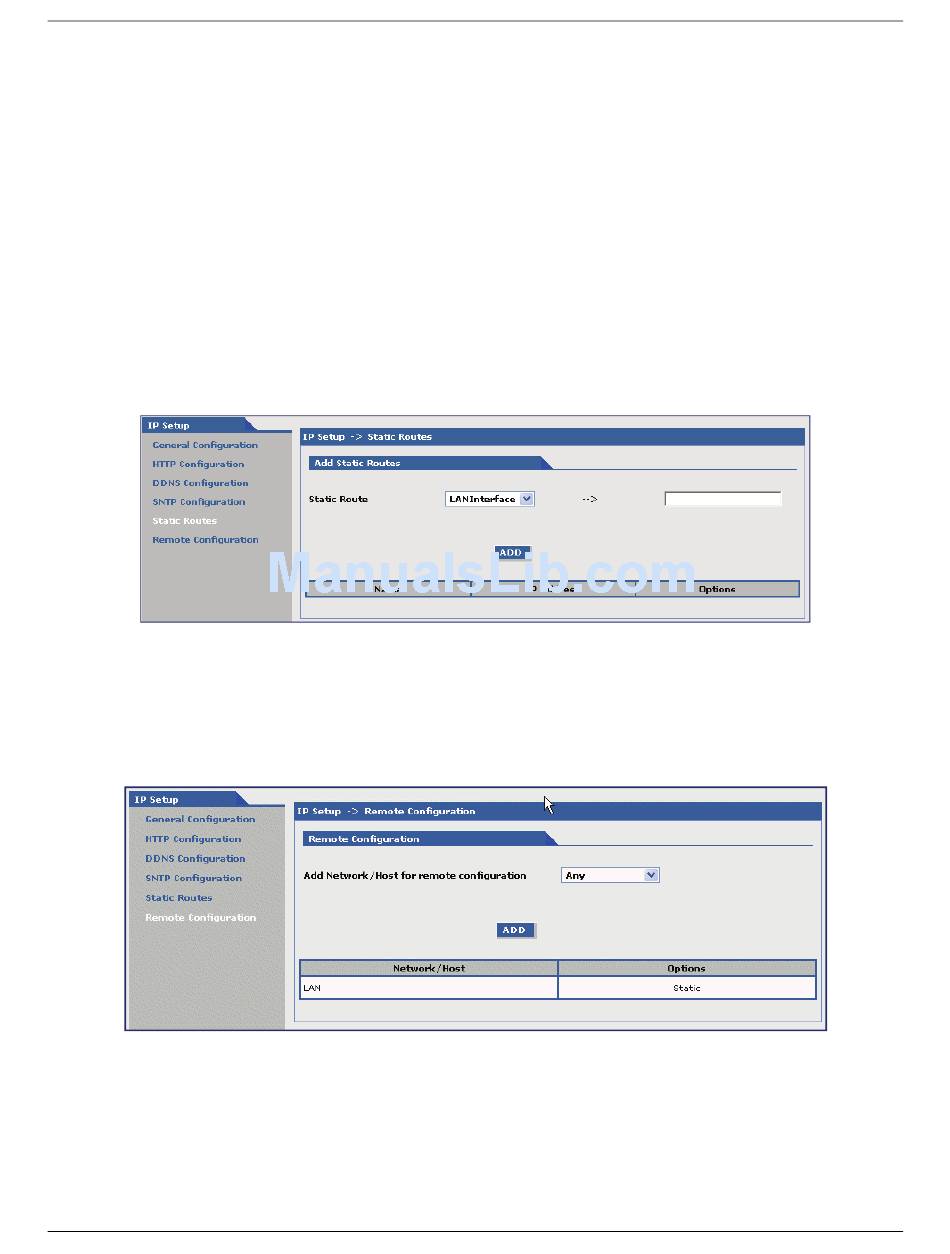

IP Setup > Static Routes
Routing information is used by every computer connected to a network to identify whether it is sending a data packet directly
to the firewall or passing it on to another network. The options to Delete or Edit a route after it has been defined and added are
available by using the table at the bottom of the screen.
Add Static Routes
IP packets destined for the network indicated in the drop down box are routed to the IP address in the box pointed to by the
arrow. The networks in the drop down box can be defined under the 'Networks & Services' tab.
Select a static route from the drop down list box, and then click the Add button.
Static Route:
After clicking the Add button, the new route is added and will display at the bottom of the screen.
Add Button:
Important Note:
The Static Route screen will not display until the network is defined under Networks & Services.
IP Setup > Remote Configuration
Remote Configuration
Add Network/Host for Remote Configuration:
Select a network or host from the drop down box. You can define more network or host under the Network &
Services tab. The choices are Any, LAN, and WAN Interface. Choose all that apply. Click the Add button
after each selection.
After clicking the Add button, the network or host is added and displays at the bottom of the screen.
Add Button:
You will have the option to delete Any and WAN Interface in the Options window once it is added. Click on
Delete:
Delete in the Options window.
Multi-Tech Systems, Inc. MultiModem rCell User Guide
Chapter 3 – Using the Web Management Software
27
