Chapter 2 – Activation and Installation

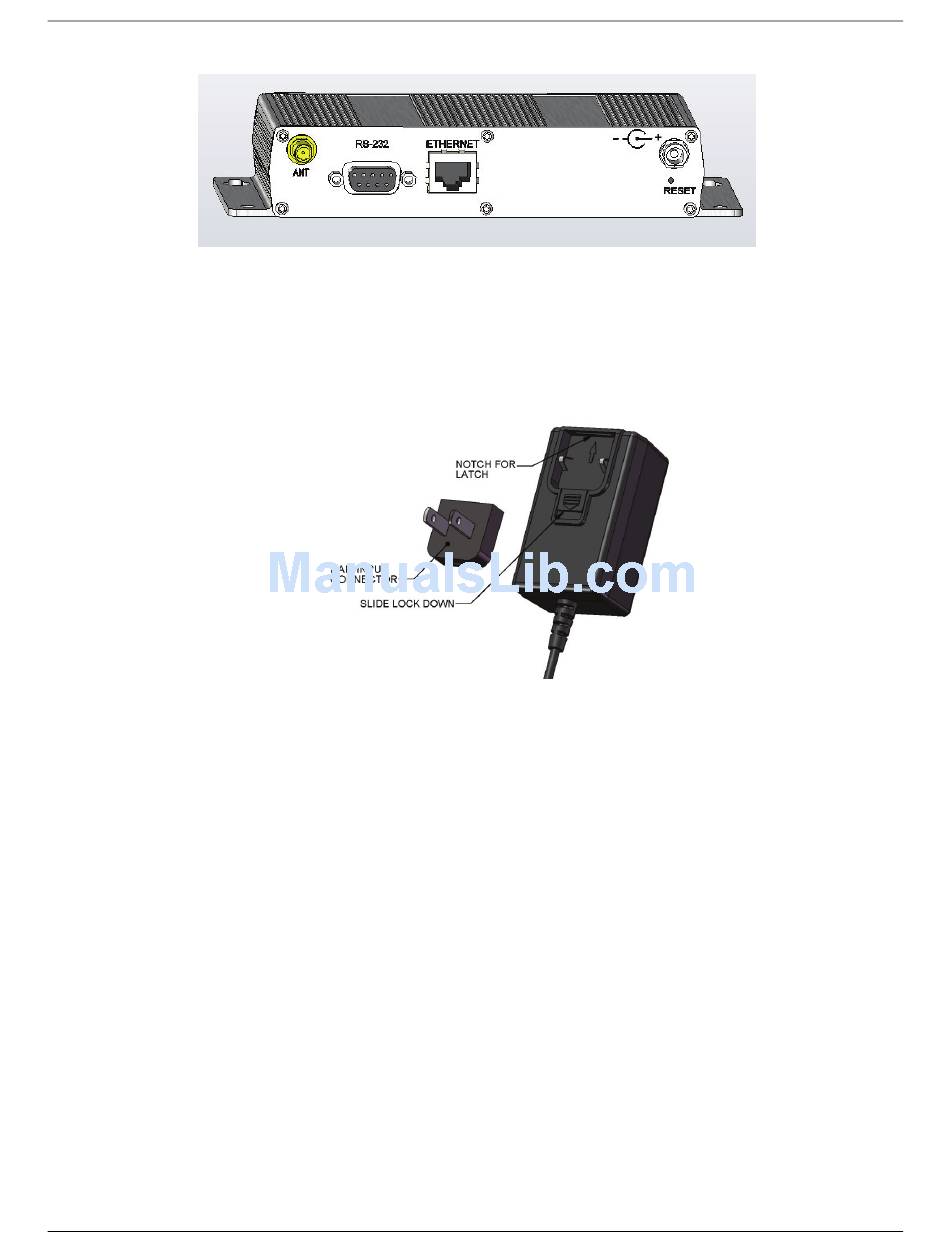

Making the Connection
Connect a suitable antenna to the SMA connector (see antenna specifications in Chapter 1).
1.
Using an Ethernet cable, connect one end of the cable to the ETHERNET connector on the back of the router and
2.
the other end to your pc either directly or via a switch or hub.
The RS-232 connector is provided for future use.
Depending on the power source, connect either the power supply module with the appropriate blade or the optional
3.
DC power cable. If you are using the power supply module, remove the protective shipping cover. Attach the
appropriate interchangeable blade piece to the power supply module.
Screw-on the power lead from the power supply module into the power connection on the router. Now, plug the
4.
power supply into your power source.
For Optional Direct DC Power
Screw-on the DC power cable to the power connector on the router.
•
Then attach the two wires at the other end of the DC power cable to a DC fuse/terminal block on a vehicle in
•
which you are mounting the router.
Connect red wire to the "+" (positive) terminal and black wire to the "–" (negative) terminal. Be sure the GND
•
connection is correct.
Over-voltage protection is provided on the device. To ensure complete protection, you may want to add
Warning:
additional filtering to the DC input.
For automotive application: according to the type of application, you can use permanent "+" or key-
Note:
switched "+" source. Connect the power supply to its source (for example, in a mobile situation, to the
vehicle's DC fuse/terminal block).
Notes
The
POWER LED.
●
●
The
Reset Button.
settings. It also will set the username and password back to admin and admin as well as setting the IP
address to the default of 192.168.2.1.
12
The
LED lights after power-up.
POWER
Pressing and holding the
Reset
button for 5 seconds will restore all factory default
Multi-Tech Systems, Inc. MultiModem rCell User Guide
