4
RECEIVE AND TRANSMIT

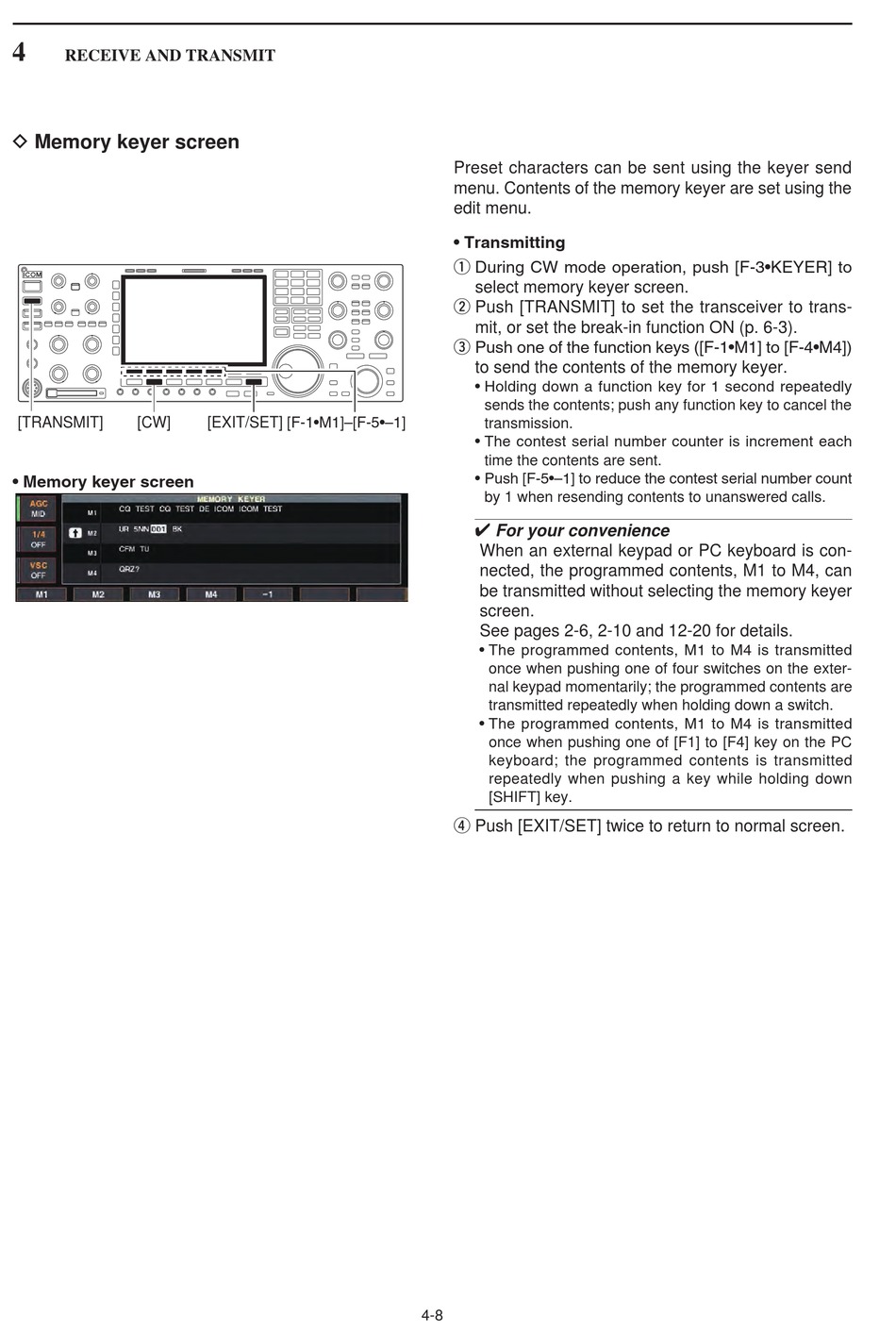

D Memory keyer screen

[TRANSMIT] [CW]
• Memory keyer screen
[F-1•M1]–[F-5•–1]
[EXIT/SET]
Preset characters can be sent using the keyer send
menu. Contents of the memory keyer are set using the
edit menu.
• Transmitting
q During CW mode operation, push [F-3•KEYER] to
select memory keyer screen.
w Push [TRANSMIT] to set the transceiver to trans-
mit, or set the break-in function ON (p. 6-3).
e Push one of the function keys ([F-1•M1] to [F-4•M4])
to send the contents of the memory keyer.
• Holding down a function key for 1 second repeatedly
sends the contents; push any function key to cancel the
transmission.
• The contest serial number counter is increment each
time the contents are sent.
• Push [F-5•–1] to reduce the contest serial number count
by 1 when resending contents to unanswered calls.
✔
For your convenience
When an external keypad or PC keyboard is con-
nected, the programmed contents, M1 to M4, can
be transmitted without selecting the memory keyer
screen.
See pages 2-6, 2-10 and 12-20 for details.
• The programmed contents, M1 to M4 is transmitted
once when pushing one of four switches on the exter-
nal keypad momentarily; the programmed contents are
transmitted repeatedly when holding down a switch.
• The programmed contents, M1 to M4 is transmitted
once when pushing one of [F1] to [F4] key on the PC
keyboard; the programmed contents is transmitted
repeatedly when pushing a key while holding down
[SHIFT] key.
r Push [EXIT/SET] twice to return to normal screen.
4-8
