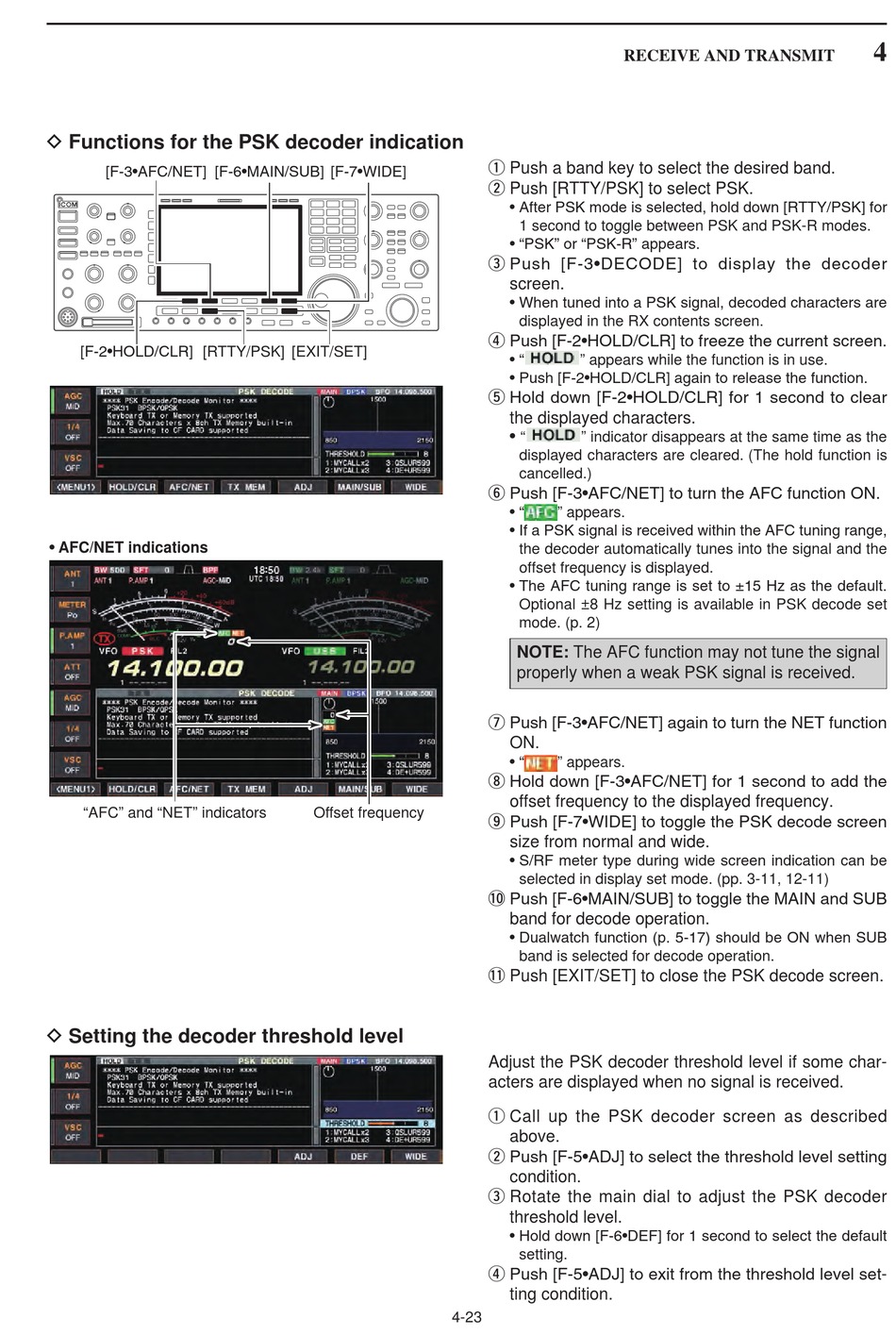

D Functions for the PSK decoder indication

[F-3•AFC/NET] [F-6•MAIN/SUB] [F-7•WIDE]
[F-2•HOLD/CLR] [RTTY/PSK] [EXIT/SET]
• AFC/NET indications
"AFC" and "NET" indicators

D Setting the decoder threshold level

Offset frequency
4-23
RECEIVE AND TRANSMIT
q Push a band key to select the desired band.
w Push [RTTY/PSK] to select PSK.
• After PSK mode is selected, hold down [RTTY/PSK] for
1 second to toggle between PSK and PSK-R modes.
• "PSK" or "PSK-R" appears.
e Push [F-3•DECODE] to display the decoder
screen.
• When tuned into a PSK signal, decoded characters are
displayed in the RX contents screen.
r Push [F-2•HOLD/CLR] to freeze the current screen.
• "
" appears while the function is in use.
• Push [F-2•HOLD/CLR] again to release the function.
t Hold down [F-2•HOLD/CLR] for 1 second to clear
the displayed characters.
•
" " indicator disappears at the same time as the
displayed characters are cleared. (The hold function is
cancelled.)
y Push [F-3•AFC/NET] to turn the AFC function ON.
• "
" appears.
• If a PSK signal is received within the AFC tuning range,
the decoder automatically tunes into the signal and the
offset frequency is displayed.
• The AFC tuning range is set to ±15 Hz as the default.
Optional ±8 Hz setting is available in PSK decode set
mode. (p. 2)
NOTE: The AFC function may not tune the signal
properly when a weak PSK signal is received.
u Push [F-3•AFC/NET] again to turn the NET function
ON.
• "
" appears.
i Hold down [F-3•AFC/NET] for 1 second to add the
offset frequency to the displayed frequency.
o Push [F-7•WIDE] to toggle the PSK decode screen
size from normal and wide.
• S/RF meter type during wide screen indication can be
selected in display set mode. (pp. 3-11, 12-11)
!0 Push [F-6•MAIN/SUB] to toggle the MAIN and SUB
band for decode operation.
• Dualwatch function (p. 5-17) should be ON when SUB
band is selected for decode operation.
!1 Push [EXIT/SET] to close the PSK decode screen.
Adjust the PSK decoder threshold level if some char-
acters are displayed when no signal is received.
q Call up the PSK decoder screen as described
above.
w Push [F-5•ADJ] to select the threshold level setting
condition.
e Rotate the main dial to adjust the PSK decoder
threshold level.
• Hold down [F-6•DEF] for 1 second to select the default
setting.
r Push [F-5•ADJ] to exit from the threshold level set-
ting condition.
