4
RECEIVE AND TRANSMIT

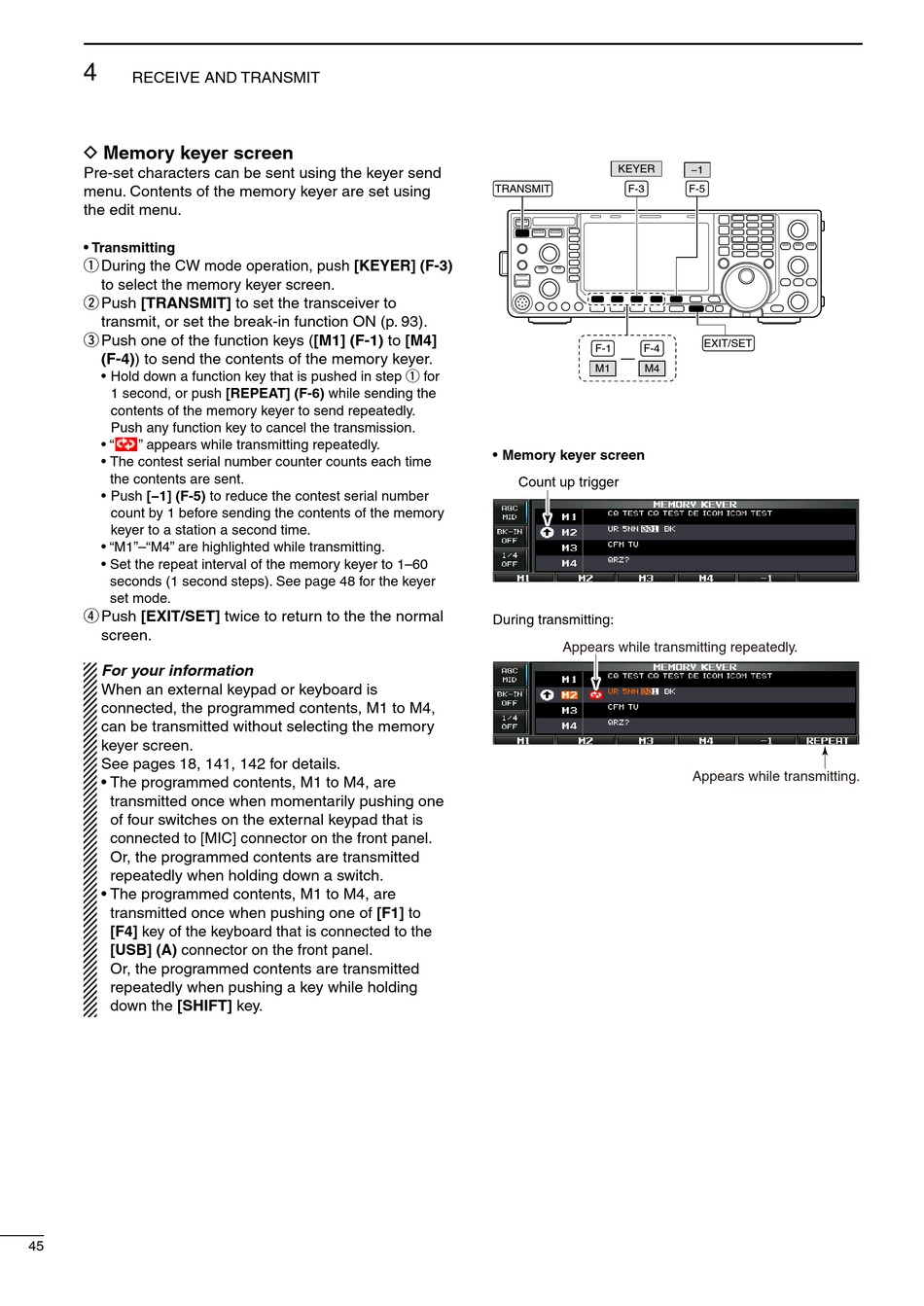

D Memory keyer screen
Pre-set characters can be sent using the keyer send
menu. Contents of the memory keyer are set using
the edit menu.
• Transmitting
q During the CW mode operation, push [KEYER] (F-3)
to select the memory keyer screen.
w Push [TRANSMIT] to set the transceiver to
transmit, or set the break-in function ON (p. 93).
e Push one of the function keys ([M1] (F-1) to [M4]
(F-4)) to send the contents of the memory keyer.
• Hold down a function key that is pushed in step q for
1 second, or push [REPEAT] (F-6) while sending the
contents of the memory keyer to send repeatedly.
Push any function key to cancel the transmission.
• " " appears while transmitting repeatedly.
• The contest serial number counter counts each time
the contents are sent.
• Push [−1] (F-5) to reduce the contest serial number
count by 1 before sending the contents of the memory
keyer to a station a second time.
• "M1"–"M4" are highlighted while transmitting.
• Set the repeat interval of the memory keyer to 1–60
seconds (1 second steps). See page 48 for the keyer
set mode.
r Push [EXIT/SET] twice to return to the the normal
screen.
For your information
When an external keypad or keyboard is
connected, the programmed contents, M1 to M4,
can be transmitted without selecting the memory
keyer screen.
See pages 18, 141, 142 for details.
• The programmed contents, M1 to M4, are
transmitted once when momentarily pushing one
of four switches on the external keypad that is
connected to [MIC] connector on the front panel.
Or, the programmed contents are transmitted
repeatedly when holding down a switch.
• The programmed contents, M1 to M4, are
transmitted once when pushing one of [F1] to
[F4] key of the keyboard that is connected to the
[USB] (A) connector on the front panel.
Or, the programmed contents are transmitted
repeatedly when pushing a key while holding
down the [SHIFT] key.
45
KEYER
TRANSMIT F-3
F-1 F-4
—
M1 M4

• Memory keyer screen

Count up trigger
During transmitting:
Appears while transmitting repeatedly.
−1
F-5
EXIT/SET
Appears while transmitting.
