Traffic engineering

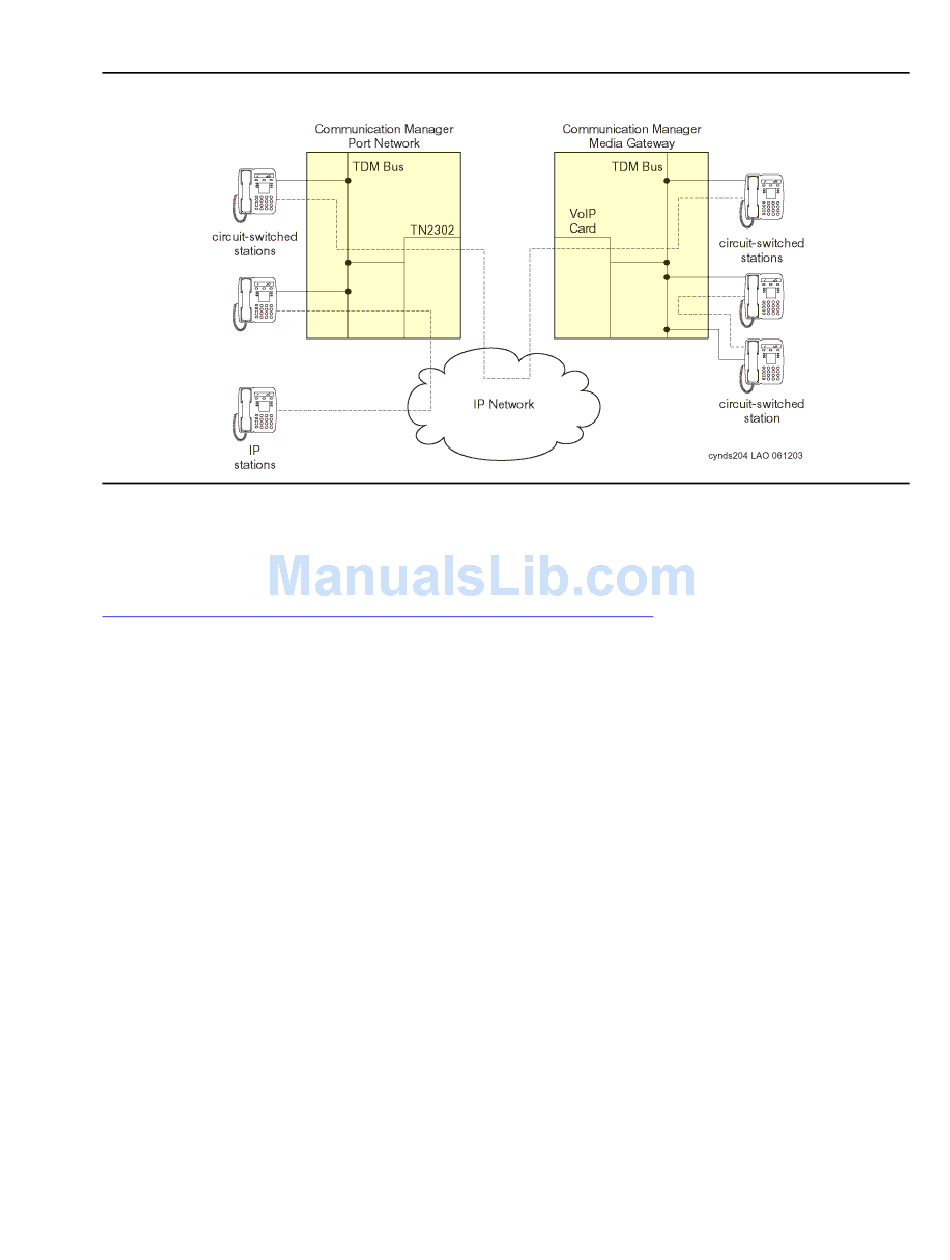

Figure 56: Examples of media streams between Avaya endpoints
Although we stated that calls between two circuit-switched endpoints on different port networks
use an IP connection, the use of a circuit-switched center stage between the two PNs is also
supported. However, using circuit-switched facilities is not viable for interconnecting multiple
Media Gateways, or for interconnecting PNs and Media Gateways.
Figure 56: Examples of media streams between Avaya endpoints
how a call between an IP endpoint and a circuit-switched endpoint, as well as a call between
two circuit-switched endpoints, utilizes media processing and TDM resources. Calls between IP
endpoints are addressed first.
Communication Manager supports three general modes of connectivity between IP endpoints:
IP-TDM-IP connectivity, hairpinning, and shuffling. Hairpinning can take one of two forms: deep
or shallow. These various modes of connectivity are described in more detail below.
IP-TDM-IP connectivity
A call that uses IP-TDM-IP connectivity between two IP endpoints requires one bidirectional
media processing "channel" for each IP endpoint involved, as well as a bidirectional TDM
resource on every PN (or Media Gateway) that is involved in the call. This option most often
applies in systems that use a circuit-switched center stage for interport network connectivity. In
such a system, IP-TDM-IP is required in order for two IP endpoints in network regions not
configured for connectivity (in the sense of the IRCM matrix) to talk to one another.
