Figure 50
Keyboard window
Note
If you are calling another
Tandberg codec you only
need to enter the first tele-
phone number.
64
Operational Quick Guide
Type the desired name for the speed dial location.
6.
Press "EXIT CHANGE" to close the keyboard and return to the current page
7.
with changes. Press "ABORT" to close the keyboard and return to the current
page without changes.

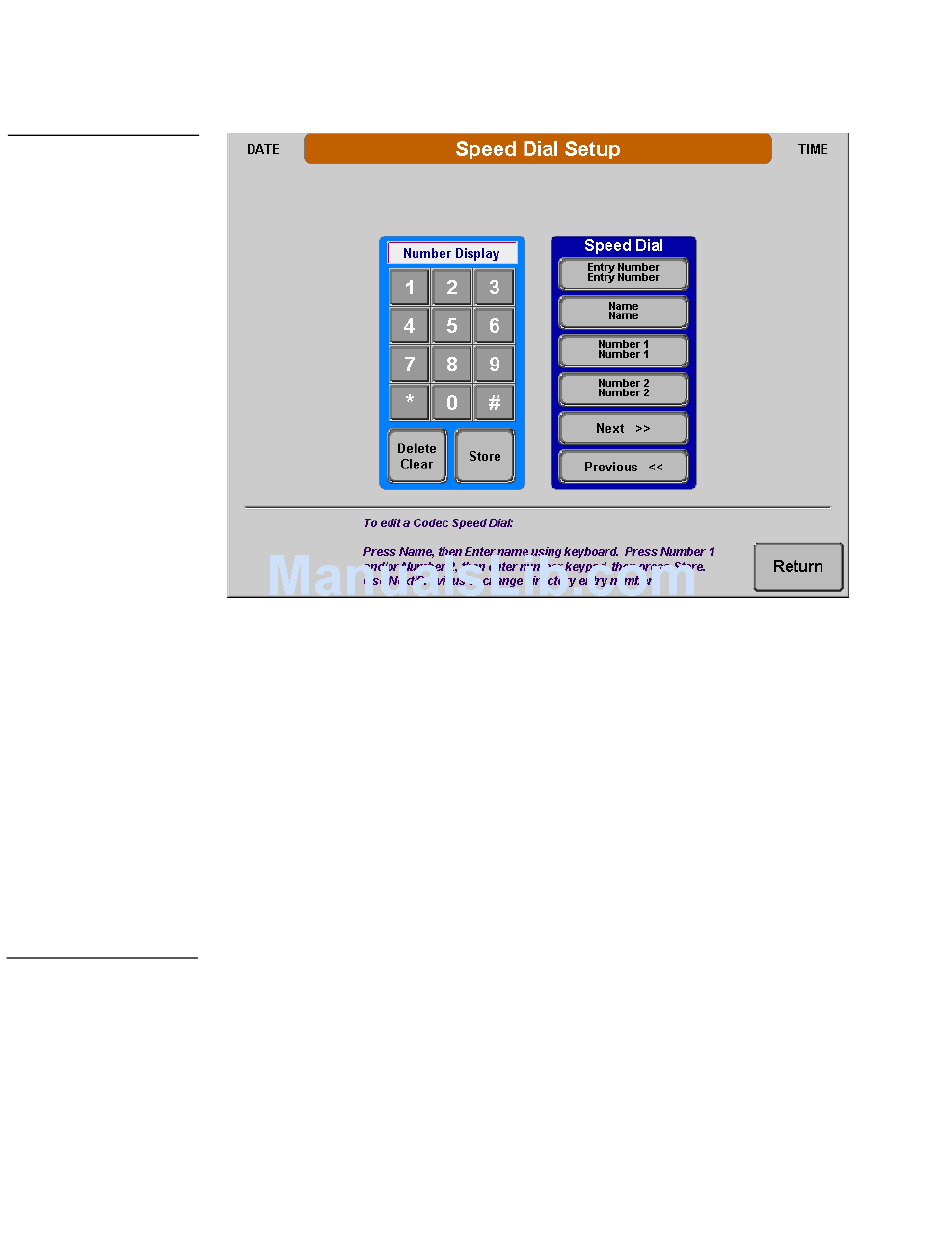

Press the "Number 1" button to program the first speed dial number.
8.
Using the numeric keypad, enter the telephone number (or directory number)
9.
for the first line.
Press "Store" to save the entry. To delete a single character press the
10.
"Delete/Clear" button. To clear an entry press and hold the "Delete/Clear"
button.
Press the preceding steps to add additional speed dial numbers.
11.
Press the "Return" button when completed.
12.
VClink Codec Master Control System
