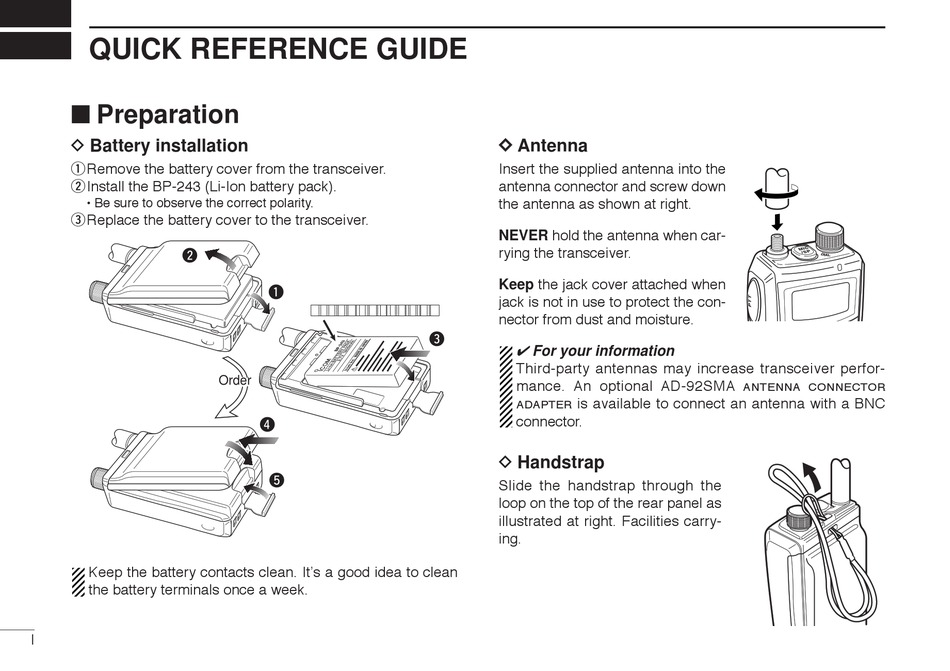

QUICK REFERENCE GUIDE

■ Preparation

D Battery installation
qRemove the battery cover from the transceiver.
wInstall the BP-243 (Li-Ion battery pack).
• Be sure to observe the correct polarity.
eReplace the battery cover to the transceiver.
w
Keep the battery contacts clean. It's a good idea to clean
the battery terminals once a week.
I
q
Facing up this side
Order Order
r
t
D D Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at right.
NEVER hold the antenna when car-
rying the transceiver.
Keep the jack cover attached when
jack is not in use to protect the con-
nector from dust and moisture.
e
✔ For your information
Third-party antennas may increase transceiver perfor-
mance. An optional AD-92SMA
is available to connect an antenna with a BNC
ADAPTER
connector.
D Handstrap
Slide the handstrap through the
loop on the top of the rear panel as
illustrated at right. Facilities carry-
ing.
ANTENNA CONNECTOR
