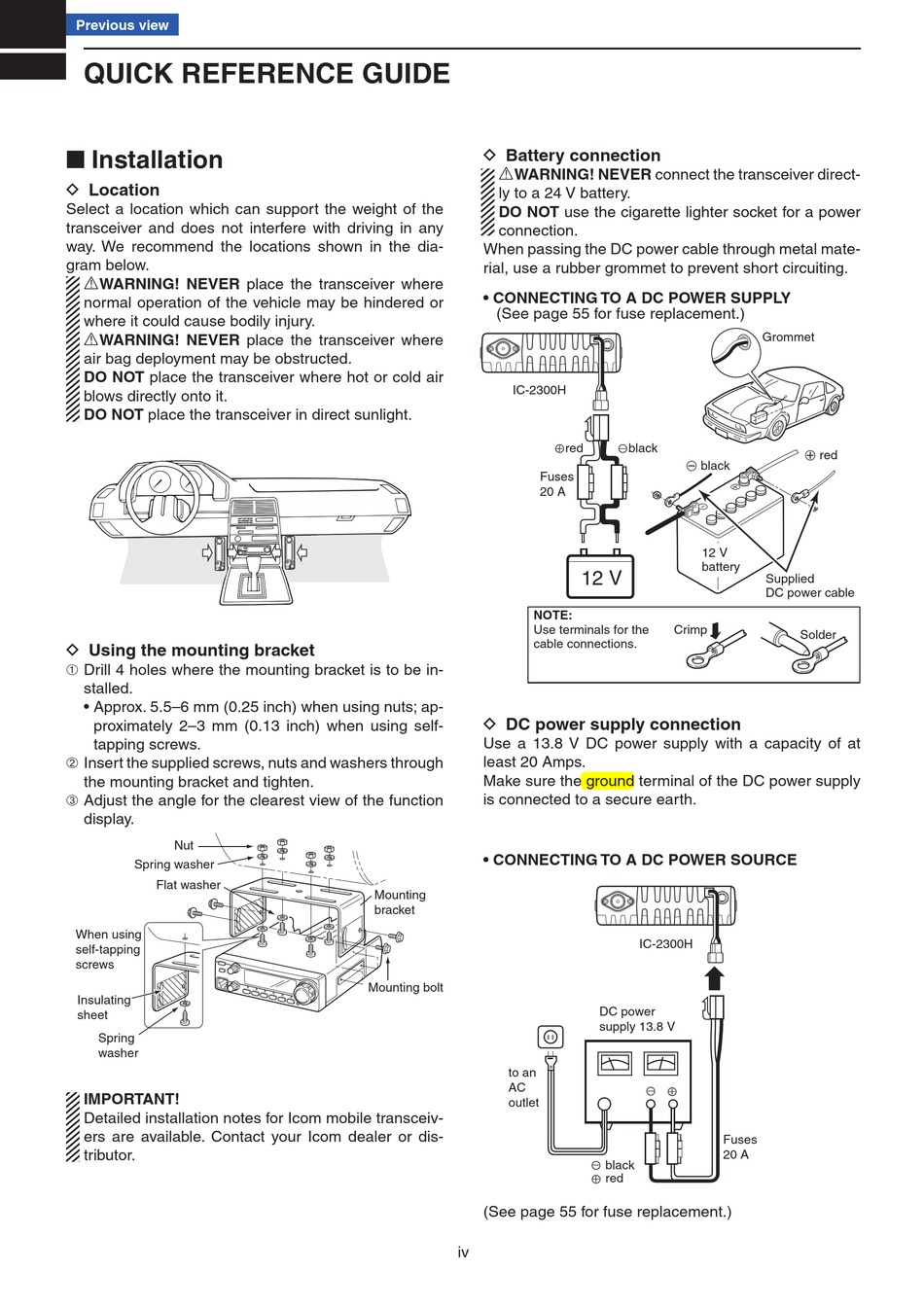

QUICK REFERENCE GUIDE

■ Installation

D Location
Select a location which can support the weight of the
transceiver and does not interfere with driving in any
way. We recommend the locations shown in the dia-
gram below.
RWARNING! NEVER place the transceiver where
normal operation of the vehicle may be hindered or
where it could cause bodily injury.
RWARNING! NEVER place the transceiver where
air bag deployment may be obstructed.
DO NOT place the transceiver where hot or cold air
blows directly onto it.
DO NOT place the transceiver in direct sunlight.
D Using the mounting bracket
➀ Drill 4 holes where the mounting bracket is to be in-
stalled.
• Approx. 5.5–6 mm (0.25 inch) when using nuts; ap-
proximately 2–3 mm (0.13 inch) when using self-
tapping screws.
➁ Insert the supplied screws, nuts and washers through
the mounting bracket and tighten.
➂ Adjust the angle for the clearest view of the function
display.
Nut
Spring washer
Flat washer
When using
self-tapping
screws
Insulating
sheet
Spring
washer
IMPORTANT!
Detailed installation notes for Icom mobile transceiv-
ers are available. Contact your Icom dealer or dis-
tributor.
D Battery connection
RWARNING! NEVER connect the transceiver direct-
ly to a 24 V battery.
DO NOT use the cigarette lighter socket for a power
connection.
When passing the DC power cable through metal mate-
rial, use a rubber grommet to prevent short circuiting.
• CONNECTING TO A DC POWER SUPPLY
(See page 55 for fuse replacement.)
IC-2300H
Fuses
20 A
NOTE:
Use terminals for the
cable connections.
D DC power supply connection
Use a 13.8 V DC power supply with a capacity of at
least 20 Amps.
Make sure the ground terminal of the DC power supply
is connected to a secure earth.
• CONNECTING TO A DC POWER SOURCE
Mounting
bracket
Mounting bolt
to an
AC
outlet
(See page 55 for fuse replacement.)
iv
+ −
red black
_ black
12 V
battery
12 V
Crimp
IC-2300H
DC power
supply 13.8 V
− +
Fuses
20 A
−
black
+
red
Grommet
+ red
Supplied
DC power cable
Solder
