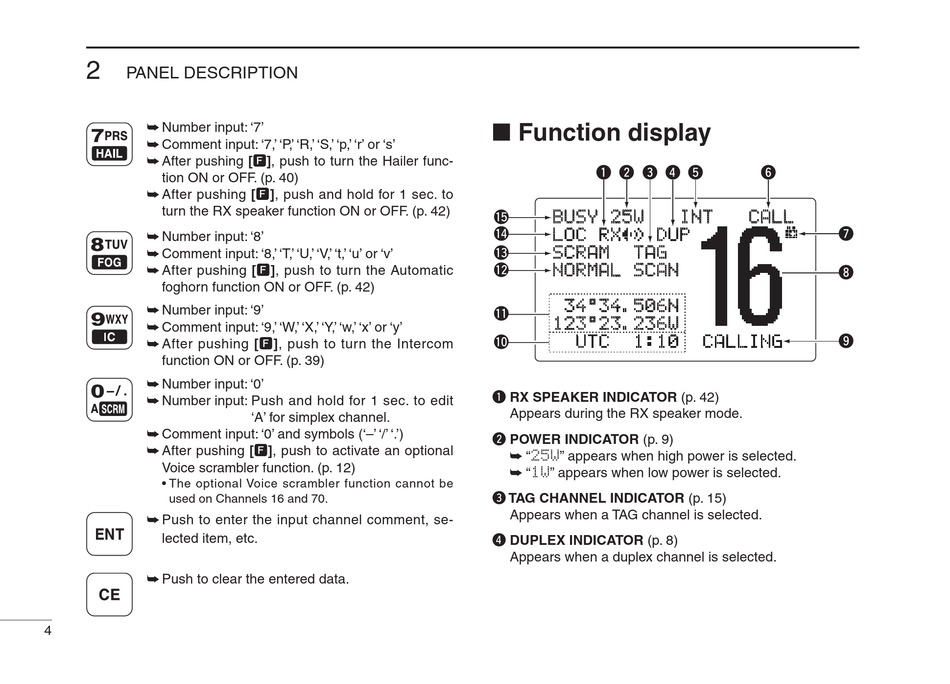

PANEL DESCRIPTION
➥ Number nput: '7'
➥ Comment nput: '7,' 'P,' 'R,' 'S,' 'p,' 'r' or 's'
➥ After pushng [F], push to turn the Haler func-
ton ON or OFF. (p. 40)
➥ After pushng [F], push and hold for 1 sec. to
turn the RX speaker functon ON or OFF. (p. 42)
➥ Number nput: '8'
➥ Comment nput: '8,' 'T,' 'U,' 'V,' 't,' 'u' or 'v'
➥ After pushng [F], push to turn the Automatc
foghorn functon ON or OFF. (p. 42)
➥ Number nput: '9'
➥ Comment nput: '9,' 'W,' 'X,' 'Y,' 'w,' 'x' or 'y'
➥ After pushng [F], push to turn the Intercom
functon ON or OFF. (p. 39)
➥ Number nput: '0'
➥ Number nput: Push and hold for 1 sec. to edt
➥ Comment nput: '0' and symbols ('–' '/' '.')
➥ After pushng [F], push to actvate an optonal
Voce scrambler functon. (p. 12)
• The optonal Voce scrambler functon cannot be
used on Channels 16 and 70.
➥ Push to enter the nput channel comment, se-
lected tem, etc.
➥ Push to clear the entered data.
4
'A' for smplex channel.

■ Function display

q w e r t
!5 BUSY 25W
!4
LOC RX DUP
!3 SCRAM TAG
!2
NORMAL SCAN
-34°34.506N
!1
123°23.236W
!0 UTC 1:10
q RX SPEAKER INDICATOR (p. 42)
Appears durng the RX speaker mode.
w POWER INDICATOR (p. 9)
➥ "25W" appears when hgh power s selected.
➥ "1W" appears when low power s selected.
e TAG CHANNEL INDICATOR (p. 15)
Appears when a TAG channel s selected.
r DUPLEX INDICATOR (p. 8)
Appears when a duplex channel s selected.
y
INT CALL
u
i
o
CALLING
