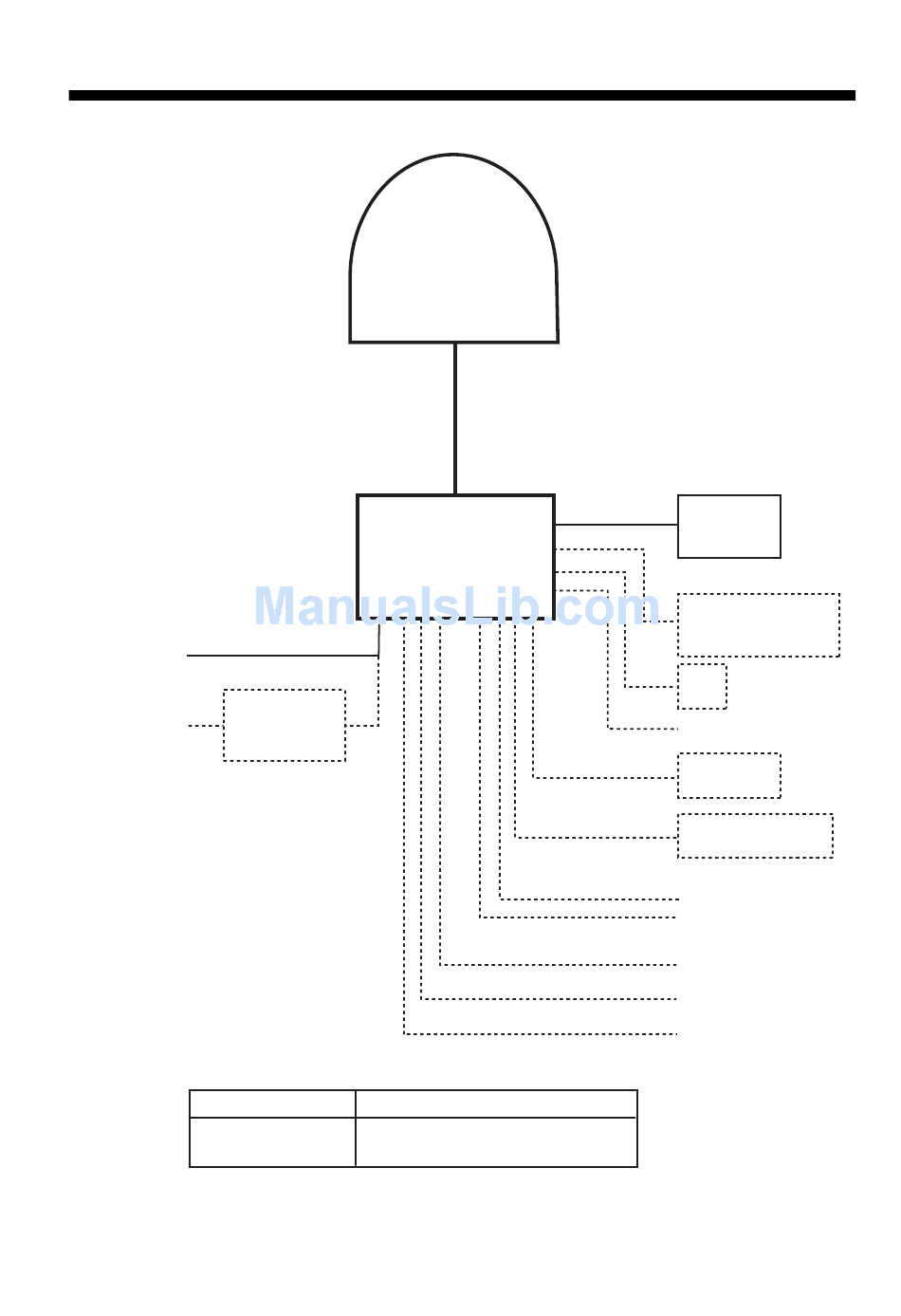

SYSTEM CONFIGURATION
12-24 VDC
AC-DC
100-115/
Power supply
200-230 VAC
PR-240
Solid line: Basic configuration
Environmental Category
Antenna unit
Communication unit,
IP handset, etc.
Antenna unit
FB-1500 (FELCOM 500)
FB-1250 (FELCOM 250)
Communication unit
FB-2000
NMEA
Normal Close
RS-232C
To be installed in an exposed area
To be installed in a protecded area
ii
LAN(4)
IP Handset
FB-8000
Incoming indicator
FB-3000
TEL(4)
PC
Network Equipment
G3 facsimile
Analog telephone
Analog telephone
Analog telephone
Navigation equipment
External alarm
PC or Router
