7.5
Braking Module
7.5.1
"Braking Module" function module
Features
● Braking the motor without any possibility of regenerating into the line supply (e.g. power
● Fast DC link discharge (booksize design)
● The Braking Module terminals are controlled via the drive object infeed (booksize and
● Controlling up to 8 Braking Modules in a parallel circuit configuration
● Acknowledging faults at the Braking Module
Description
The "Braking Module" function module can be activated in the infeed drive object. The
appropriate binectors must be interconnected via digital inputs/outputs (e.g.: Control Unit,
TM31 or TB30) with the Braking Module.
In order to obtain the maximum power of a Braking Module, the Vdc_max control must be
disabled.

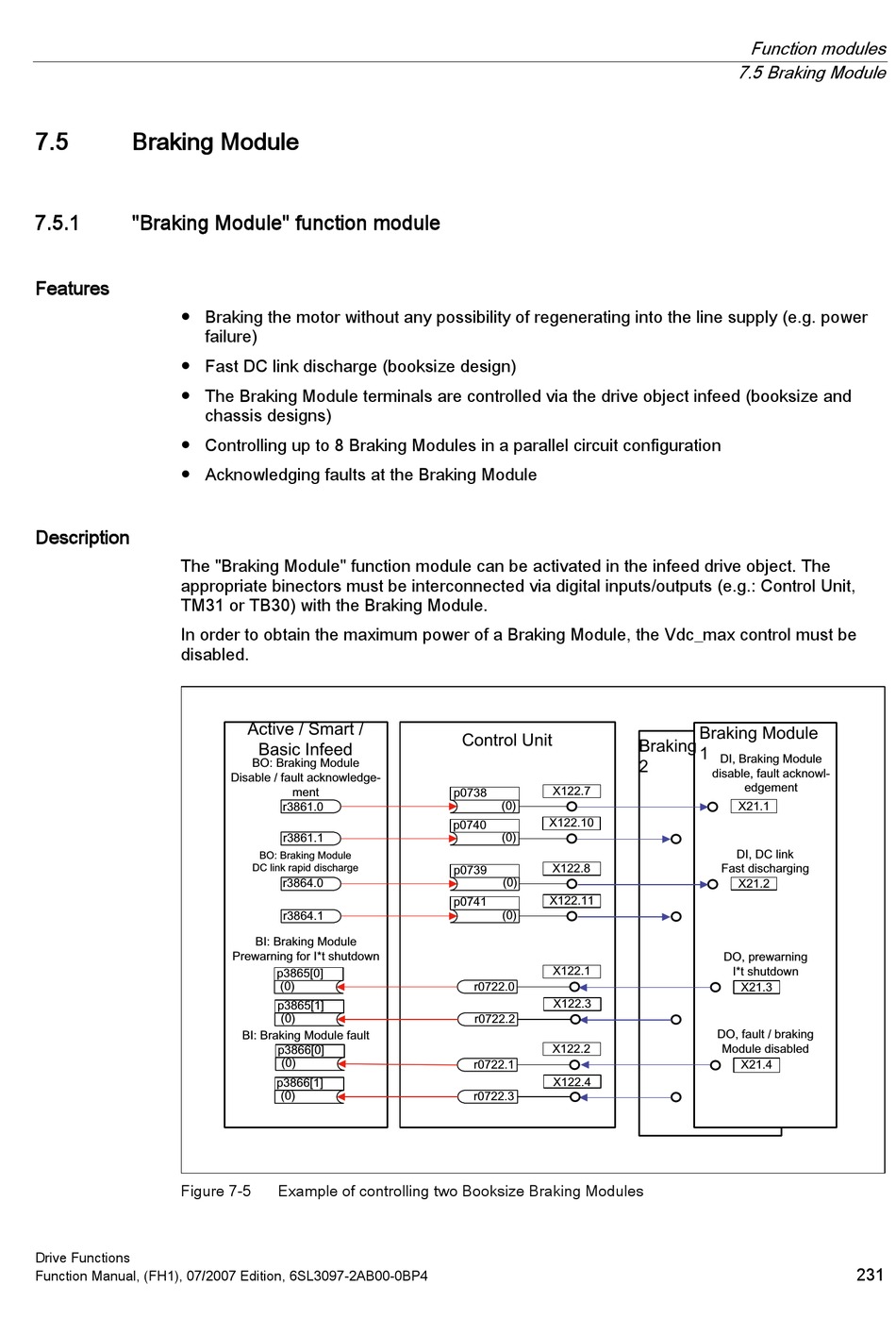

Figure 7-5
Drive Functions
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
failure)
chassis designs)
Example of controlling two Booksize Braking Modules
Function modules
7.5 Braking Module
231
