Duerkopp Adler 558 Operating Instructions Manual

Duerkopp Adler 558 Operating Instructions Manual

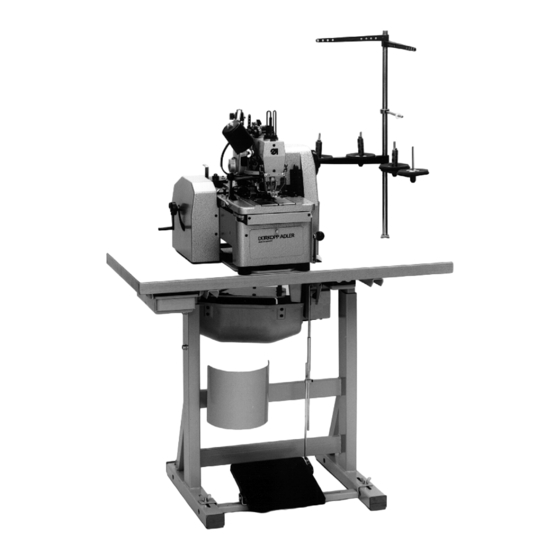

Double chain stitch buttonhole machine
Hide thumbs Also See for 558:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Contents
Preface and General Safety Notes
Part 1: Operating Instructions Cl. 558
1.
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
Short Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Sub-classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4
Sewing Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4.1
1.4.2
1.5
2.
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1
Removal and Placement of the Clamp Plates . . . . . . . . . . . . . . .
2.2
Turning On - Quick Stop - Restart . . . . . . . . . . . . . . . . . . . . . .
2.3
End Position of the Sewing Machine . . . . . . . . . . . . . . . . . . . .
2.4
Needles, Threads and Gimps . . . . . . . . . . . . . . . . . . . . . . . .
2.5
Threading of the Underthread (Hook Thread) . . . . . . . . . . . . . . .
2.6
Threading the Gimps . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.7
2.8
Thread Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.9
Sewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.10
Blocking the Clamp Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.11
Buttonhole Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.12
Cutting Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.13
Cutting Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.14
Cutting Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.15
Spreading of the Material . . . . . . . . . . . . . . . . . . . . . . . . . .
2.16
Stitch Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.17
Seam Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.18
Buttonhole Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.19
3.
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3
Oiling Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Home
. . . . . . . . . . . . . .
Page:
5
5
6
7
8
. . .
9
11
13
15
15
19
23
24
27
31
37
41
45
47
49
53
57
58
59
61
63
65
67
70
70
71
72
