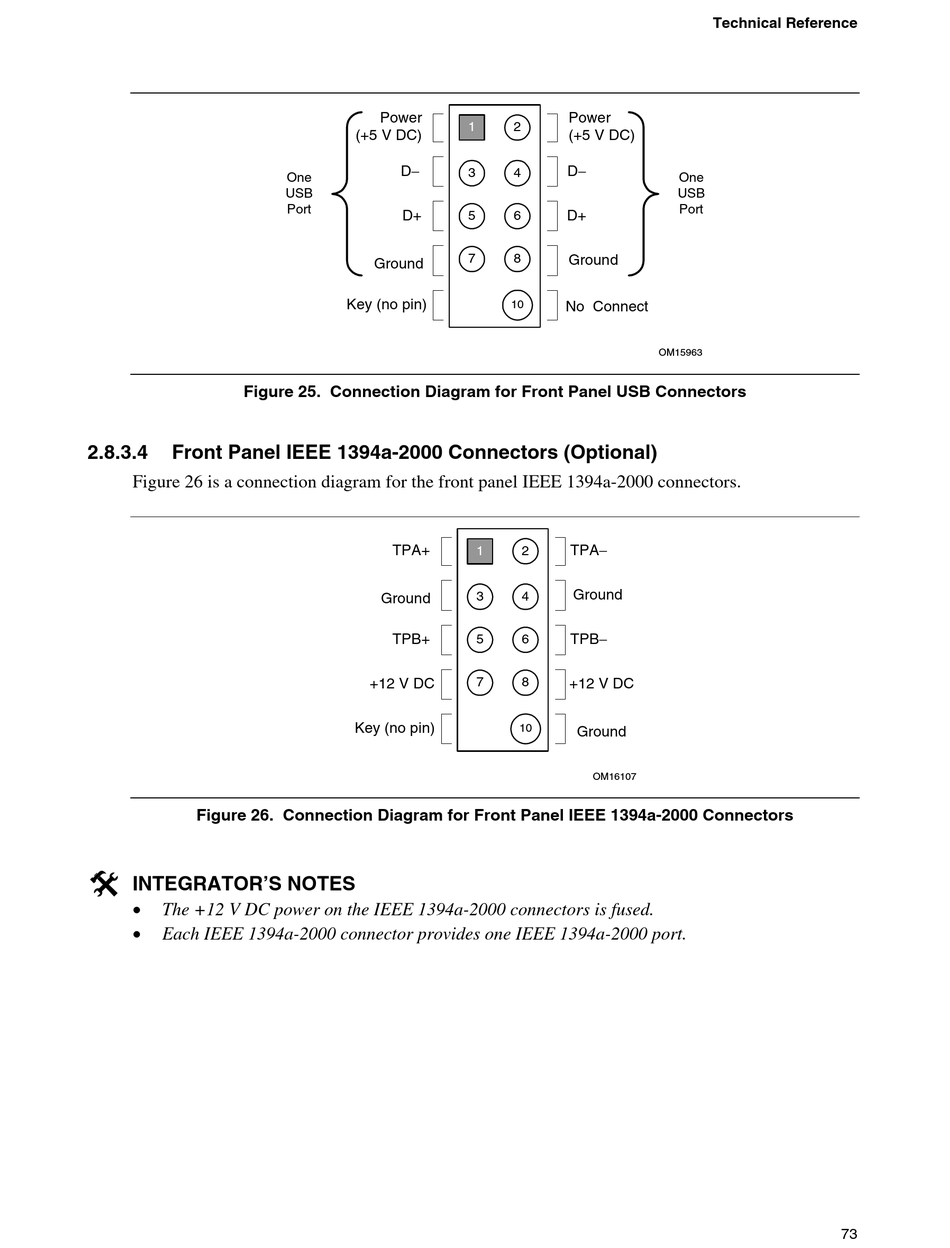

Figure 25. Connection Diagram for Front Panel USB Connectors
2.8.3.4 Front Panel IEEE 1394a-2000 Connectors (Optional)
Figure 26 is a connection diagram for the front panel IEEE 1394a-2000 connectors.
Figure 26. Connection Diagram for Front Panel IEEE 1394a-2000 Connectors
#
INTEGRATOR'S NOTES
•
The +12 V DC power on the IEEE 1394a-2000 connectors is fused.
•
Each IEEE 1394a-2000 connector provides one IEEE 1394a-2000 port.
Power
(+5 V DC)
D−
One
USB
Port
D+
Ground
Key (no pin)
TPA+
Ground
TPB+
+12 V DC
Key (no pin)
Power
1 2
(+5 V DC)
D−
3 4
D+
5 6
7 8
Ground
10
No Connect
TPA−
1 2
Ground
3 4
5 6 TPB−
7 8
+12 V DC
10
Ground
OM16107
Technical Reference
One
USB
Port
OM15963
