Intel Desktop Board D865PERL Technical Product Specification

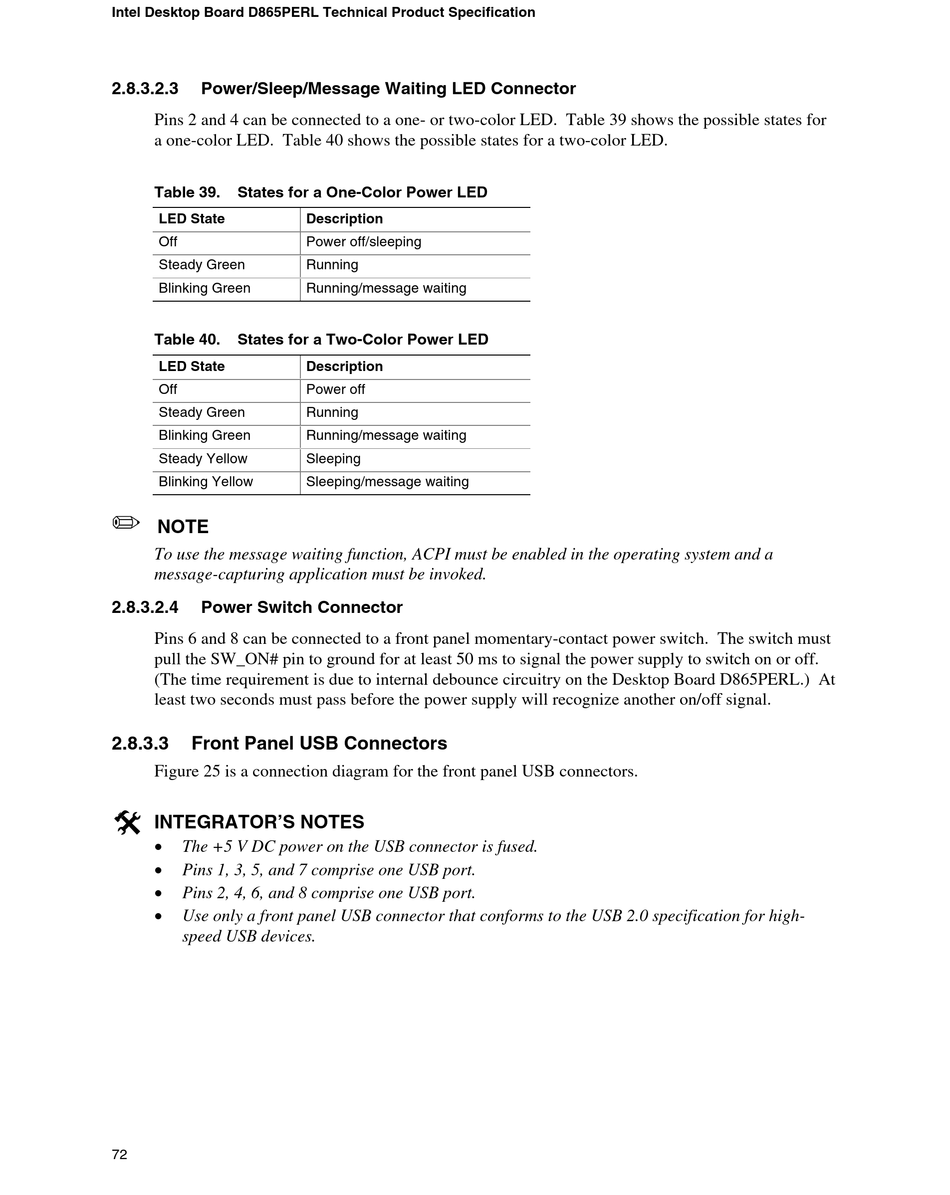

2.8.3.2.3 Power/Sleep/Message Waiting LED Connector
Pins 2 and 4 can be connected to a one- or two-color LED. Table 39 shows the possible states for
a one-color LED. Table 40 shows the possible states for a two-color LED.
Table 39.

States for a One-Color Power LED

LED State
Off
Steady Green
Blinking Green
Table 40.

States for a Two-Color Power LED

LED State
Off
Steady Green
Blinking Green
Steady Yellow
Blinking Yellow
✏
NOTE
To use the message waiting function, ACPI must be enabled in the operating system and a
message-capturing application must be invoked.
2.8.3.2.4 Power Switch Connector
Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must
pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off.
(The time requirement is due to internal debounce circuitry on the Desktop Board D865PERL.) At
least two seconds must pass before the power supply will recognize another on/off signal.
2.8.3.3 Front Panel USB Connectors
Figure 25 is a connection diagram for the front panel USB connectors.
#
INTEGRATOR'S NOTES
•
The +5 V DC power on the USB connector is fused.
•
Pins 1, 3, 5, and 7 comprise one USB port.
•
Pins 2, 4, 6, and 8 comprise one USB port.
•
Use only a front panel USB connector that conforms to the USB 2.0 specification for high-
speed USB devices.
72
Description
Power off/sleeping
Running
Running/message waiting
Description
Power off
Running
Running/message waiting
Sleeping
Sleeping/message waiting
