JUNOSe 11.1.x Policy Management Configuration Guide

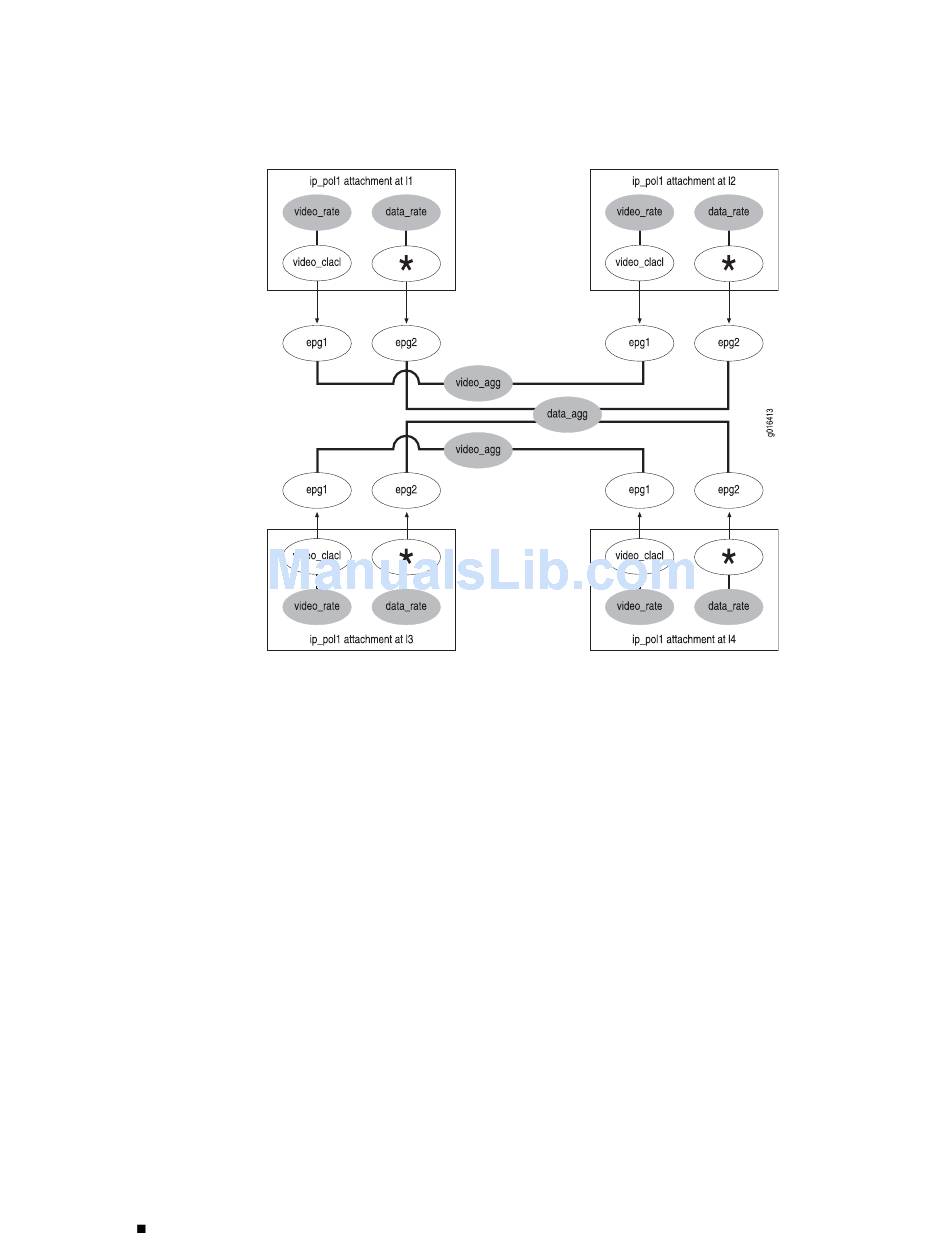

Figure 13: Aggregate Rate Limit for Nonvoice Traffic Configuration

1.
2.
146
Example: Aggregate Rate Limit for All Nonvoice Traffic Hierarchical Policy Configuration
Create a rate limit that can be shared across all video streams. Create an external
parent group to hold this rate limit.
host1(config)#rate-limit-profile VIDEO_AGG two-rate hierarchical
host1(config-rate-limit-profile)#committed-rate 1500000
host1(config-rate-limit-profile)#committed-action transmit final
host1(config-rate-limit-profile)#exit
host1(config)#parent-group EPG1
host1(config-parent-group)#rate-limit-profile VIDEO_AGG
host1(config-parent-group)#exit
Create a policy list to attach to all IP sessions.
host1(config)#rate-limit-profile VIDEO_RATE two-rate hierarchical
host1(config-rate-limit-profile)#committed-rate 1000000
host1(config-rate-limit-profile)#committed-action transmit conditional
host1(config-rate-limit-profile)#exit
host1(config)#rate-limit-profile DATA_RATE two-rate hierarchical
host1(config-rate-limit-profile)#committed-rate 5000000
host1(config-rate-limit-profile)#committed-action transmit conditional
host1(config-rate-limit-profile)#exit
host1(config)#policy-parameter A hierarchical
host1(config-policy-parameter)#exit
host1(config)#policy-parameter B hierarchical
host1(config-policy-parameter)#exit
host1(config)#ip policy-list IP_POL1
