JUNOSe 11.1.x Policy Management Configuration Guide

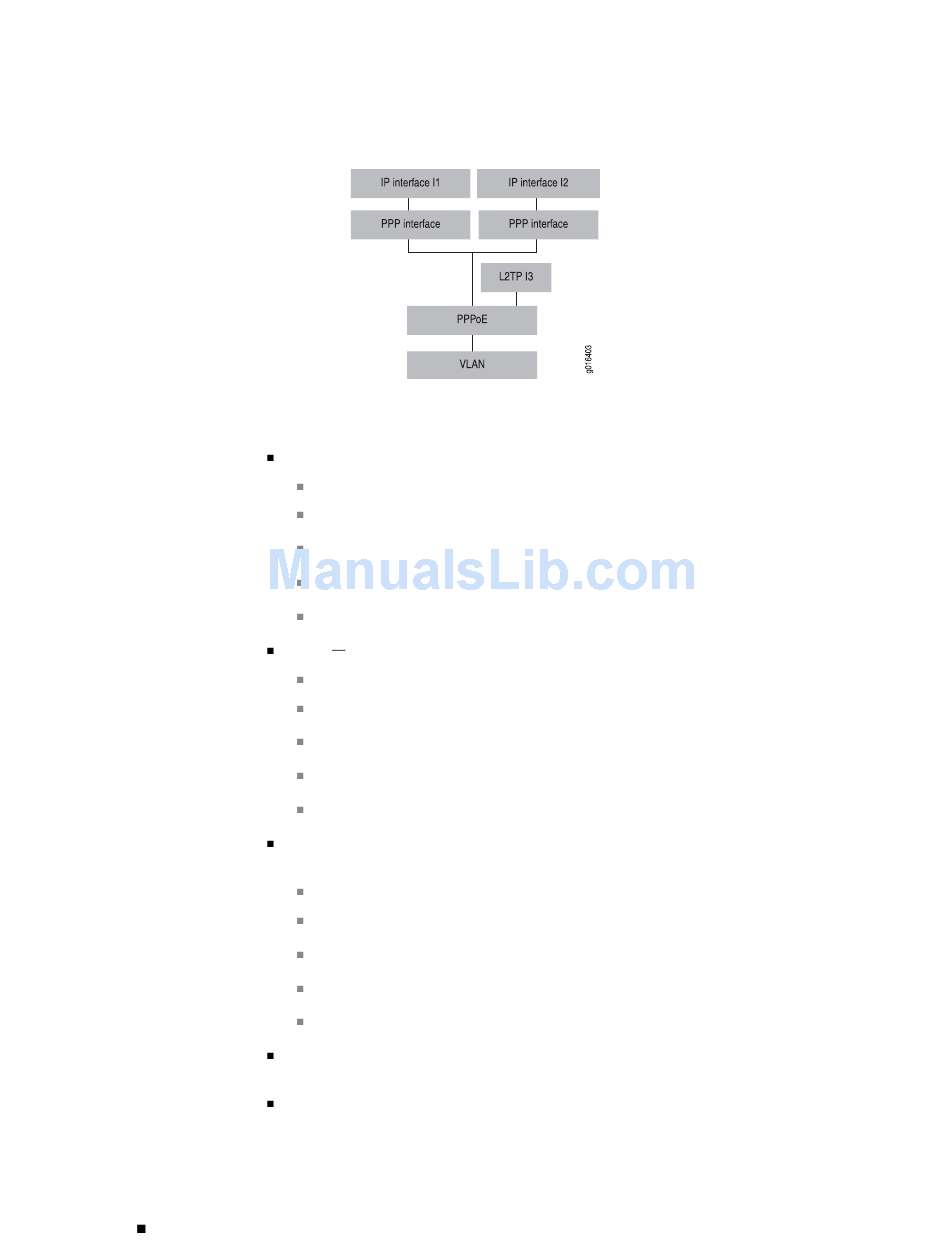

Figure 10: Interface Stack for Wholesale L2TP Mode
To use this example, you must configure the following:
142
Example: Wholesale L2TP Model Hierarchical Policy Configuration
At interfaces I1 and I2:
IP_RATE, Committed Rate:1 Mbps
Peak Rate: 11 Mbps
Committed Action: transmit unconditional
Conformed Action: transmit conditional
Exceeded Action: drop
At I3 L2TP_RATE:
Committed Rate: 10 Mbps
Peak Rate: 0 Mbps
Committed Action: transmit unconditional
Conformed Action: drop
Exceeded Action: drop
Policers at I1, I2, and I3 feed into a single policer that has the following
configuration:
VLAN_RATE, Committed Rate: 12 Mbps
Peak Rate: 0 Mbps
Committed Action: transmit final
Conformed Action: drop
Exceeded Action: drop
IP policy USER_POL1 is attached as input to I1, IP policy USER_POL2 is attached
as input to I2, and L2TP policy USER_POL3 is attached as input to I3.
Policer instance VLAN_RATE is shared across all three instances of EPG1.
