Hardware Installations and Upgrades
3.
If not replacing with another hard drive, re-install the plastic air baffle into the empty drive carrier. Secure
the plastic air baffle to the drive carrier using the four screws previously attached to the hard drive.
/
NOTE
Plastic air baffles are necessary in all empty drive carriers to ensure proper airflow within the chassis.
4.
With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever
upwards to latch the drive carrier into position.
40

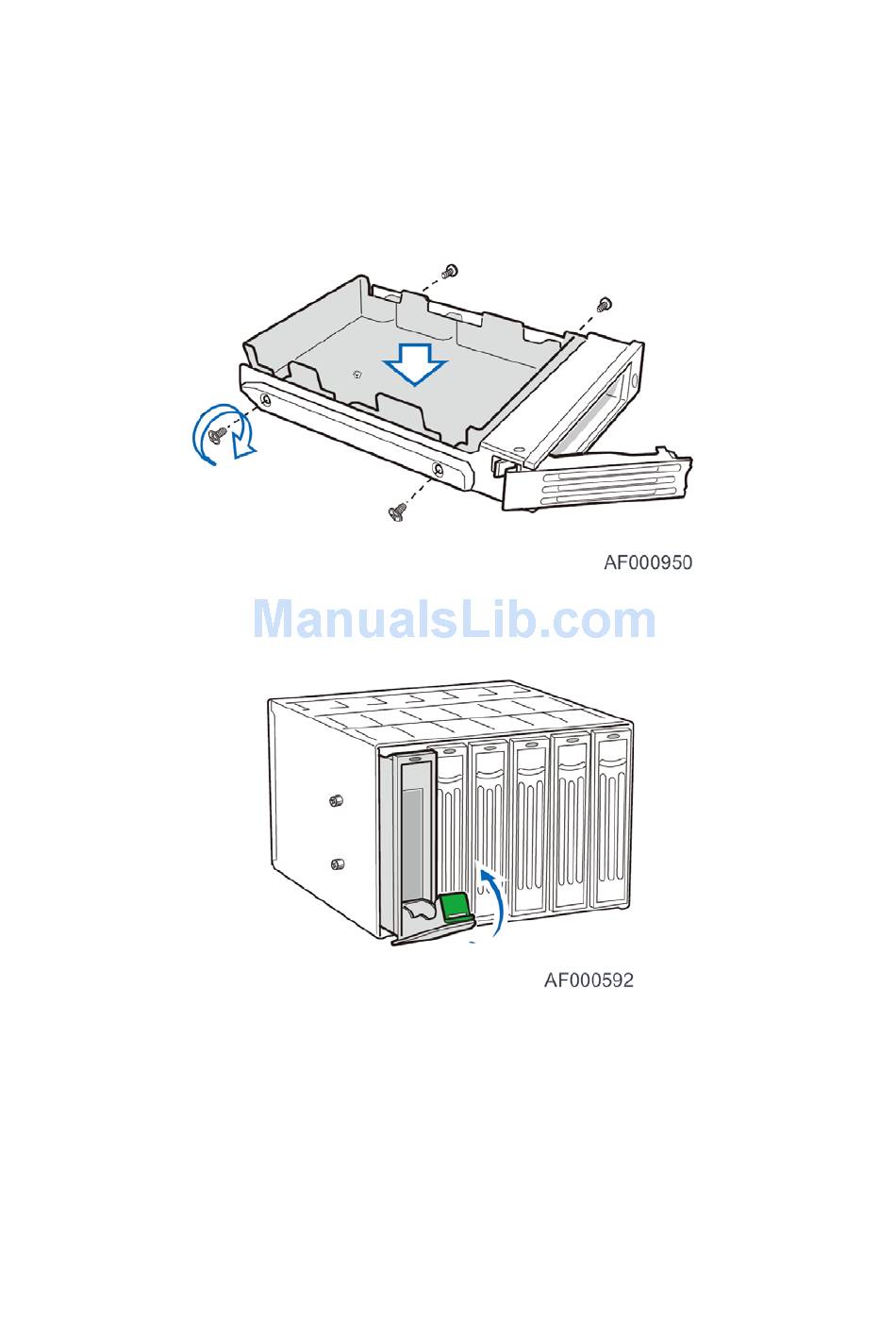

Figure 43. Securing Plastic Air Baffle in Drive Carrier
Figure 44. Inserting Drive Carrier into Hot Swap Cage
Intel® Server Chassis SC5600 Service Guide
